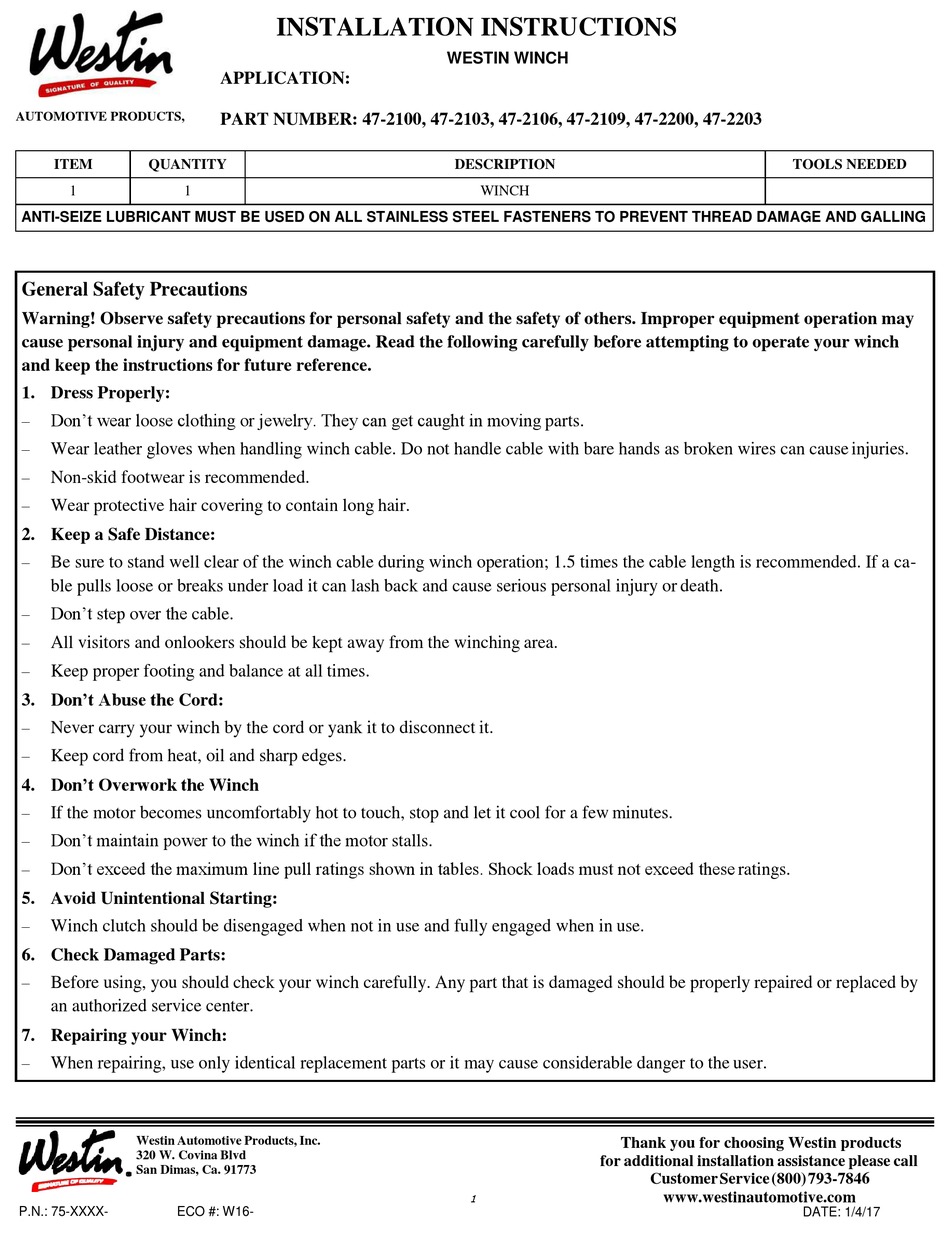

Westin 47-2100 Installation Instructions Manual

AUTOMOTIVE PRODUCTS,
ITEM QUANTITY
1 1
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
General Safety Precautions
Warning! Observe safety precautions for personal safety and the safety of others. Improper equipment operation may
cause personal injury and equipment damage. Read the following carefully before attempting to operate your winch
and keep the instructions for future reference.
1. Dress Properly:

Don't wear loose clothing or jewelry. They can get caught in moving parts.

Wear leather gloves when handling winch cable. Do not handle cable with bare hands as broken wires can cause injuries.

Non-skid footwear is recommended.

Wear protective hair covering to contain long hair.
2. Keep a Safe Distance:

Be sure to stand well clear of the winch cable during winch operation; 1.5 times the cable length is recommended. If a ca-
ble pulls loose or breaks under load it can lash back and cause serious personal injury or death.
 Don't step over the cable.

All visitors and onlookers should be kept away from the winching area.

Keep proper footing and balance at all times.
3. Don't Abuse the Cord:

Never carry your winch by the cord or yank it to disconnect it.

Keep cord from heat, oil and sharp edges.
4. Don't Overwork the Winch

If the motor becomes uncomfortably hot to touch, stop and let it cool for a few minutes.
 Don't maintain power to the winch if the motor stalls.

Don't exceed the maximum line pull ratings shown in tables. Shock loads must not exceed these ratings.
5. Avoid Unintentional Starting:

Winch clutch should be disengaged when not in use and fully engaged when in use.
6. Check Damaged Parts:

Before using, you should check your winch carefully. Any part that is damaged should be properly repaired or replaced by
an authorized service center.
7. Repairing your Winch:

When repairing, use only identical replacement parts or it may cause considerable danger to the user.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-XXXX- ECO #: W16-
XXXX
RevX
INSTALLATION INSTRUCTIONS
APPLICATION:
PART NUMBER: 47-2100, 47-2103, 47-2106, 47-2109, 47-2200, 47-2203

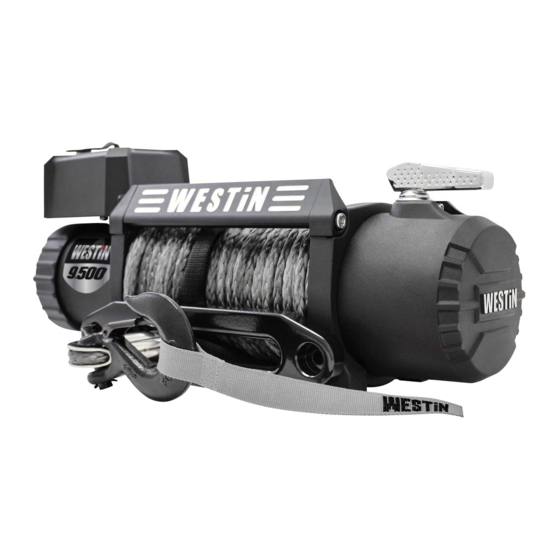

WESTIN WINCH
DESCRIPTION
WINCH
Thank you for choosing Westin products
for additional installation assistance please call
1
TOOLS NEEDED
Customer Service (800) 793-7846
www.westinautomotive.com
DATE: 1/4/17
