Technische Alternative UVR67 Quick Manual

Hide thumbs

Technische Alternative RT GmbH

This booklet explains the basic operation of the UVR67 controller. More detailed information on op-

eration, programs and installation can be found in the enclosed booklets or on www.ta.co.at.

11111111111111111111111

Basic operation

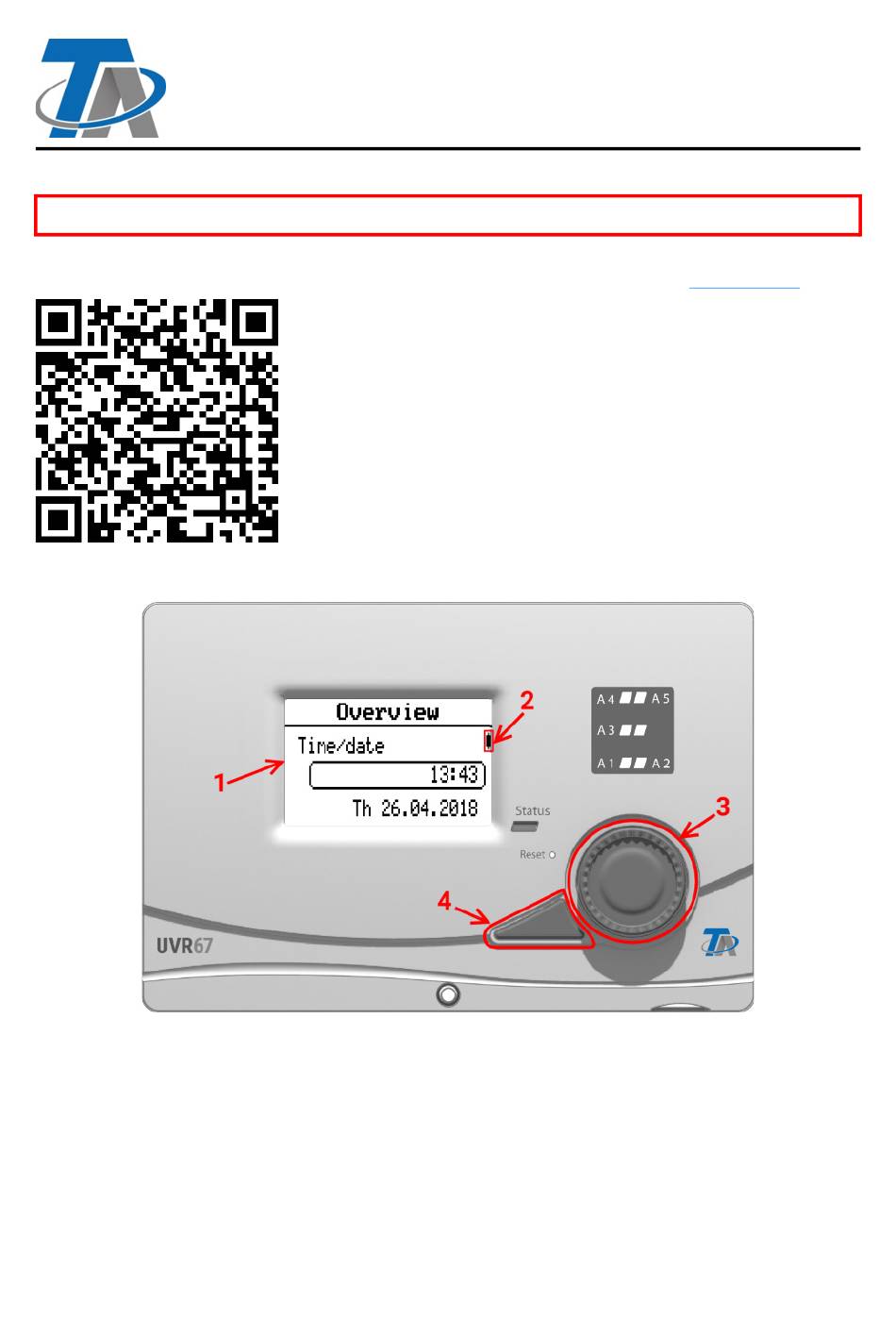

The display

(1)

on the front shows information about sensor values, menu position, parameterisa-

tion, etc.

The bar

(2)

on the right of the display moves along with the vertical position in the currently open

menu. (Scroll bar)

The dial

(3)

to the right of the display is used for navigation. A clockwise rotation moves you down

the menu; anti-clockwise moves you up.

Pressing the dial

(3)

(= Enter button)

Pressing the button

Pressing "Enter"

(3)

play.

A-3872 Amaliendorf, Langestraße 124

Tel +43 (0)2862 53635

Please read before commissioning!

Scan this QR code for a link to a video tutorial on our official YouTube

channel! (German only)

opens the selected menu/allows you to change the selected value/parameter.

(4)

to the left of the dial exits a menu. (= Back button)

or "Back"

(4)

relates to the value/menu item with a border around it on the dis-

mail@ta.co.at

UVR67

Manual Version

1.05

Table of Contents

Need help?

Do you have a question about the UVR67 and is the answer not in the manual?

Questions and answers

Summary of Contents for Technische Alternative UVR67

Page 1 Tel +43 (0)2862 53635 mail@ta.co.at 1.05 Please read before commissioning! This booklet explains the basic operation of the UVR67 controller. More detailed information on op- eration, programs and installation can be found in the enclosed booklets or on www.ta.co.at. 11111111111111111111111 11111111111111111111111...
Page 2 User levels and password entry The majority of all setting options are password-protected to prevent unauthorised persons from op- erating the controller. There are three user levels: • User • Can change time and date information, and otherwise only view values. •...
Page 3 Press the dial to open the entry again and select 4. Press the dial to confirm. Once the full password has been entered, the entire entry still needs to be confirmed. Turn the dial clockwise until there is a bold border around the tick.
Page 4 In this menu you need to look out for the bold border again. In the ex- ample there is a border around Program. The number 0 below it is the set value. If the program is to be changed, press the dial in the usual way while the bold border is shown around "Program".
