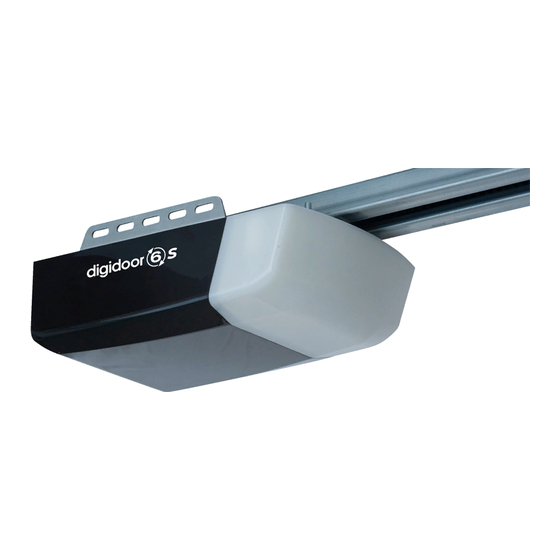

Summary of Contents for Hydro DiGi Digidoor 6 S

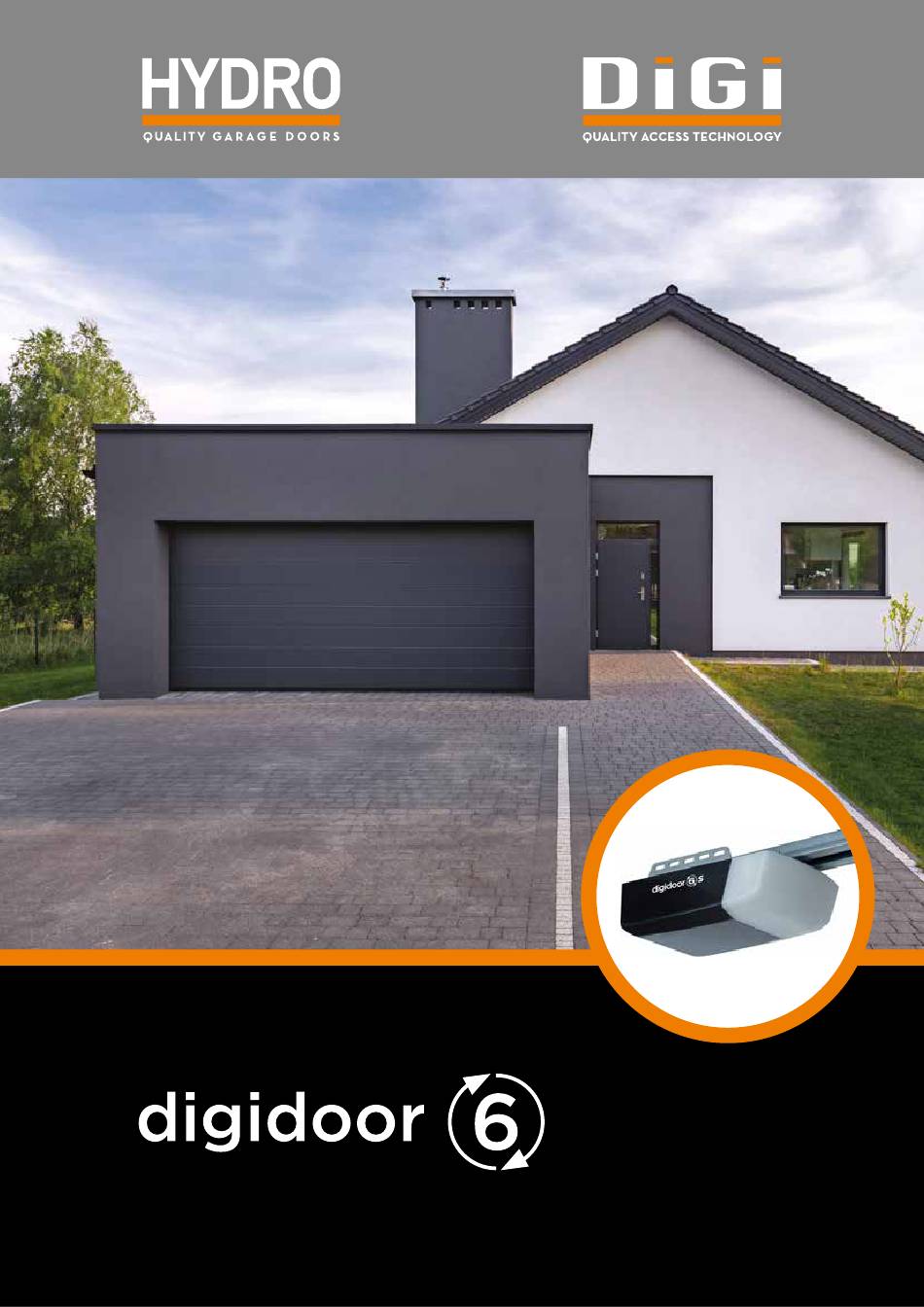

- Page 1 GARAGE DOOR OPENER Installation Instructions and User Guide...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY RECOMMENDATIONS PRODUCT DESCRIPTION & FEATURES PRE-INSTALLATION RECOMMENDATIONS INSTALLATION (WALL BRACKET & DOOR BRACKET) INSTALLATION (STEEL TRACK) INSTALLATION (SECTIONAL STEEL TRACK ASSEMBLY) BATTERY BACKUP ASSEMBLY (OPTIONAL) PROGRAMMING INSTRUCTIONS 07 - 08 SAFETY BEAM CONNECTION (OPTIONAL) OTHER TERMINALS INTRODUCTION & APPLICATION MANUAL DISENGAGEMENT MAINTENANCE TECHNICAL SPECIFICATIONS... -
Page 3: Important Safety Recommendations
IMPORTANT SAFETY RECOMMENDATIONS WARNING: FAILURE TO COMPLY WITH THE FOLLOWING SAFETY RECOMMENDATIONS MAY RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE. 1. PLEASE READ CAREFULLY AND ADHERE TO ALL SAFETY AND INSTALLATION RECOMMENDATIONS. 2. The operator is designed and manufactured to meet local regulations. The installer must be familiar with local regulations required in respect of the installation of the operator. -
Page 4: Product Description & Features
PRODUCT DESCRIPTION & FEATURES PRODUCT DESCRIPTION & FEATURES 1. Automatic safety reverse Automatic stop / automatic reverse are controlled by our circuit board software. protect your children, pets or property. 1. Automatic safety reverse 2. Soft start / Soft stop Automatic stop/automatic reverse is controlled by our circuit board software. This is to protect Ramping speed up and down at the start and end of each cycle reduces stress on your children, pets or property. -
Page 5: Pre-Installation Recommendations
Page 5 PRE-INSTALLATION RECOMMENDATIONS Page 5 PRE-INSTALLATION RECOMMENDATIONS 1. Garage door must be able to be lifted and closed easily by hand. A well-balanced and PRE-INSTALLATION RECOMMENDATIONS sprung door is important for proper installation. 1. Garage door must be able to be lifted and closed easily by hand. A well balanced & sprung door is important for proper installation. 2. The garage door operator can’t compensate for a badly installed garage door, and should 1. -
Page 6: Installation (Steel Track)
Installation (Steel Track) Page 6 Page 6 Installation (Steel Track) Installation (Steel Track) INSTALLATION (STEEL TRACK) Figure 3 Figure 3 Figure 3 Figure 3 STEP1 (Figure.3) Attach the operator head to the steel track. Assemble the 2 ‘U’ hanging brackets STEP1 (Fig.3) Attach the operator head to the steel track. Assembly the 2 ' U' Hanging brackets STEP1 (Fig.3) STEP1 (Fig.3) with the 6mm nuts supplied. -
Page 7: Installation (Sectional Steel Track Assembly)
Page 7 Sectional Steel Track Assembly INSTALLATION (SECTIONAL STEEL TRACK ASSEMBLY) Page 7 Page 7 Sectional Steel Track Assembly Sectional Steel Track Assembly 2 Parts Steel Track Page 7 2 Parts Steel Track 2 Parts Steel Track 2 Parts Steel Track Sectional Steel Track Assembly 2 Parts Steel Track A:1500 mm... -
Page 8: Battery Backup Assembly (Optional)
BATTERY BACKUP ASSEMBLY (OPTIONAL) Page 8 Page 8 Battery backup Assembly (optional) Option 1 - Top Fixed Battery backup Assembly (optional) Option 1 - Top Fixed STEP1 Option 1 - Top Fixed STEP1 Assemble the battery and battery bracket as in Figure 11. Fix with screws supplied. STEP1 Assemble the battery & battery bracket as in Fig.11. Fix with screws supplied. STEP2 Assemble the battery &... -
Page 9: Programming Instructions
PROGRAMMING INSTRUCTIONS PROGRAMMING INSTRUCTIONS 1. PROGRAMMING OPEN AND CLOSED LIMITS 1. PROGRAMMING OPEN AND CLOSED LIMITS a) Press and hold the SET button until 1 appears on the display, then release the button. a) Press and hold the SET button until 1 appears on the The door operator is now in Programming Mode. - Page 10 Page 10 4. OBSTRUCTION FORCE ADJUSTMENT 4. OBSTRUCTION FORCE ADJUSTMENT NOTE: The obstruction adjustment is set automatically during programming. Usually, no adjustment is necessary. NOTE: The obstruction adjustment is set automatically during If a change is needed: programming. Normally no adjustment is necessary. a) Press and hold the SET button until 3 appears on the If a change is needed: a) Press and hold the SET button until 3 appears on the display, then release the button.
-
Page 11: Safety Beam Connection (Optional)
Page 11 SAFETY BEAM CONNECTION (OPTIONAL) Safety beam connection (optional) – Fig.16 Remark: Important notes: 1. Flash (Caution Light) should be less than 25W. 1. Flash (Caution Light) should be less than 25W. 2. PB (External Push Button) should be 'N.O'. 2. PB (External Push Button) should be ‘N O’... -
Page 12: Manual Disengagement
Page 12 MANUAL DISENGAGEMENT Manual disengagement The operator is equipped with a manual release cord to disengage the shuttle and move the door by hand while holding the handle down (Figure 19). Pull on the handle to disengage the The operator is equipped with a manual release cord to disengage shuttle and move door by shuttle. To re-engage the door, simply run operator in automatic mode or move the door by hand while holding the handle down (Fig 19). -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Item Digidoor 6 S Input voltage 220 - 240V / 110 - 127V, 50–60 Hz Max. pull force 600 N Max. door area 12m2 Max. door weight (Balanced) 180 kg Max. door height 2400 - 3500mm Drive Chain / Belt Opening / Closing Speed 160mm / Second Drive mechanism Chain / Belt L.E.D 24V / 15pcs LED lamp Limit setting Electronic Transformer Overload protection technology Radio frequency 433.92 MHz Coding Format Rolling code (7.38 x 10 Combinations) Standard transmitter Code Storage Capacity... - Page 14 Page 14 PARTS LIST Parts List Item Description Item Description Item Description Item Description Item Description Item Description L.E.D cover Sprocket assy Door bracket Sprocket assy L.E.D cover Straight arm U hanging Control PCB-1 Bent arm Control PCB-1 U hanging bracket bracket Trolley assy Click bracket Power PCB-2...
- Page 15 COMMON FAULTS & SOLUTIONS Nature of Fault Possible Cause Solutions 1. Check that mains voltage is present. 2. Check the fuse. 3. Check the low-voltage wires from the transformer to the control board. Operator not functioning. 1. No power supply. 4. Check that the ribbon cable is plugged LCD screen is dim. 2. Plug wire is loose. into the board. 5. If 26V AC is present on the transformer low-voltage side, replace the control board. If not, replace the transformer.
-
Page 16: Parts Listing
COMMON FAULTS & SOLUTIONS The courtesy LED lights stay on instead of The power board may be faulty. Replace the power board. timing out after the last operation. 1. The LED wire is not plugged in. 1. Check the LED wire. The courtesy LED lights 2. The LED is faulty. 2. Replace the LED. do not work. 3. The power or control board is faulty. 3. Replace the circuit board(s). 1. In manual mode, check that the door The door fails to The obstacle function is being moves freely (at the speed of the operator). - Page 18 SBS is a supplier of specialised building products. As part of the Swartland Group, traditional values such as hard work, pride in our craft and continuous improvement are an integral part of who we are. These values are at the core of all our products, resulting in products that are manufactured to the highest standards and made to last. Sales Branches City Johannesburg 0861 22 3444 +27 11 474 9067 East Rand +27 11 397 8448...
