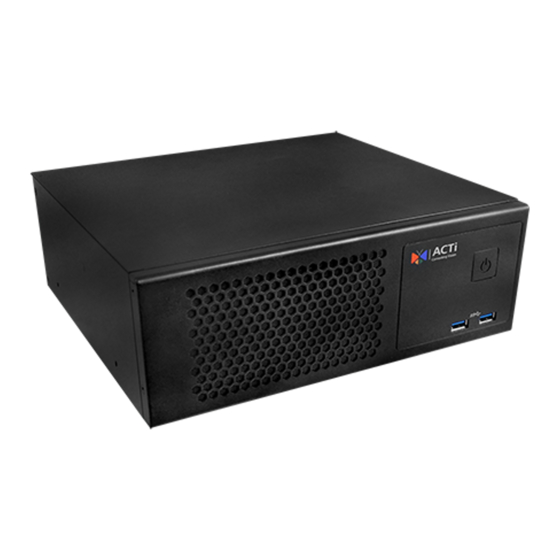

- Page 1 Quick Installation Guide TVW-100 4-Monitor 1-Bay Mini Standalone TV Wall V.18.10.05...
-
Page 2: Before You Start
BEFORE YOU START Thank you for purchasing ACTi Mini Standalone TV Wall Server. This guide contains all the information you need to quickly set up the TV Wall system via local display interface. For detailed instructions on installation and operation, please search for the product manuals on http://www.acti.com/downloadcenter. -
Page 3: Front Panel
AT A GLANCE FRONT PANEL Power Button USB 3.0 Ports x 2 REAR PANEL Power Connector Mini DisplayPorts x 4 DisplayPort HDMI Port LAN Ports x 2 USB 3.0 Ports x 4 COM Port x 2 DVI Connector for RS-232) Audio Input Audio Output Quick Installation Guide... -
Page 4: Connect The Devices
CONNECT THE DEVICES The example below displays a local network consisting of an LPR, network cameras and basic required peripherals to start using the device. Network Switch Power Source USB Devices # 2 (optional) # 3 (optional) # 4 (optional) Mini DisplayPort Monitor START UP 1. - Page 5 Registration or Offline Registration. Online Registratioin Use Online Registration if the TV Wall server has Internet access. 1. Membership ID in ACTi Member Center is required for activation. If you do not have an account yet, Register one for free at https://member.acti.com/ login.
- Page 6 Use Offline Registration if the TV Wall server is in a network but not connected to public Internet. You need to get an activation file from another computer and transfer it to the TV Wall server. But first, take note of the MAC address of TV Wall server. 1. Membership ID in ACTi Member Center is required for activation. If you do not have an account yet, Register one for free at https://member.acti.com/ login.
- Page 7 2. Access https://www2.acti.com/support/LicenseMgt/TVW_registration.asp. 3. Enter the License Key and the MAC address of TV Wall server, then click Submit. 4. An email with the activation code file (*.lic) will be sent to the registered email address. Save this file to a USB Disk. 5. On the TV Wall server Windows Notifications Panel, double-click the icon to bring up the TV Wall Administrator Tool.
- Page 8 START TV WALL SERVICE After successfully registering the TV Wall Server, the status shows that the service is RUNNING. To start viewing monitor clients, click the Settings page tab. Then, click Start Bring Up the Views To manage and bring up the views at anytime, right click the TV Wall Server icon from the Windows Status...
- Page 9 ADD TV WALL TO CMS SERVER NOTE: Ensure the CMS server has been updated to the latest version. 1. On the CMS server, go to Setup page > TV Wall, then click Add TV Wall. 2. Input the Name of the TV Wall Server and its connection properties: Host IP address, Port, Account and Password.
- Page 10 CREATE TV WALL VIEWS To start real-time handling of the TV Wall monitors via CMS interface, create a view on the CMS Live View screen which will act as a deck dedicated as the TV Wall Controller. 1. On the CMS, click on the View Toolbar and fill in the View properties.
- Page 11 4. As the channel window shows the TV Wall Controller background, click to save the View. 5. Scroll the left-panel menu towards TV Wall and drag the TV Wall server source onto the TV Wall Controller view. You may drag multiple TV wall servers here as you want.
- Page 12 ASSIGN VIEWS TO MONITORS To assign a camera device to the view, simply drag a camera channel to the grid on the the TV Wall View. Continue to drag another camera to the view. The TV Wall Monitor(s) will immediately display the camera views. Display on TV Wall Stations Or, you may select a live channel on the CMS Live view interface, right-click “Send to TV Wall”...
- Page 13 MANAGE TV WALL VIEWS When you click on a TV Wall source, the Controller Toolbar on top of the window becomes enabled. Use the toolbar to manage the TV Wall Views. Right-click to change View Layout View Mode: Toggle between Viewer Mode and Screen Mode. Select TV Wall View: Use this drop-down box to select and change from one view set to another. You need to create TV Wall View set first.
- Page 14 Due to continuous product improvements, some contents may have changed from the time this documentation was written. You can download the latest user documentation from http://www.acti.com/downloadcenter www.acti.com...
