Tekmar tekmarNet 2 529 Quick Setup Manual

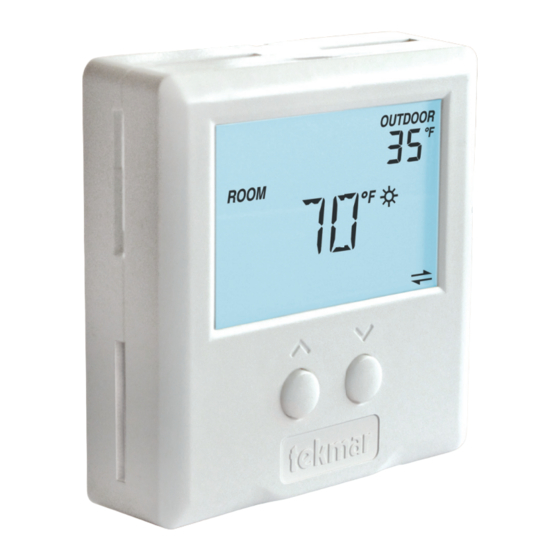

tekmarNet ® 2 Thermostat 529
1.

Location

Exterior
Wall
3.

Install Mounting Base

Adaptor
Plate 007
Thermostat
Base
5.

Switch Settings

Switch Position Action
SETBACK Allow thermostat to respond to
ON
available schedule. Requires Timer 033.
1
OFF OFF No setback schedule response.
SCENE Allow thermostat to respond to
ON
2 scenes. Requires User Switch 479.
OFF OFF No scene response.
LOCK Locked to 'User' access level. Set
ON
to Lock when installation completed.
3
UNLOCK Unlock to access all settings.
OFF
Set to Unlock during installation.
ON Not used
4
OFF Not used
Quick Setup Guide
Interior
Wall
5 feet
1.5 m
Thermostat
Base
OR
Switch
Box
2.

Remove Mounting Base

4.

Wiring

Two Stage Method 2
Heating Equipment
Wall
Two Stage Method 1
tN2 tN2
Zone 1
Zone 1
Stage 1
6.

Close Thermostat

pivot
tab
1 of 2
W R
For instructions see brochure
Use at least 65°C conductors
No Power
tN2 tN2 Sensor
1 2 3 4
Switch Setting Location
tN2 tN2
Zone 2
Stage 2
Indoor Sensor 076, 077, 084
© 2010
Q 529
12/11
Zoning Replaces: 01/11
tNt 529
Two Stage Heat
Relays: 24V (ac) 2A
ON
1 2 3 4
1 2 3 4
Slab Sensor 079, or
Outdoor Sensor 070, or
Q 529 - 12/11
