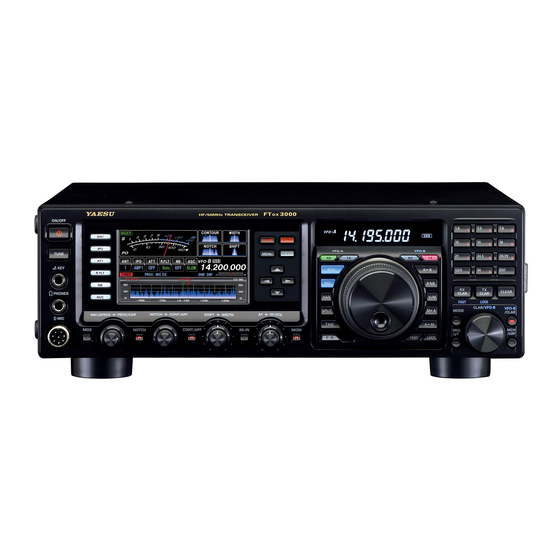

Yaesu FTDX3000 Setup
  1. Manuals
  2. Brands
  3. Yaesu Manuals
  4. Sound Card
  5. FTdx3000 Series
  6. Setup

Yaesu FTDX3000 Setup

Hide thumbs Also See for FTDX3000:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Yaesu FTDX3000 Sound card digital modes setup
using internal USB interface
He took information here and there on the internet and gathered where
you can find some more details
https://morsetutor.com/2015/02/yaesu-ftdx3000-digi-setup/
(by W0JD)
NOTE!!! The instructions which follow are intended to be used when FSK is desired.
Frankly unless you are a purest, AFSK works just as well and if you have already
followed the PSK setup instructions. You are good to go, change the mode in DM780
to AFSK and go.
If someone at Yaesu is reading this, please have HAM's proofread your manuals.
Writed by:
Jay Duthler
W0JD
jay@duthler.us

Advertisement

loading
Need help?

Need help?

Do you have a question about the FTDX3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yaesu FTDX3000

Summary of Contents for Yaesu FTDX3000

  • Page 1 Frankly unless you are a purest, AFSK works just as well and if you have already followed the PSK setup instructions. You are good to go, change the mode in DM780 to AFSK and go. If someone at Yaesu is reading this, please have HAM’s proofread your manuals. Writed by: Jay Duthler W0JD jay@duthler.us...
  • Page 2 Hopefully this blog post on setting up the FTDX3000 for sound card digital modes will prevent a few from doing the hard way, and for those who have already gone the external interface route to change.

  • Page 3: Configure The Radio

    Configure the Radio Before we begin to setup DM780 to interface with the radio, we first need to setup the radio side of the connection. When using the 3000 for PSK and other sound card based digital modes. The data mode lets the radio use a different set of interfaces and configuration settings for example from SSB use.
  • Page 4 Change item #75 to USB, which tells the radio to source TX audio from the USB audio interface. The next two items #76 and #77 is the gain settings internal to the radio between the internal sound card and the audio input of the transmitter and the audio output of the receiver.
  • Page 5 Change #037 to use the USB serial port and not the back panel port. Also ensure that CAT RTS #040 is enabled as this will permit hardware flow control with the PC. Menu settings applicable to the serial port When you setup HRD to connect to the radio ensure that the “Enhanced port” is being used and that the speed is the same as what was set in radio option #038.
  • Page 6 Setup DM780 – configure PTT I will assume that you have already setup the radio control side of HRD to connect with the radio. It is important that when configuring HRD you use the enhanced port recorded above and not the standard port number. Via the DM780 options screen.
  • Page 7 Configure CW keying Configure the Sound card Set sound-card initial gain levels Before taking it for a test drive on the air the initial gain level for the USB sound card which while physically inside the transceiver it is logically part of Windows. In my...
  • Page 8 FTDX3000 sound card shows up as Speakers “7-USB Audio CODEC” and Microphone “7-USB Audio CODEC”. In your system the number may be different but the rest of the text will be the same. Right click on each device, select properties and levels. Start out will a low level around 10 for you initial trials.

  • Page 9: Troubleshooting

    If you have trouble getting the PC to talk to the CAT port on the Radio, I would suggest downloading from the Yaesu website the PCC-3000 package. It presents a very simple interface to the radio and is simple to setup and less may be more by using this simple app to verify radio connectivity.
