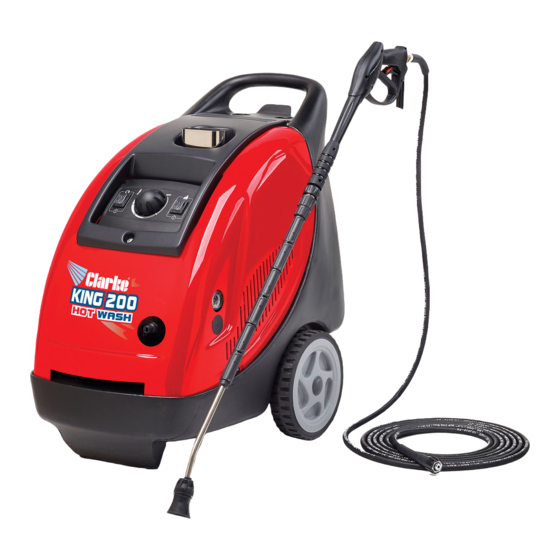

- Page 1 WARNING: Read these instructions before using the machine PROFESSIONAL HIGH PRESSURE HOT WASHER MODEL NO: KING 200 PART NO: 7320176 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS0819 - ISS 1...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Hot Washer. The machine has been designed to use hot or cold water to clean any surfaces which can stand the force of the high pressure water jet and the action of the detergents used.
-
Page 3: General Safety Rules
4. NEVER allow children or untrained personnel to use this machine. 5. NEVER operate the machine with any of the covers removed. 6. NEVER attempt any repairs to this machine. Always refer to your CLARKE dealer. 7. NEVER supply any liquid other than water to the water inlet. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 5: Symbols On The Machine
SYMBOLS ON THE MACHINE The high pressure jet must not be directed at persons, animals, live electrical equipment or at the appliance itself. Read the Failing to follow these manual before instructions could use. result in injury or damage to the machine. - Page 6 OVERVIEW On/off Switch High Pressure Water Outlet Burner On/Off Switch Detergent Tank Burner Thermostat Diesel Tank Handle Power Cable Nozzle Water Inlet & Filter Extension Lance Water Inlet Adaptor Pressure Gauge High Pressure Hose Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 7: Installation
INSTALLATION CONNECT THE HOSE ADAPTOR 1. Insert the Water inlet filter into the water inlet. 2. Screw the supplied hose adaptor onto the water inlet by hand as shown. • Do not use any tools to tighten the adaptor. CONNECT TO A WATER SUPPLY The pressure washer must never be connected to the drinking water supply without using a system separator (also known as a backflow preventer). -
Page 8: Connect The High Pressure Hose
CONNECT THE HIGH PRESSURE HOSE 1. Remove the travel cap from the high pressure hose outlet. 2. Screw the other end of the hose on to the outlet. • Tighten the connector by hand only - do not use any tools. •... -
Page 9: Automatic Stop System
GUN ASSEMBLY SAFETY LOCK The safety button on the gun is not there to lock the lever during operation, but to prevent its accidental operation. 1. Lift the locking lever to the position shown to prevent the trigger from being pulled. 2. -
Page 10: Adding Fuel
ADDING FUEL WARNING: INCORRECT FUELS MUST NOT BE USED AS THEY MAY PROVE HAZARDOUS. • ALWAYS refuel in a well-ventilated area, away from sources of ignition. • NEVER leave fuel within the reach of children. • Refuel carefully to avoid spillages. -
Page 11: Adjusting The Pressure
WASHING WITH COLD WATER 1. Set the ON/OFF switch to ON. 2. Squeeze the gun trigger. WASHING WITH HOT WATER 1. Set the ON/OFF switch to ON. 2. Set the Burner ON/OFF switch to 3. Turn the burner thermostat to the desired temperature setting. -
Page 12: Shutting Down
OPERATING TEMPERATURE FOR THE DETERGENT IN USE. Only use detergents recommended for use with pressure washers such as: • CLARKE Traffic Film Remover which is a powerful ‘low foaming’ agent for car cleaning, patio cleaning etc. • CLARKE Wash & Wax. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE WARNING: DISCONNECT THE MACHINE FROM THE POWER SOURCE DURING CLEANING OR MAINTENANCE. WARNING: DO NOT SPRAY THE MACHINE WITH WATER AND DO NOT USE DETERGENTS OR AGGRESSIVE SOLVENTS AS THEY COULD DAMAGE THE MACHINE. 1. Clean the exterior part of the machine with a dry cloth. CLEANING THE WATER INLET FILTER: To ensure the pump gives good service it is extremely important to check and clean the water inlet filter frequently. -
Page 14: Environmental Protection
ENVIRONMENTAL PROTECTION Through purchase of this machine, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE. In effect, this means that this machine must not be discarded with general waste. -
Page 15: Troubleshooting
Plug fuses are burnt out. Check them and replace them. not start The motor hums but Low voltage. Contact CLARKE service. does not start High pressure pump is Contact CLARKE service. blocked. The motor stops... - Page 16 Contact CLARKE service. Impurities or water in the Empty the tank and clean it fuel. carefully. For all other problems contact the CLARKE service department Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 17: Product Specifications
PRODUCT SPECIFICATIONS Model Number King 200 Part Number 7320176 Voltage 230 V / 50 Hz / 1 Phase Motor Input Power 2800W Motor Input Current 13 A Duty Cycle S1 (continuous) Max Inlet Water Pressure 10 Bar Working pressure 130 Bar... -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 19 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
