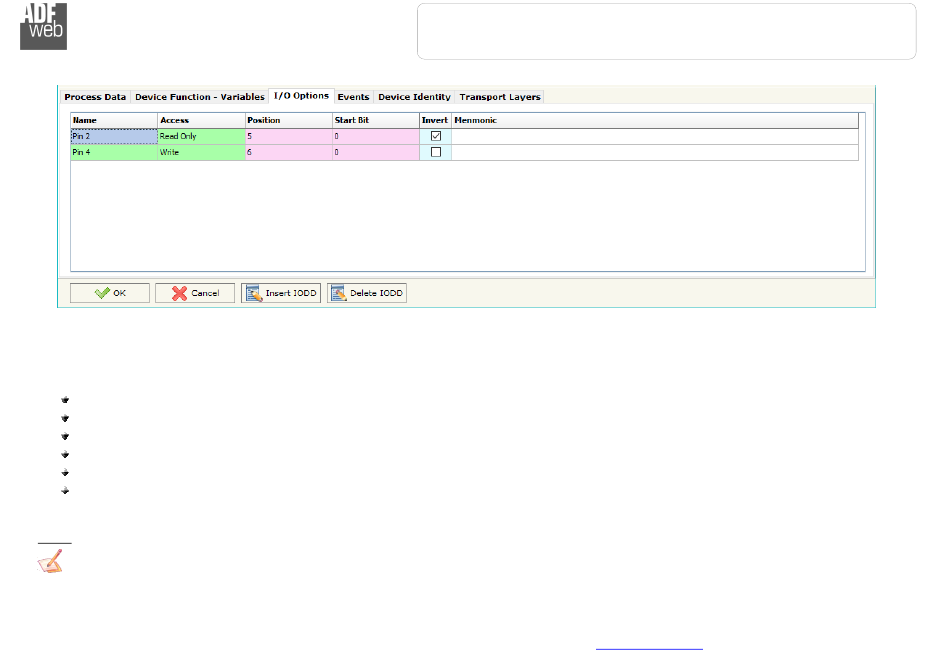

The "I/O Options" section is used to define how linking the data from IO-Link pin 2 and pin 4 to BACnet side (Fig. 9).
Figure 9: "I/O Options" section
The meanings of the fields are:
In the field "Name" the name of the IO-Link pin is defined;
In the field "Access" the access of the IO-Link pin is defined;
In the field "Position" the starting byte of the internal memory arrays where mapping/getting the value is defined;
In the field "Start Bit" the starting bit of the byte of the field "Position" is defined.
If the field "Invert" the value to map/get is inverted;
In the field "Mnemonic" a description of the variable is defined.
Note:
IO-Link pin 2 can only be read and IO-LINK pin 4 can be defined if "Pin 4 Mode" is set to "DIn" or "DOut" in "List of IO-Link Channel"
section.
