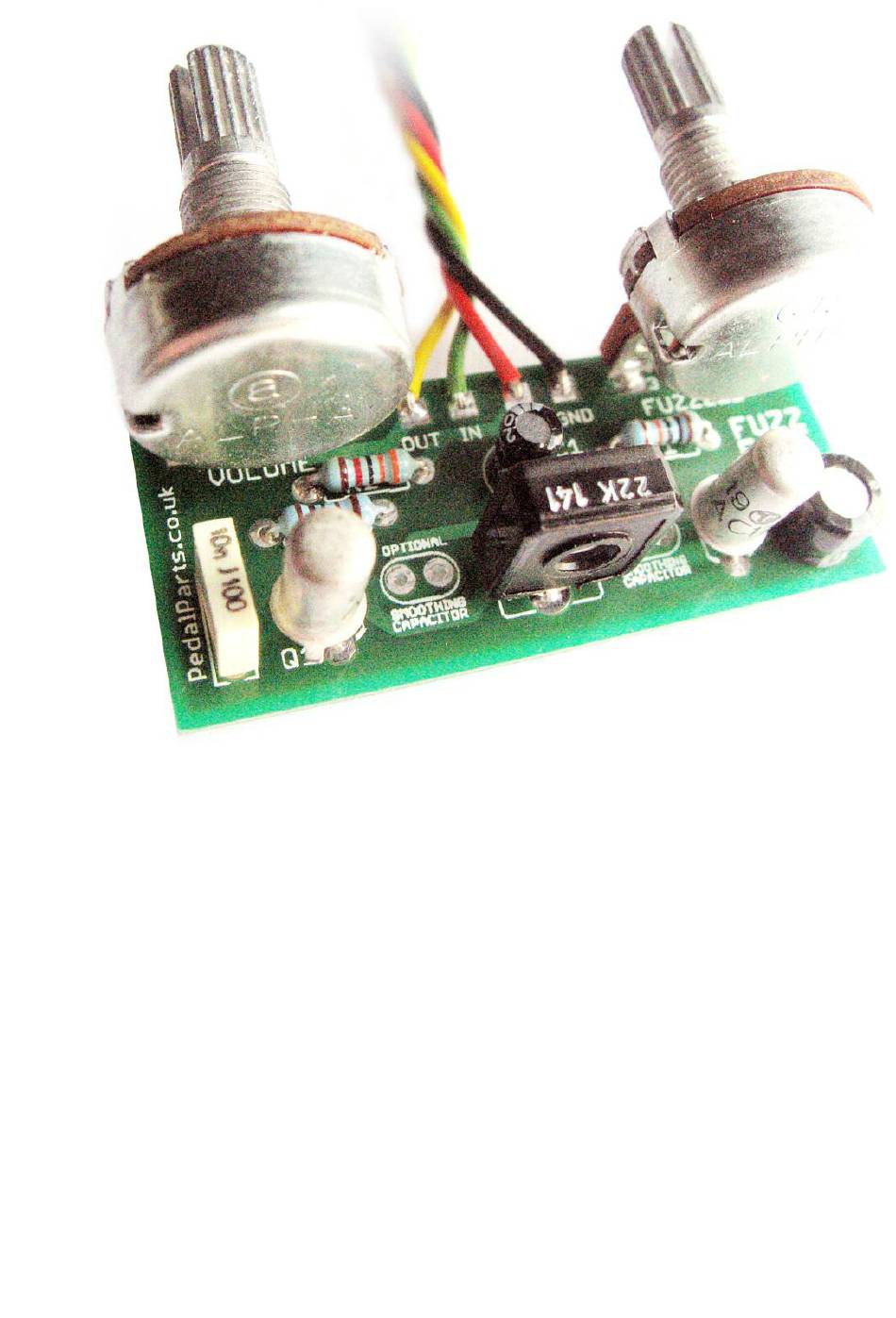

- Page 1 Fuzz Face Classic loveliness for all! PedalParts.co.uk...
- Page 2 100K 470R / Oh my. If ever there was an essential preset 47K addition to a rig then the Fuzz Face 2.2u surely is it. A bit of fiddling will get you anywhere from creamy 0.01u...
- Page 3 Latest version of the PCB lets you mount the pots straight onto it, saving on wiring and eliminating the worry of how to fix the board inside the box. You can wire them off-board if you like, just connect wires to VOLUME and FUZZ pads 1-3 instead of sticking the pot into it.
- Page 4 Test the A A T board! Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring. It’ll cut down troubleshooting time in the long run. If the circuit works at this stage, but it doesn’t once you wire up the switch - guess what? You’ve probably made a mistake with the switch.
- Page 5 PNP cans? Follow this. PNP CANS? Ooh, many, but how about: AC128 2N404 The Board GND connections don’t all have to directly attach to the board. You can run a couple of wires from the DC connector, one to the board, another to the IN jack, then daisy chain that over to the OUT jack.
- Page 6 NPN cans? Follow this. NPN CANS? Ooh, many, but how about: AC176 BC108 (silicon) The Board GND connections don’t all have to directly attach to the board. You can run a couple of wires from the DC connector, one to the board, another to the IN jack, then daisy chain that over to the OUT jack.
