Quick Installation Guide

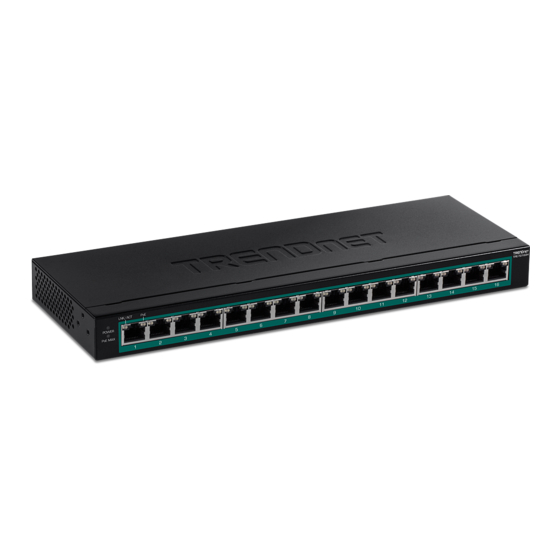

16-Port Gigabit PoE+ Switch
TPE-TG160H
Router
PoE+ Camera
TPE-TG160H
LED Indicators
Location
LED Indicator
Unit
Power
PoE Max
LED Per Port
Link/Act
PoE
PoE Access Point
Link/Act
PoE
Color
Status
Description
Green
Solid Light
Power On
Light Off
Power Off
Red
Solid Light
PoE Budget Max
Light Off
Below PoE budget
Green
Solid Light
1000Mbps Link Established
Blinking
1000Mbps Data Transmitting
Amber
Solid Light
10/100Mbps Link Established
Blinking
10/100Mbps Data Transmitting
Off
No Link
Green
Solid Light
PoE is connected
Amber
Solid Light
Error with PoE
Off
No PoE Power
PoE Camera
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TRENDnet TPE-TG160H
Summary of Contents for TRENDnet TPE-TG160H
- Page 1 PoE Access Point Quick Installation Guide PoE Camera 16-Port Gigabit PoE+ Switch TPE-TG160H PoE+ Camera TPE-TG160H Link/Act LED Indicators Location LED Indicator Color Status Description Unit Power Green Solid Light Power On Light Off Power Off PoE Max Solid Light...
- Page 2 3. Place the wall-mount slots over the screws and slide the modem down until the screws fit snugly into TRENDnet garantit ses produits contre les problèmes de matériel ou de fabrication, dans des A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais the wall-mount slots.
