ScopeDome Arduino Card Manual

Manual
ScopeDome

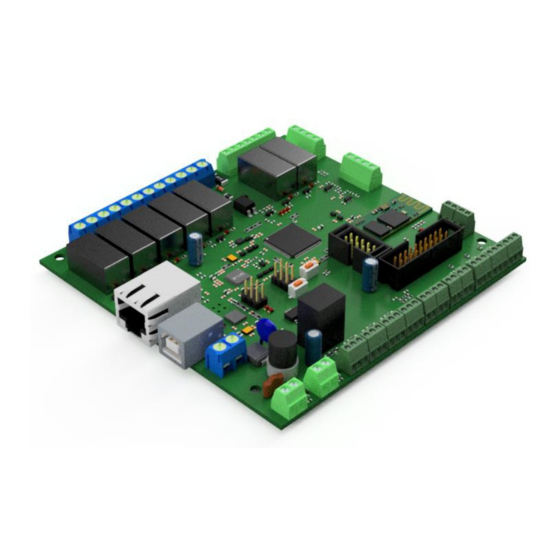

Arduino Card
PCB ver. 1.3.0, firmware ver. 4.9
2019 - Copyright ScopeDome - Poland
Main features
Module designed to control the astronomical observatory
Compa bility with the Arduino environment (Arduino Mega clone)
Open Source communica on protocol
Control via Ethernet or USB
Powered by an external power supply
Two modules can be connected via BlueTooth in Master and Slave modes
The Master module controls the dome's rota on, the Slave module controls the
dome's shu er
Specifica on
- driver compa ble with Windows 7, 8, 10 (32 i 64 bit)
- module compa ble with Arduino Mega (AtMega2560-16)
- built-in Ethernet module (W5200)
- built-in BlueTooth HC-05 module
- built-in pressure gauge
- built-in thermometer
- module power supply: external 12V / 2A power supply
- 2 x inputs for communica on with a PC: Ethernet and USB
- 7 x electromechanical relays 230V / 5A
- 2 x Open Kolektor 12V / 2A power outputs with PWM control
- 4 x OneWire inputs
- 2 x SPI inputs
- touch screen connector
- 7 x logic inputs
- 2 x analog inputs
- 230V AC power detec on input
- network configura on: sta c IP address or DHCP
- control method: USB cable or Ethernet network
- default IP address: 192.168.1.120 (port 80)
- working temperature range: -10 ° C to 30 ° C
- dimensions: 113 x 114 x 20 mm
- weight: 230 g
Useful links
- SDK of the communica on protocol with the card
- ScopeDome Driver ver. 5.5.5.11
- electrical diagrams of the card
