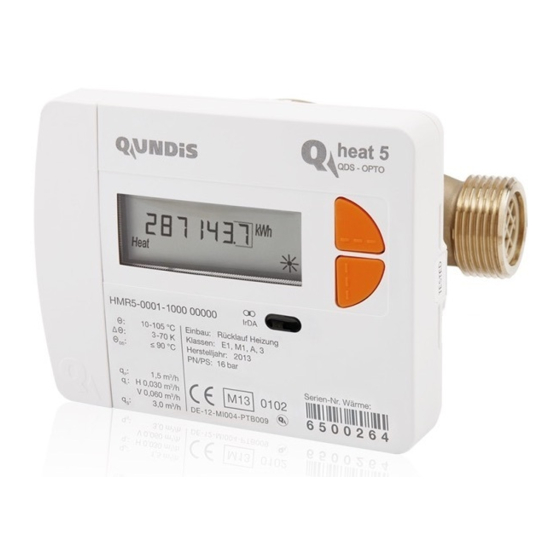

- Page 1 Operating manual IMPORTANT! READ THROUGH CAREFULLY BEFORE USE. KEEP ACCESSIBLE THROUGHOUT THE PRODUCT LIFETIME. Heat meters Q heat 5 Ultrasonic...
-
Page 2: Table Of Contents
Contents Safety and warranty Safety and warranty ..................3 Important information This product must be installed professionally and in accordance with the pre- Safety of lithium batteries................4 scribed assembly guidelines and may therefore only be installed by qualified Safety notes for lithium batteries ..............4 and trained experts. -
Page 3: Safety Of Lithium Batteries
Safety of lithium batteries Technical data Safety notes for lithium batteries Norms and standards Certain heat meter components can be equipped with a lithium CE conformity see Declaration of Conformity battery. This type of battery is classified as hazardous. Electromagnetic compatibility Interference resistance EN 61000-6-2 VALID TRANSPORT REGULATIONS ARE TO BE ADHERED TO IN EACH... -
Page 4: Technical Data
Technical data Device elements Flow sensor Device elements (1) LC display - the display is off as standard (sleep mode). Every 36 seconds, the display Connection sizes and weight 1.5 m³/h 2.5 m³/h lights up briefl y and indicates the current meter status, the Length 110 mm 130 mm... -
Page 5: Display
Display Display Operating scheme Overview of levels Changing the level: Press key <H> Current consumption values • Standard level Annual consumption values • Standard level Current values • Can be hidden individually Parameter • Can be hidden individually Monthly values heat •... -
Page 6: Display Level L2 - Current Values
Display Display Display level L2 – Current values Displays the level Air in the Current measuring fl ow section (*) The display "Air in the measuring sec- Current supply fl ow tion" replaces the "Current fl ow" display if temperature air is detected in the measuring section. -
Page 7: Display Level L3 - Parameters
Display Display Display level L3 – Parameters Displays the level Date of next due date Calibrated Calibrated checksum Serial number firmware version firmware version Identification alt. alt. This example: Possible + activated Levels 2, 3 and 5 are shown, levels 4 x space = levels 4, 6, 7 and 8 not available, = level 9 hidden... -
Page 8: Display Level L9 - Current Values
Display Display Display level L9 – Current values Error messages Error display Error description Measures/Notes Displays • Hardware error or • Check flow sensor, connection the level damaged firmware cable and calculator unit for external damage Period above limiting • Device must be replaced Max. - Page 9 QUNDIS GmbH Ultrasonic heat meter Operating manual Sonnentor 2 Q heat 5 US D-99098 Erfurt Type: Ultrasonic measuring technology Tel. +49 (0)3 61 / 26 280-0 Document no.: FOM5ZZHEEN0 USDSP Fax +49 (0)3 61 / 26 280-175 Date published: 5.12.2014 Version: V3.00...
