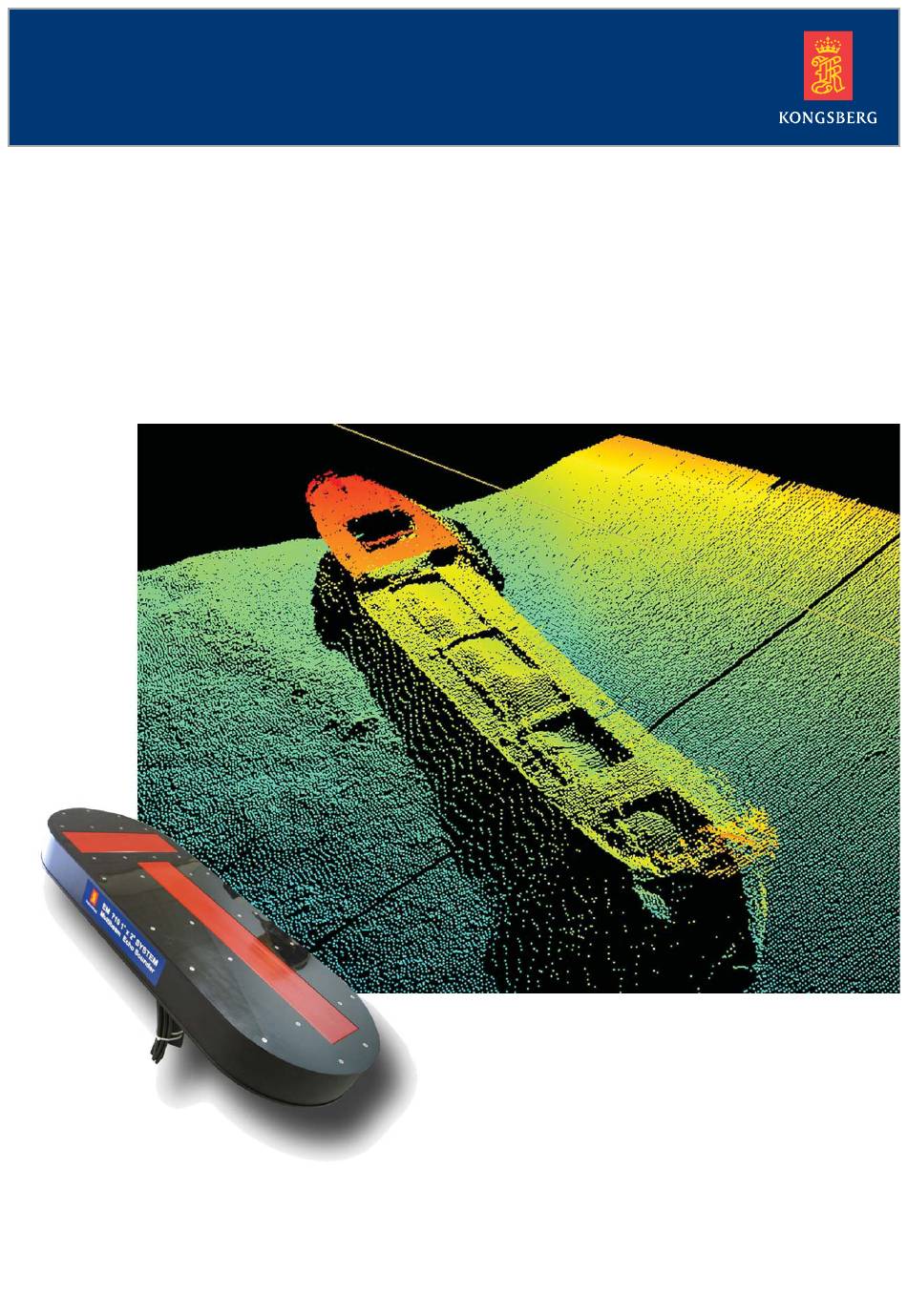

  • Page 1 Installation Manual EM 710 Multibeam echo sounder...
  • Page 3 Kongsberg EM 710 Multibeam echo sounder Installation Manual Kongsberg Maritime 164851/C June 2009...
  • Page 4 Kongsberg Maritime AS. Kongsberg Maritime AS endeavours to ensure that all information in this document is correct and fairly stated, but does not accept liability for any errors or omissions.

  • Page 5: Table Of Contents

    Installation Manual Table of contents ABOUT THIS MANUAL ............7 EM 710................8 System overview ......................8 System characteristics .................... 11 Scope of supply ......................12 Supply conditions ....................14 2.4.1 Equipment responsibility................14 2.4.2 Project management..................14 2.4.3 Installation, supervision and commissioning ..........15 Warranty .........................16...
  • Page 6 Kongsberg EM 710 Installing the mounting frames................38 4.5.1 Logistics and references ................38 4.5.2 Procedures ....................38 4.5.3 Installation accuracy of frames ..............39 Installing the transducer modules................39 4.6.1 Logistics and references ................40 4.6.2 Procedure ....................40 INSTALLATION EXAMPLES ..........43 Transducer blister ....................43...
  • Page 7 Installation Manual Summary ........................97 Vessel coordinate system..................98 Sensor location and alignment ................99 8.3.1 Motion sensor..................... 99 8.3.2 Heading sensor ..................100 8.3.3 Positioning system ..................100 8.3.4 Water line....................100 Transducer Measurements ...................101 8.4.1 Transducer heading ................... 101 8.4.2 Transducer roll and pitch ................101 8.4.3 Transducer position...................
  • Page 8 Kongsberg EM 710 10.2.3 Sound speed probe interface ..............136 10.2.4 RS-232 or RS-422/485 serial line .............. 137 10.2.5 Trigger in/out (not used)................138 10.2.6 Internal control signals ................139 10.2.7 Remote control and external trig ..............140 10.2.8 Standard AC power cable ................141 10.2.9...

  • Page 9: About This Manual

    The purpose of this installation manual is to provide the descriptions and procedures required to install the Kongsberg EM 710 Multibeam echo sounder system units, and to perform the necessary cabling between the individual system units, and between the system and peripheral systems, sensors and devices.

  • Page 10: Em 710

    Innovative acoustic principles The EM 710 operates at sonar frequencies in the 70 to 100 kHz range. The transmit fan is divided into three sectors to maximize range capability but also to suppress interference from multiples of strong bottom echoes.
  • Page 11 The transmit fan is electronically stabilized for roll, pitch and yaw. The EM 710 has a receive beamwidth of either 1 or 2 degrees depending on the chosen receive transducer. The number of beams is 256 or 128 respectively, with dynamic focusing employed in the near field.
  • Page 12 Kongsberg EM 710 Post-processing software for the EM 710 is available from both Kongsberg Maritime and third-party suppliers. System drawing Figure 1 EM 710 system units and interfaces System configuration with desktop operator station, transceiver unit and transducer arrays. 164851/C...

  • Page 13: System Characteristics

    Transducers The EM 710 transducers are fully water tight units intended for many years of trouble-free operation in rough seas. The transmit and receive transducers both have a width of 224 mm and a height of 118 mm.

  • Page 14: Scope Of Supply

    Twisted pair Ethernet is used for data communication with the Operator Station. Operator Station The Operator Station of the EM 710 is the HWS high performance dual-processor PC workstation. The operator software is the Seafloor Information System (SIS). The HWS dual bootable to either Linux®...
  • Page 15 Kongsberg Maritime can supply the EM 710 either as a subsystem for integration by the user or other parties, or we can offer complete system solutions tailored to the user’s need.

  • Page 16: Supply Conditions

    Installation performed by Kongsberg Maritime Kongsberg Maritime AS will assist during the installation if specified in the contract or requested by the installation shipyard or customer. Before any installation work by Kongsberg...

  • Page 17: Installation, Supervision And Commissioning

    EM 710 Delays may occur if any of the equipment related to the system is not available for Kongsberg Maritime AS for testing. During sea trials, the vessel must be at Kongsberg Maritime’s disposal when required, even though we cannot be held responsible for expenses relating to the running costs of the vessel.

  • Page 18: Warranty

    Excessive waiting time resulting from delays caused by the shipyard will be charged to the shipyard. HAT and SAT are performed according to Kongsberg Maritime test procedures 2.5 Warranty The warranty on the scope of supply is 24 months from the date when the equipment is sent from the factory.

  • Page 19: Environmental Requirements

    Consult the applicable manufacturer’s documentation for shock and vibration damping of the EM 710 Operator Station and peripherals. For more information about temperature and environment, see Environmental and EMC specifications on page 23...

  • Page 20: General Safety Rules

    Kongsberg EM 710 2.7 General safety rules The system operates on 115 and/or 230 Vac, 50/60 Hz with a switch in the Transceiver Unit. WARNING This voltage can be lethal. The following safety precautions must be followed at all times during installation and maintenance work: •...

  • Page 21: Technical Specifications

    Technical specifications 3 TECHNICAL SPECIFICATIONS Note Kongsberg Maritime AS is engaged in continuous development of its products and reserves the right to alter specifications without prior notice. Topics • Interfaces on page 19 • Physical specifications on page 21 • Power requirements on page 22 •...
  • Page 22 Kongsberg EM 710 • Gigabit and Megabit Ethernet interface for input of sound speed profile, tide and echo sounder depths, and output of all data normally logged to disk. 164851/C...

  • Page 23: Physical Specifications

    Technical specifications 3.2 Physical specifications Transducer – 2 degrees • Length: 490 mm • Width: 224 mm • Height: 118 mm • Weight: 18 kg (nominal without cables) Transducer – 1 degree • Length: 970 mm • Width: 224 mm •...

  • Page 24: Power Requirements

    Kongsberg EM 710 Operator Station • Height: 127 mm • Width: 427 mm (excluding rack fixing brackets) • Depth: 480 mm (excluding handles and connectors) • Weight: Approximately 20 kg 19” inch LCD monitor • Height: 444 mm (excluding mounting brackets) •...

  • Page 25: Environmental And Emc Specifications

    Technical specifications Power interrupts Menu settings, all parameters and the sound speed profile are stored on the Operator Station’s harddisk during operation, so operation can continue after power interruption. However, the file system may be damaged, so the use of an uninterruptable power supply (UPS) is highly recommended.

  • Page 26: External Synchronisation And Remote On/Off

    Kongsberg EM 710 • Number of beams and soundings for each ping: – 1 x 2 and 2 x 2 degrees: 128 beams with 200 soundings in High Density mode per swath – 0.5 x 1 and 1 x 1 degree: 256 beams with 400 soundings in High Density mode per swath –...

  • Page 27: Clock Sync 1 Pps

    Technical specifications Figure 2 Typical sequence When the TRU is ready for a new ping, RTS is set to H. When the external device is ready for a new ping, CTS shall be changed to H. The CTS must be high for minimum 100 microseconds. The TRU will then change RTS to L (busy), issue a Trig out signal (will be low for 1 millisecond) to indicate the start of the transmit pulses, and then transmit the TX pulses.

  • Page 28: Transducer Arrays

    Kongsberg EM 710 4 TRANSDUCER ARRAYS This chapter describes the installation of the EM 710 Transmit (TX) and Receive (RX) Transducer Arrays. Drawings showing the installation principles and the physical dimensions are included in the text. Other drawings are included in the Drawing File.

  • Page 29: Installation Philosophy

    Transducer arrays 4.1.2 Installation philosophy The EM 710 Multibeam echo sounder is supplied as a basic echo sounder with two relatively large transducers. While the electronic units are installed using normal tools, the transducer arrays must be located and installed depending on the vessel’s design.
  • Page 30 Kongsberg EM 710 Note it is important to minimize the alongship gap between the RX and the TX arrays to improve the performance at very shallow water (to get overlap between RX and TX footprints). Design the transducer installation method.
  • Page 31 Transducer arrays Table 2 TX1 and TX2 Cable orientation Module type (TX1 / TX2) Serial no. Cable orientation (Port/starboard) Table 3 TX1 and TX2 Cable orientation Module type (TX1 / TX2) Serial no. Cable orientation (Port/starboard) Table 4 RX1 and RX2 Cable orientation Module type (RX1 / RX2) Serial no.
  • Page 32 Kongsberg EM 710 the alignment. If the array is mounted with cables pointing towards bow, 180 degrees must be added to the measured heading. In this case the sign of the RX array installation roll and pitch angles must be inverted in the SIS installation menu.

  • Page 33: Locating The Transducer Array

    4.3.2 Propeller noise The propulsion propeller is the dominant noise source on most vessel types. The noise is transmitted through the sea water, and may in extreme cases reduce the maximum range capability of the EM 710. 164851/C...

  • Page 34: Noise From Protruding Objects On The Hull

    Kongsberg EM 710 Figure 4 Sketch of boundary layer underneath the vessel The transducer arrays should therefore be placed far away from the propeller, which means on the forward part of the hull. Positions outside the direct line of sight from the propeller are favourable.
  • Page 35 Transducer arrays Figure 5 Recommended location of the transducer array on the hull The possibility of getting air bubbles in front of the transducer array is the most important factor. If the vessel hull has a bulbous bow, this may well be a good transducer array location, but also in this case the flow pattern of the aerated water must be taken into consideration.
  • Page 36 Kongsberg EM 710 Figure 7 Blister and steel pipe arrangements (example) One steel conduit for the Rx Transducer array One or two conduits for the Tx Transducer array (CD021644) Steel conduits must be terminated above the water line Vessel s hull...
  • Page 37 Transducer arrays Figure 8 Gondola for 0.5 x 1 degree system Flatness before and after installation of arrays in the frame Install the frame under the hull Installing the mounting frames on page 38 Check the flatness of the frame The mounting structures must not deviate from a flat surface more than ±...

  • Page 38: Installing The Steel Conduits

    Kongsberg EM 710 Check the flatness of the installation of the modules in the frame Figure 9 Flatness of the frame After the installation of all modules in the frame, check the complete flatness of the frame and arrays surface.

  • Page 39: Logistics And References

    Mount the steel conduits from the vessel hull and up towards the sonar room and the EM 710 Transceiver Unit. • The steel conduit(s) should have an outer diameter of approximately 219 mm and an inner diameter of approximately 197.0 mm.

  • Page 40: Installing The Mounting Frames

    Kongsberg EM 710 Close the top of the steel conduits with a seal. • Kongsberg Maritime recommends the use of sealing from Roxtec, Bratberg or similar. This system is described in the Appendices chapter in this manual. 4.5 Installing the mounting frames Mounting frames are designed to house the individual transducer modules.

  • Page 41: Installation Accuracy Of Frames

    Transducer arrays Alter the drawings and the design as required to fit the vessel and the chosen installation method. Mount the casings in the blister or integrated into the hull. The mounting frames must be bolted onto the flat bars inside the casing.

  • Page 42: Logistics And References

    Special tools - None References - Refer to the following drawings in the Drawing File: Note Note that engineers from Kongsberg Maritime must be present to install the transducer modules. 4.6.2 Procedure How to install the RX and TX transducer array modules Observe normal safety precautions for dockyard work.
  • Page 43 Transducer arrays • Secure the transducer module in place with the brackets, one on each side. Use torque approximately 70 Nm. Mount the next transducer module next to the previous. (only applicable for a 0.5 x 1 degree system). • The gap between the individual modules is determined by the appurtenant mounting frame.
  • Page 44 Kongsberg EM 710 Figure 10 Transducer mounting principles 164851/C...

  • Page 45: Installation Examples

    To achieve this, you can design and manufacture a streamlined transducer blister, and mount it under the vessel’s hull. This is a well proven way, when refitting a vessel with a EM 710 system. Refer to Hatches for access to the steel conduits (top view) on page 44 for the principles.
  • Page 46 Kongsberg EM 710 • Our recommendation is to place an “debris knife” in the forward end of the blister. Prepare the inside surface protection of the blister. Paint with protective paint, and mount zinc anodes. Mount the transducer blister under the vessel’s hull.

  • Page 47: Gondola

    Installation examples 5.2 Gondola A gondola is a streamlined pod mounted under the hull of the ship. It can either be welded or bolted under the hull plates. The idea is to make a gap between the ships hull and the transducers.

  • Page 48: Flush Mount

    Kongsberg EM 710 Figure 12 Gondola – 1 x 2 degree system 5.3 Flush mount The transducer arrays may be mounted flush with the vessel’s hull. In order to do this, the shipyard must design a framework inside the hull to support the casings. The arrays must then be mounted so that their faces are flush with the outer hull.

  • Page 49: Fairing

    Installation examples 5.4 Fairing The transducer arrays may also be mounted directly under the vessel’s hull and then “streamlined” with fairing. This installation method has proven successful in former multibeam echo sounder installations. The required installation drawings must be made by the installation shipyard or by third-party ship designers.

  • Page 50: System Units

    Uninterruptible Power Supply (UPS) is used to power the Operator Station. 6.1 Operator station The EM 710 Operator Station consists of a Kongsberg PC based work station. Main units are computer chassis, display monitor, keyboard, mouse, units for external data storage.

  • Page 51: Location

    6.2.1 Location The EM 710 Transceiver Unit is normally installed in the vessel’s “sonar room” close to the transducer arrays. This room must be dry and free from excessive dust and vibration. Maximum humidity of 80% is recommended.

  • Page 52: Logistics

    Kongsberg EM 710 6.2.3 Logistics • Safety – Refer tot he general safety procedures. Note that the unit is heavy. • Personnel – Trained mechanical/electrical workers • Ship location – In dry dock or at quay. The watertight integrity of the ship will not be affected.
  • Page 53 System Units Figure 15 Drill 11-mm holes, eight (8) for each shock absorber. Caution Always check on the other side of the bulkhead before drilling holes ! The Transceiver Unit is delivered as a complete unit with shock absorbers. Mount the unit to the bulkhead with M10 bolts.
  • Page 54 Kongsberg EM 710 • As the Transceiver Unit is heavy, a lifting arrangement (articulated jack or similar) must be used. • The foundation onto which the Transceiver Unit is mounted will determine the correct torque to be applied to the bolts.
  • Page 55 System Units Figure 17 Transceiver Unit 2 x 2 degree system – Outline dimensions How to mount Transducer array cables and interfaces All external cables (power cables, interface cables, transducer cables) enter the Transceiver Unit at the rear side. The cables must be fastened to the cable clamp.

  • Page 56: Surface Preservation

    The Remote Control Junction Box will normally be located in the vicinity of the Operator Station. It holds the interconnection between the various units in the EM 710 system, and may also contain the master on/off switch for the entire system.
  • Page 57 System Units How to mount the cabling Refer to the cable layout and interconnection documentation for sockets and connections. Note All power must be switched off prior to the cable installation. All cables must be available properly installed in cable ducting. Note should be taken not to excess the physical limitation of the cables.

  • Page 58: Cable Layout

    • Transducer cables on page 89 • Cable specifications on page 92 The standard cables used between the EM 710 system units and between the units and their external devices are shown here. For larger installations where the EM 710 is a subsystem, the cables will also be shown in the cable layout plan and interconnection diagram specific for the vessel into which the system is installed.

  • Page 59: System Cabling

    • Recommended cable type • Minimum cable specifications The appropriate considerations must be taken to suit special requirements. Kongsberg Maritime accepts no responsibility for damage to the system or reduced operational performance if this is caused by improper cabling. System cables Several cables will be supplied with the system.

  • Page 60: Operator Station Cables

    Kongsberg EM 710 7.2 Operator Station cables The illustration and the list below specifies each cable used on the EM 710 Operator Station. References are made to detailed cable drawings. Note that this information includes several cables that may not be in use on all installations.
  • Page 61 Cable layout C8 / C9 - AC power These are AC mains cables. All AC mains cables are normally supplied by the manufacturer. C12 - eSATA Hard disk – all data is initially stored on a pair of high performance SATA disks. These disks are run in a RAID1 configuration, thus ensuring against loss of data even if one disk should fail.

  • Page 62: Transceiver Unit Cables

    C24 - Remote Refer to the Transceiver Unit cabling. 7.3 Transceiver Unit cables The illustration specifies each cable used on the EM 710 Transceiver Unit. References are made to detailed cable drawings. Note that this information includes several cables that may not be in use on all installations.
  • Page 63 Cable layout Figure 20 Transceiver Unit front view – 0.5 x 1 degree 164851/C...
  • Page 64 Kongsberg EM 710 7.3.1.1 cPCI Power Supply Purpose and description This is a standard 500 W cPCI Power Supply. Its main purpose is to supply DC output to the CPU, BSP 67B, RX32 and Ethernet Switch circuit boards. Figure 21 Power One External connections •...
  • Page 65 Cable layout 7.3.1.2 CPU Board with PMC Module Figure 22 CPU Board External connections • C21 - PMC I/O Interface (TPMC866–10) – not used The TPMC866–10 cable is equipped with a 50-pin connector. • C22 - Ethernet The Ethernet cables are equipped with standard RJ-45 connectors.
  • Page 66 VCC slot are available at a 36-pin single line header. Note This interface is only to be used by Kongsberg Maritime personnel. • C29 - TMS For test purposes only This cable is connected to the TMS Emulator slot for programming and development purposes.
  • Page 67 Cable layout 7.3.1.4 Ethernet Switch Board – Gigabit Figure 24 Ethernet Switch Board • C30 to C37 – 100 Megabit Ethernet ports The Ethernet cables are equipped with standard RJ-45 connectors. The Ethernet board has 12 Ethernet ports. 8 fast ports * 10/100TX (FB) and 4 giga ports * 10/100/1000BT (FB) The Ethernet interface of each RX32 receiver board and some...
  • Page 68 Kongsberg EM 710 7.3.1.5 Ethernet Switch Board – Megabit Figure 25 Ethernet Switch Board with arrows • C30 to C41 - Ethernet ports The Ethernet cables are equipped with standard RJ-45 connectors. The Ethernet board has 12 Ethernet ports (0 to 11).
  • Page 69 Cable layout 7.3.1.6 Power Supply PSU 6V Purpose and description This is a 6 V / 25 A power supply. It is used to supply DC power to the analog part of the RX32 Receiver Boards. Figure 26 Power Supply PSU 6V External connections: •...
  • Page 70 FGPA modules on the RX32 receiver board. The signals of the JTAG slot are available at a 6-pin single line header. Note This interface is only to be used by Kongsberg Maritime personnel. • C45 - External synchronization (EXT SYNC) / For internal use only This cable is connected to the EXT SYNC slot for accurate transmit synchronization with external equipment.
  • Page 71 The signals of the MB slot are available at a 10-pin double line header. Note This interface is only to be used by Kongsberg Maritime personnel. • C47 - PowerPC (PPC) / For internal use only This cable is connected to the PPC slot for debugging the PowerPC (FPGA hard-core processor) program software.
  • Page 72 The signals of the IO JTAG slot are available at a 6-pin single line header. Note This interface is only to be used by Kongsberg Maritime personnel. • C50 - TX JTAG / For internal use only This cable is connected to the TX JTAG slot to provide a JTAG interface to the FGPA modules on the TX36 transmitter board.
  • Page 73 EXT SYNC slot are available at a 10-pin double line header. Note This interface is only to be used by Kongsberg Maritime personnel. • C52 - MicroBlaze (MB) / For internal use only This cable is connected to the MB slot for debugging the MicroBlaze (FPGA soft-core processor) program software.
  • Page 74 Kongsberg EM 710 7.3.1.9 Power Supply PSU 72V Purpose and description This is a 72 V / 5 A power supply. It is used to charge the capacitor battery located on the TX RIO boards. Figure 29 External connections • None...
  • Page 75 Cable layout 7.3.1.10 Power Supply PSU 12V Purpose and description This is a 12 V / 24 A power supply. It is used to supply DC power to the TX36 Transmitter Boards. It can also deliver 72 A extra during transmit (with maximum 10 % TX duty cycle). Figure 30 Power Supply PSU 12V External connections •...

  • Page 76: Transceiver Unit - Rear View

    Kongsberg EM 710 7.3.2 Transceiver Unit – rear view Figure 31 Transceiver Unit rear view – 0.5 x 1 degree 164851/C...
  • Page 77 Cable layout 7.3.2.1 RX RIO – Rear Interface Board Purpose and description This is the rear I/O module for the RX32 Receiver Board. It holds transformers and band pass filters. It also connects the 32 receiver channels to the 78-pin connector. The signals are low level ac signals, <...
  • Page 78 Kongsberg EM 710 7.3.2.2 RXP RIO – Rear Interface Board Figure 33 RXP RIO External connections • C55 – AC power AC power Power On/off, normally set to on Switch – 115/230 V for the fan unit This is a 115/230 Vac AC mains cable. Cable C55 is equipped with a 3-pin IEC female socket.
  • Page 79 Cable layout 7.3.2.3 BSP RIO – Rear Interface Board Figure 34 BSP RIO External connections • C57 - 1PPS This is a standard coaxial cable. It is used to provide a 1PPS timing signal. on page Generic coax cable on page 135 •...
  • Page 80 This input is needed for doppler compensation in FM mode. • C67 - USB The USB cable is equipped with a standard USB2 connector and it is only used for system testing by Kongsberg Maritime personnel. • C68 - VGA This cable is equipped with a standard 15-pin D-sub connector.
  • Page 81 Cable layout 7.3.2.5 Raw data logger interface (RDL) Purpose and description This is a Gigabit Ethernet output for a raw data logger option. This “unit” is connected internally to the TRU GBit switch board. Figure 36 RDL board External connections •...
  • Page 82 Kongsberg EM 710 7.3.2.6 TXP RIO – Rear Interface Board Figure 37 TXP RIO Power switch • A - AC power switch for the fan unit • B - On/off switch – set to off if remote on/off control is used...
  • Page 83 Cable layout • C72 / C73 - AC power These are 115/230 Vac AC mains cables. Cable C72 must be equipped with a 3-pin IEC male socket and C73 in a female equivalent. C72 connects AC power to the RXP RIO board. C73 is connected to the ship’s mains power.
  • Page 84 Kongsberg EM 710 7.3.2.7 TX RIO – Rear Interface Board Figure 38 TX RIO External connections • C74 / C75 - TX transducer These are TX transducer cables terminated in 78-pin D-sub connectors. Each TX RIO board connects to two TX transducer cables.

  • Page 85: Transceiver Unit - Cable Configuration

    0.5 x 1 degrees model, but note that the actual cable layout will be different for every system, depending on the EM 710 model, the number of external sensors and other interfacing systems. Figure 39 0.5 x 1 degree system cabling between TRU and other system units and external systems •...
  • Page 86 Kongsberg EM 710 Figure 40 Internal cabling in the Transceiver Unit (power and control cables) • A1 – Connection between RXP RIO and TXP RIO (AC power) • A2 – Connection between BSP RIO and TXP RIO (control signals) 164851/C...
  • Page 87 Cable layout 7.3.3.1 Cable clamp In figure TRU with cable clamp – rear view on page 85 can you see the installed transceiver unit with a mounted cable clamp. This cable clamp unloads the tension on the transducer cables. Figure 41 TRU with cable clamp – rear view •...
  • Page 88 Kongsberg EM 710 Figure 42 Cable clamp Transceiver Unit cable clamp on page 133 164851/C...

  • Page 89: Tru Compact - 2 X 2 Degree System

    Cable layout 7.3.4 TRU compact – 2 x 2 degree system Note All cards used in 2 x 2 degree system are the same as shown in 0.5 x 1 degree system. Figure 43 Transceiver Unit front view – 2 x 2 degree Pcb and power supply for 2 x 2 degree system –...
  • Page 90 Kongsberg EM 710 Figure 44 Transceiver Unit rear view – 2 x 2 degree Pcb and power supply for 2 x 2 degree system – rear view • TXP RIO – Rear Interface Board on page 80 • TX RIO – Rear Interface Board on page 82 •...

  • Page 91: Transducer Cables

    7.4 Transducer cables The transducer cables between the transducer arrays and the Transceiver Unit are all supplied by Kongsberg Maritime with the EM 710 system. The physical number of cables depends on the chosen system beamwidth as shown the following tables. System...
  • Page 92 Kongsberg EM 710 Note During the installation of the TX array, you must fill in the cable identification table(s) below. For a 0.5 x 1 degree system, you will need all cables listed in the tables. With a 1 x 1 or 1 x 2 degrees system, you only need the first 10, while the 2 x 2 degrees system only requires the first 5 cables.
  • Page 93 Cable layout Table 5 Connection of TX transducer cables TX array identification TRU identification Cable Serial no. TX RIO no. Socket no. Table 6 Connection of TX transducer cables TX array identification TRU identification (second 0.5 degree array) Cable no. Serial no.

  • Page 94: Receive Array Cable Markings

    The cables specified may not meet the standards provided by the vessel’s classification society. Consult the applicable guidelines. Kongsberg Maritime as takes no responsibility for performance degradation or damage caused to system, vessel or personnel if the cables used during installation do not meet these specifications.

  • Page 95: Basic Cabling Requirements

    Cable layout 7.6 Basic cabling requirements All permanently installed cables associated with the system must be supported and protected along their entire lengths using conduits and/or cable trays. The only exception to this rule is over the final short distance (maximum 0.5 metre) as the cables run into the cabinets/units to which they are connected.
  • Page 96 Kongsberg EM 710 Radio Frequency interference All cables that are to be permanently installed within 9 m (30 ft) of any source of Radio Frequency (RF) interference such as a transmitter aerial system or radio transmitters, must, unless shielded by a metal deck or bulkhead, be adequately screened by sheathing, braiding or other suitable material.
  • Page 97 Cable layout Metallic casings, pipes and conduits must be grounded, and when fitted with joints these must be mechanically and electrically grounded locally. Cable connections All cable connections are shown on the applicable cable plan and interconnection diagrams. Where the cable plan shows cable connections outside an equipment box outline, the connections are to be made to a plug or socket which matches the plug or socket on that particular item of equipment.

  • Page 98: Alignment

    • Calibration of system on page 102 Figure 47 Reference points The EM 710 is a precision instrument for bathymetric swath mapping. To be able to produce data that are both detailed and correct, it is necessary to calibrate the survey vessel very well, and perhaps better than what may have been standard practice earlier.

  • Page 99: Summary

    It is the x, y, z values for this location that must be entered into the EM 710 Operator station. 8.1 Summary The minimum requirements for alignment accuracy are given for...

  • Page 100: Vessel Coordinate System

    All distance measurements are to be done to an accuracy of 5 cm both horizontally and vertically. (2 cm for transducers or better) The procedures and requirements made by the manufacturers of the external sensors connected to the EM 710 must also be taken into account. 8.2 Vessel coordinate system A Cartesian coordinate system must be defined for the vessel.

  • Page 101: Sensor Location And Alignment

    alignment Reference points must be established on the vessel at selected positions. These are needed during measurements of the sensor positions. Visual markings at these positions should be prepared and noted on the vessel drawings with XYZ coordinates in the vessel coordinate system.

  • Page 102: Heading Sensor

    Kongsberg EM 710 If there is any point in the fore-aft direction which does not change height with respect to the water line with changes in vessel speed, this will be the ideal location for the motion sensor as it will eliminate any errors from squat induced height changes which is not measured by current motion sensors.

  • Page 103: Transducer Measurements

    alignment The measurement should be taken on both sides of the vessel and averaged to remove any roll effects. Simultaneous measurements are required if the vessel is moving. 8.4 Transducer Measurements It may be most practical to perform these measurements on the transducer mounting frames before installation of the transducer modules.

  • Page 104: Transducer Position

    8.4.4 System calibration after final alignment During the sea trials (SAT), calibration surveys are required as described in the EM 710 Operator Manual. Based on the calibration parameters determined from these surveys, together with the measurements done in the dry-dock, proper values are entered into the EM 710.

  • Page 105: System Test

    • Electrical checks on page 106 • Final installation checks on page 107 After the installation has been performed and before the EM 710 system is brought into operation for the first time, a series of test procedures must be carried out to confirm a correct installation.

  • Page 106: Visual Inspection Of Units

    After the physical installation has been carried out, all the system units must be visually checked to ensure that the EM 710 units have been installed correctly. You must ensure that the units have been mounted in the correct locations, correctly orientated (e.g.

  • Page 107: Transceiver Unit

    System test 9.1.3 Transceiver Unit Perform a close visual inspection of the EM 710 Transceiver Unit cabinet. Check that the unit is installed in the correct location, and is suitably orientated to enable easy maintenance. Check that the proper mounting bolts have been used, and that proper torque has been applied.

  • Page 108: Electrical Checks

    Kongsberg EM 710 9.2 Electrical checks 9.2.1 Scope This section of the manual contains the test procedures for the EM 710 system’s power and signal interface cables. WARNING These checks must be completed before any power is switched onto the system.

  • Page 109: Operational Voltages

    System test • If a cable terminates in a plug at the unit, the test will be more easily conducted if the plug is disconnected. Select one pair of cable cores, and check that the cores are connected to the correct terminals in the unit. Connect your continuity tester to the two terminals in question and check the continuity.
  • Page 110 Check that the data from the motion sensor, the heading sensor and the positioning system are correctly read by the EM 710 and that the values are reasonable before un-docing. The steps in this procedure may be incorporated in the “Harbour Acceptance Test”...

  • Page 111: Installation Drawings

    This chapter contains installation drawings and cable details. If required, certain drawings may be supplied on AutoCad or PDF format. To order, contact Kongsberg Maritime and refer to the drawing number in the bottom right corner of the frame. Installation drawings •...

  • Page 112: Installation Drawings

    Kongsberg EM 710 10.1 Installation Drawings 10.1.1 0.5º mounting frame assembly TX module 164851/C...
  • Page 113 Installation drawings 164851/C...

  • Page 114: 1° Mounting Frame Assembly Rx Module

    Kongsberg EM 710 10.1.2 1° mounting frame assembly RX module 164851/C...
  • Page 115 Installation drawings 164851/C...

  • Page 116: 2° Mounting Frame Assembly Tx/Rx Module

    Kongsberg EM 710 10.1.3 2° mounting frame assembly TX/RX module 164851/C...
  • Page 117 Installation drawings 164851/C...

  • Page 118: 1° Gondola

    Kongsberg EM 710 10.1.4 0.5 x 1° gondola 164851/C...
  • Page 119 Installation drawings 164851/C...

  • Page 120: Transducer Tx1 Outline Dimensions

    Kongsberg EM 710 10.1.5 Transducer TX1 Outline dimensions 164851/C...
  • Page 121 Installation drawings 164851/C...

  • Page 122: Transducer Tx2 Outline Dimensions

    Kongsberg EM 710 10.1.6 Transducer TX2 Outline dimensions 164851/C...
  • Page 123 Installation drawings 164851/C...

  • Page 124: Transducer Rx1 Outline Dimensions

    Kongsberg EM 710 10.1.7 Transducer RX1 Outline dimensions 164851/C...
  • Page 125 Installation drawings 164851/C...

  • Page 126: Transducer Rx2 Outline Dimensions

    Kongsberg EM 710 10.1.8 Transducer RX2 Outline dimensions 164851/C...
  • Page 127 Installation drawings 164851/C...

  • Page 128: Hws Operator Station Outline Dimensions

    Kongsberg EM 710 10.1.9 HWS Operator Station Outline dimensions 164851/C...

  • Page 129: Transceiver Unit Outline Dimensions

    Installation drawings 10.1.10 Transceiver Unit Outline dimensions 164851/C...
  • Page 130 Kongsberg EM 710 164851/C...

  • Page 131: Transceiver Unit 2 X 2 Degree System - Outline Dimensions

    Installation drawings 10.1.11 Transceiver Unit 2 x 2 degree system – Outline dimensions 164851/C...
  • Page 132 Kongsberg EM 710 164851/C...

  • Page 133: Transceiver Unit Mounting Bracket

    Installation drawings 10.1.12 Transceiver Unit mounting bracket 164851/C...

  • Page 134: Junction Box - Outline Dimensions

    Kongsberg EM 710 10.1.13 Junction Box – outline dimensions 164851/C...

  • Page 135: Transceiver Unit Cable Clamp

    Installation drawings 10.1.14 Transceiver Unit cable clamp 164851/C...

  • Page 136: Cable Drawings

    Kongsberg EM 710 10.2 Cable Drawings 10.2.1 Generic RS-232 Serial line This cable comprises a multi purpose serial line. It provides interface with any peripheral unit. One end of the cable connects to the local unit with a 9-pin D-connector, while the other...

  • Page 137: Generic Coax Cable

    Installation drawings 10.2.2 Generic coax cable This cable is used for connections to peripheral units or networks. Local Peripheral unit to Coax connector be connected as described in applicable documentation Live Screen/Ground Live W105 Coax connection to peripheral unit or network Rev.E 164851/C...

  • Page 138: Sound Speed Probe Interface

    Kongsberg EM 710 10.2.3 Sound speed probe interface This cable provides the interconnection between the Processor Unit work station and the sound speed probe. This connection is normally made through a small junction box and with a power supply as indicated in the drawing.

  • Page 139: Or Rs-422/485 Serial Line

    Installation drawings 10.2.4 RS-232 or RS-422/485 serial line This cable comprises a multi-purpose serial line. It provides interface with any peripheral unit. One end of the cable connects to the local unit (DTE) with a 9–pin “D” connector, while the other connects to the peripheral (DCE) as described in the peripheral unit’s documentation.

  • Page 140: Trigger In/Out (Not Used)

    Kongsberg EM 710 10.2.5 Trigger in/out (not used) This cable is used to synchronize the echo sounder’s transmissions with other acoustic instruments. It is terminated in a standard 9–pin D-sub connector at the Transceiver Unit end. The cable is normally not used.

  • Page 141: Internal Control Signals

    Installation drawings 10.2.6 Internal control signals This cable is used to transmit synchronization signals and TX enable signals. It is terminated in a standard 15–pin D-sub connector. Local 15-pin D connector Remote unit to be TX Enable (TXEN_TX+) connected as described in TX Enable (TXEN_TX-) applicable documentation Synchronization (SYNC_TX+)

  • Page 142: Remote Control And External Trig

    Kongsberg EM 710 10.2.7 Remote control and external trig This cable connects the EM 710 Transceiver Unit to a remote On/Off switch, normally located in a Remote Control junction box. The same connection allows trigger output and remote control (synchronization) with a serial line.

  • Page 143: Standard Ac Power Cable

    Installation drawings 10.2.8 Standard AC power cable This cable is a standard three-wire power cable. The instrument end is terminated in a standard IEC female socket, while the other end is terminated in a plug suitable for the local standard. IEC plug Neutral (normally Blue) Use the applicable plug to suit...

  • Page 144: Ethernet Cable With Rj45

    Kongsberg EM 710 10.2.9 Ethernet cable with RJ45 This cable is used to provide standard Ethernet connections. Note that various categories exists. Cat.5 E and Cat.6 cables are used in local area networks with date rate exceeding 100 Mbit/s. Ethernet cables are available commercially in different lengths, colours and categories.

  • Page 145: Vga/Svga Display Cable

    Installation drawings 10.2.10 VGA/SVGA Display cable This is a standard commercial SVGA/VGA display cable used to connect the video signals. The cable is normally physically attached to the display monitor, and it is provided with the plug readily attached. If it is supplied as a separate cable, it is fitted with plugs on either end.

  • Page 146: Usb Cable

    Kongsberg EM 710 10.2.11 USB cable Just about any computer that you buy today comes with one or more Universal Serial Bus (USB) connectors on the back. These connectors let you attach everything from mouse to printers to your computer quickly and easily. Since the operating system supports USB, installation of device drivers is also easy.

  • Page 147: Keyboard Cable

    Installation drawings 10.2.12 Keyboard cable This is a standard keyboard cable. The cable is normally physically connected to the keyboard. It is terminated in a plug suited to fit the computer. Several keyboard types are available for different languages and hardware platforms. Both the keyboard and the attached cable are commercial items.

  • Page 148: Mouse Cable

    Kongsberg EM 710 10.2.13 Mouse cable This is a standard mouse (or other pointing device) cable. It is physically connected to the mouse, and terminated in a plug suited to fit the computer. Several mouse and pointing device types are available with two or three buttons, and with or without a scroll wheel.

  • Page 149: Parallel Printer

    Installation drawings 10.2.14 Parallel printer This is a standard “Centronics” parallel printer cable. It is provided ready-made with printers, and also obtainable from commercial retailers. Parallel port connector 25-pin D-connector (IEEE 1284-A) Strobe The socket on the rear Data 0 side of the computer is normally a 25-pin female Data 1...

  • Page 150: Rx/Tx Transducer Cables

    Kongsberg EM 710 10.2.15 RX/TX transducer cables These are the cables from the EM 710 Transceiver Unit to the RX/TX transducer arrays. Each cable is terminated at the cabinet’s rear through a 78–pin D-sub connector. At the transducer end, the cables are moulded to their respective arrays.
  • Page 151 Installation drawings Table 9 RX transducer cable pin assignment (cont’d.) Module Element Pin no. Wire colour code White/black Brown/black Grey/green Yellow/grey Pink/green Yellow/pink Green/blue Yellow/blue Grey/blue Pink/blue Grey/red Pink/red Grey/black Pink/black Blue/black Red/black White Brown Green Yellow Grey Pink Blue Black Violet Grey/pink...
  • Page 152 Kongsberg EM 710 Table 10 TX transducer cable pin assignment (cont’d.) Element Pin no. Wire colour code White/black Brown/black Grey/green Yellow/grey Pink/green Yellow/pink Green/blue Yellow/blue Green/red Yellow/red Green/black Yellow/black Grey/blue Pink/blue Grey/red Pink/red Grey/black Pink/black Blue/black Red/black White Brown Yellow...
  • Page 153 Installation drawings 164851/C...
  • Page 154 © January 2009 Kongsberg Maritime Ko n g s b e r g M a r it im e A S t r a n d p r o m e n a d e n 5 0 Te le p h o n e : + 4 7 3 3 0 2 3 8 0 0 P.

Table of Contents
