Summary of Contents for Badger Basket BLA20

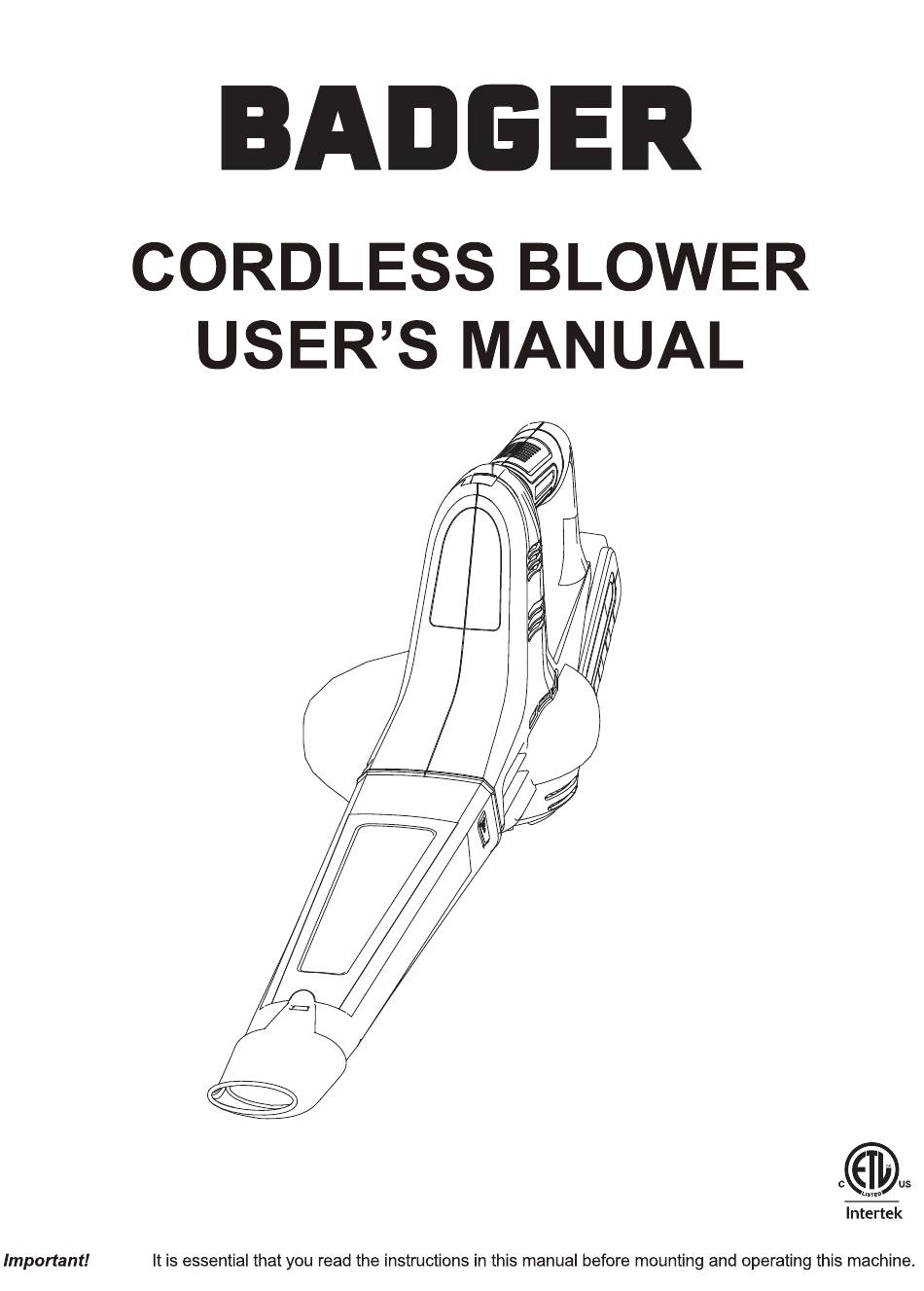

- Page 1 5001154...
- Page 2 Description of the parts 1 Blow tube 2 Blow tube connection pin 3 Handle 4 On/off switch 5 Air Vents 6 Battery 7 Main body 8 Charging device 9 Charging station 10 Nozzle mouth 11 Batte ry interlock 12 Standard battery charger...
-
Page 3: Before Using
SAFETY INFORMATION WARNING Read and understand all instructions before using this product. Failure to follow all instructions listed l injury. BEFORE USING • Use extra care when cleaning on stairs. • Do not use on wet surfaces. • Do not allow to be used as a toy. Close attention is necessary when used by or near children. •... -
Page 4: Safety Information
SAFETY INFORMATION • For household use only. • Use only 20 V Badger batteries (LBB202/LBB204). • Use only Badgercharger(ModelCGA202US/CGA20US). • Do not operate this unit when you are tired, ill, or under the • Do not operate in poor lighting. •... - Page 5 SAFETY INFORMATION WARNING (PROPOSITION 65) • • • PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
- Page 6 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their mean- ing. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOLS NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz...
-
Page 7: Specifications
Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection that is marked to comply with ANSI Z87.1. ASSEMBLY INSTRUCTIONS SPECIFICATIONS Product Specifications Model BLA20 20Volt DC Motor 134MPH Air Speed Air Volume... - Page 8 ASSEMBLY INSTRUCTIONS Installing the blow tube See Figure 2. WARNING Do not use the device until the blow tube has been properly mounted on the blower housing. Slightly push the nozzle mouth(10) to the tube (1)until the lockpin(1.1) lock into the hole of the nozzle ■...
- Page 9 ASSEMBLY INSTRUCTIONS It is not required to monitor the charging time. ■ Pull the plug of the charging unit if it is not in use. ■ If the battery is not lit up, check if there is electric current in the socket. If the charging of the batteries ■...
-
Page 10: Care And Maintenance
OPERATION INSTRUCTIONS Blowing function Before setting the device into operation, always check ■ Examine the work area before starting work. Use a rake or broom to remove all objects or wastes ■ which could be hurled away by the leaf blower. If needed, lightly moisten dusty ground.
