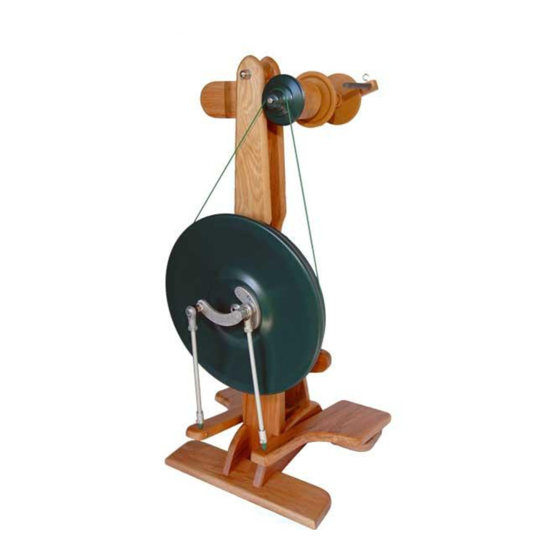

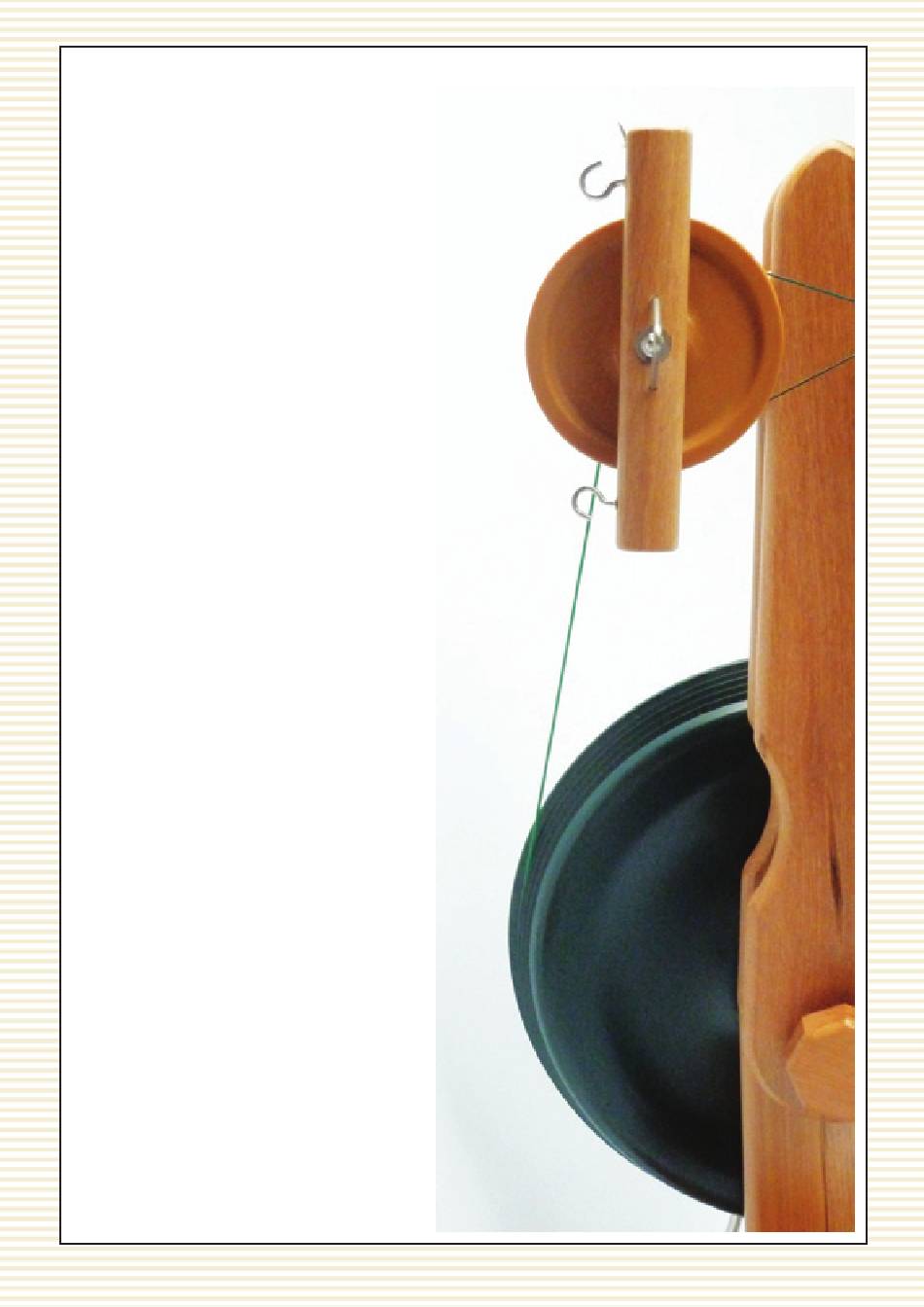

- Page 1 Your new Suzie Professional spinning wheel majacraft all you need to spin your dreams... majacraft...
- Page 2 Thank you for choosing Majacraft, it is your belief in us that drive our innovation and creativity in building captivating tools for you.
- Page 3 Assembling a Majacraft Suzie Professional These instructions demonstrate how to assemble your Majacraft Suzie Professional spinning wheel 1. Prepare the components We recommend that you find a clear work area where you can lay out all the components for working on them.
- Page 4 Check the star washer is still on the drive shaft. Now slide the drive wheel and drive shaft back into the stem/handle assembly. When the drive shaft is in place then screw the front handle nut on and tighten it up. majacraft...
- Page 5 The drive wheel on the Stem/Handle assembly should go on the same side of the Base assembly as the foot with the angles cut on the ends. 4. Fit the Pedals to the Base Required: 12 - Gold 25mm (1”) screws (in the hardware bag) Posidrive screwdriver majacraft...
- Page 6 JCB bolt firmly. There is no need to over- tighten this. The spinning head can be raised or lowered to suit the tensioning of the drive belt and the height at which you wish to spin. majacraft...
- Page 7 Align the holes on the drive wheel with the holes in the crank assembly and screw it into place using the silver 32mm screws. It is recommended that you insert the centre screw first. 8. Conrods to Pedals Required: Posidrive screwdriver majacraft...
- Page 8 When the rod end is aligned correctly, screw the 25mm screw back into place. The screw should only be tightened until the head just touches the side of the pedal. DO NOT OVERTIGHTEN! CORRECT INCORRECT majacraft...
- Page 9 (assuming you are right handed). It may also be treadled on by holding the flyer in one hand and treadling the wheel in an anticlockwise direction. 10. Bobbin Bars Required: 2 - Bobbin bars (in the hardware bag) majacraft...
- Page 10 Suzie Professional looking beautiful into the future. Your Majacraft Suzie Professional is now assembled and you are ready to start on a new spinning adventure! From the team at Majacraft, we wish you great spinning in the future.
- Page 11 Notes majacraft...
- Page 12 Notes majacraft suzie_professional assembly_1.05_18-07-2013...
