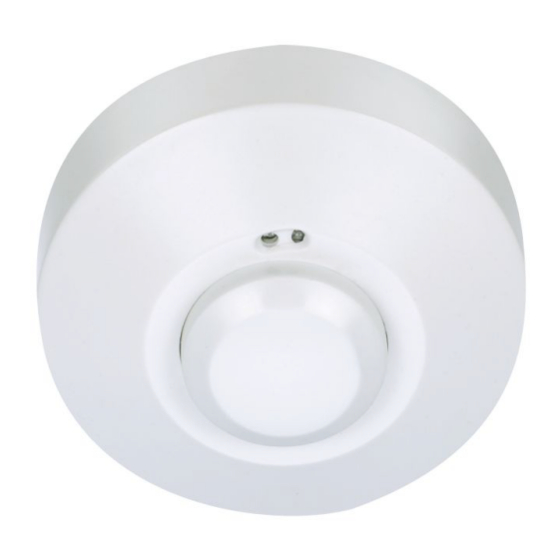

FMS-13500 MOTION SENSOR INSTRUCTIONS
SUMMARY
The FMS-13500 Microwave Sensor is an active motion detector, emitting high frequency electro-magnetic
waves, and receives their echo.
A microprocessor then triggers the "switch light ON" command. Detection is possible through doors, panes
of glass or thin walls in most applications.
This is an ultra-reliable sensor, especially as there are no gaps in the detection zone.
SPE CI FI CAT IO NS
Power Source:
Power Frequency:
HF System:
Transmission Power:
Time Delay:
Rated Load:
Detection Distance:
Detection Range:
Manual Override:
Weatherproof Rating:
Warranty:
No of Wires:
INFO@MATE LE CAU ST R ALI A. CO M .AU.
220V - 240V AC
50HZ
5.8Ghz CW Radar ISM Band
<10mW
Min 5 seconds
Max 12 minutes
1200W (Incandescent)
200W (Fluoro)
2-20m diameter (adjustable)
o
360
No
IP20
3 year
3 wire
M ATE LE C AU S TR AL I A. P 18 00 2 8 1 282. F 1300 281 28 2
W WW.MAT EL ECAUST R ALI A. CO M.AU
Advertisement
Table of Contents
Related Manuals for Matelec FMS-13500
Summary of Contents for Matelec FMS-13500
- Page 1 FMS-13500 MOTION SENSOR INSTRUCTIONS SUMMARY The FMS-13500 Microwave Sensor is an active motion detector, emitting high frequency electro-magnetic waves, and receives their echo. A microprocessor then triggers the “switch light ON” command. Detection is possible through doors, panes of glass or thin walls in most applications.
- Page 2 I N STAL L ATI ON All electrical installations must be carried out by a suitably quali ed and registered electrician 1. Always isolate mains power prior to installation. 2. Remove cover by turning anti-clockwise and remove the 2 screws as shown in Fig 1. 3.
- Page 3 CALI BR AT I O N Reach setting (Sensitivity) Reach is the term used to describe the diameter of the more or less circular detection zone produced on the ground after mounting the sensor at a height of 2.5m. Turn the reach control fully anti-clockwise to select minimum reach (approx. 2m dia), and fully clockwise to select maximum reach (approx.
