  • Page 1 TechMaster User Instructions...

  • Page 2: Company

    Founded in 1983 with the aim of providing a complete range of professional products, Tecnosicurezza is now a consolidated reality in the field of locks and security systems for safes. The experience gained in over 35 years of activity in the security sector has allowed the designing and manufacturing of high technology and reliability systems, which continue to receive the approval of an increasingly demanding clientele.

  • Page 3: Table Of Contents

    User instructions TechMaster Table of contents COMPANY TABLE OF CONTENTS IMPORTANT NOTES! GENERAL INFORMATION OVERVIEW FUNCTIONS OPENING THE LOCKS SERS VERRIDE USERS OPENING WITHOUT TIME DELAY SERS OPENING WITH TIME DELAY ANAGER VERRIDE ANAGER OPENING WITHOUT TIME DELAY ANAGER VERRIDE...
  • Page 4 User instructions TechMaster HANGE CODE FOR ASTER TIME MENU PENING EXTENSION MMEDIATE CONFIGURATION MENU NSTALL OCKS EMOVE OCKS OCK RECLOSURE MODE I/O I ONFIGURE NTERFACE I/O I EMOVE NTERFACE ISPLAY CONTRAST EYPAD ANGUAGE EMBRANE TEST YSTEM NOTES CONTACTS 4 of 27...

  • Page 5: Important Notes

    User instructions TechMaster Important notes  Before installing this product, please read carefully the installation and operating instructions.  Locks have been designed to correctly operate in a temperature range from -5°C to + 50°C and and in an environment with non-condensing humidity between 25% and 90%.

  • Page 6: General Information

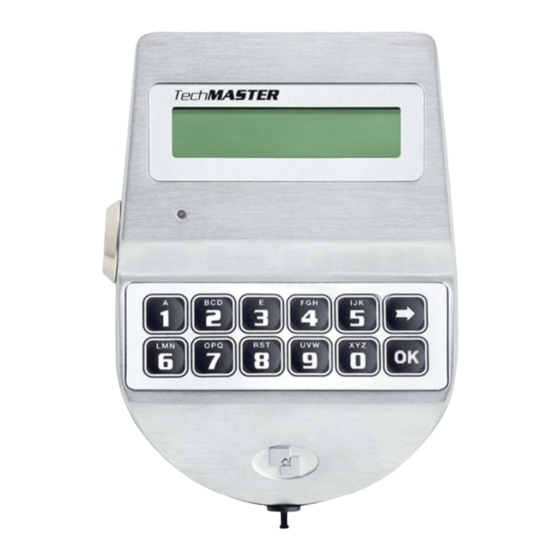

    User instructions TechMaster General information Using your keypad  Press any button to power up the keypad. LCD which shows: ENTER CODE X X – X X X X X X If more locks are installed, LCD shows: SELECT LOCK Enter the lock number to select it.
  • Page 7 User instructions TechMaster  If a dynamic/activation code is entered more than 30 minutes WRONG DYNAMIC CODE before its beginning validity time, LCD shows:  If a dynamic/activation code is entered more than 30 minutes WRONG DYNAMIC later than its beginning validity time, LCD shows: CODE ...
  • Page 8 User instructions TechMaster Users from 02 to 90: 02-020202, 03-030303, and so on. They always open with time delay if set. Override users: thanks to the setup software, it is possible to configure users in between 10 and 90 (10-101010, 11-111111, and so on) as override users. They always open without time delay.

  • Page 9: Overview Functions

    The lock is able to save the last 6000 operations with time, date, user and operations description. The keypad can save the last 250 operations. It’s possible to download the events for locks and keypad by using the Tecnosicurezza DMT Audit software. For further information refer to the IU_DMT_Audit_XX.

  • Page 10: Opening The Locks

    Some options/characteristics reported in this user manual, can only be used if previously enabled through the setup software. Thus, please refer to the user manual IU_TechMaster_setup_XX. Please contact Tecnosicurezza for further information. Opening the locks Users (or Override users): opening without time delay Power up the keypad.

  • Page 11: Opening With Dynamic Codes (Dallas Key Option)

    User instructions TechMaster X X – X X X X X X MANAGER Press for opening with Manager code or press it two times for X X X X X X opening with Manager Ovr code. LCD shows: Enter Manager code/Manager Ovr code and insert the Dallas key, if OPEN set-up.

  • Page 12: Dual Mode Opening Without Time Delay

    User instructions TechMaster deleted). In this case indeed LCD shows: Dual mode opening without time delay Power up the keypad. Enter an opening code and insert the Dallas 2° USER CODE key, if set-up. LCD shows: X X – X X X X X X Enter the second opening code and insert the Dallas key, if set-up.

  • Page 13: Time Lock Settings

    User instructions TechMaster WARNING: it is recommended to enter this menu always with the door open. AUTOMATIC DST Power up the keypad. Enter the Master menu. Press until LCD shows: Press one time and then press to select between ON and OFF.

  • Page 14: Weekly Time Lock Settings - Verify Or Delete Values

    User instructions TechMaster interval from 08.00 to 14.00 from Monday to Friday: the safe can be only opened from 08.00 to 14.00 and only in those days, it cannot be opened before 08.00 and after 14.00. Moreover, safe cannot be opened on Saturdays and Sundays).

  • Page 15: Opening Periods - Add New Values

    User instructions TechMaster Press to delete all values entered. Repeat the steps above for each closing period. Closing periods (OFF days) – Verify or delete values WEEKLY TIME LOCK Enter Time Lock menu and press . LCD shows: T1 SETTING...

  • Page 16: Pc Connection

    User instructions TechMaster Opening periods - Verify or delete values WEEKLY TIME LOCK Enter Time Lock menu and press . LCD shows: T1 SETTING OPENING PERIODS Press until the LCD shows: SETTINGS ADD NEW VALUES Press . LCD shows: VERIFY OR DELETE Press .

  • Page 17: Dynamic Codes - Enabling/Disabling

    User instructions TechMaster Press to confirm. Then enter the new Manager code and confirm OPERATION DONE it. LCD shows: If the Manager is already installed, press disabling/deleting/installing it. Then press to confirm. Dynamic codes – Enabling/Disabling WARNING: it is recommended to always perform this operation with door open, to enable/disable the dynamic codes.

  • Page 18: Users Management

    User instructions TechMaster Users Management USERS MANAGEMENT Power up the keypad. Enter Manager menu and press until LCD 0 1 – X X X X X X shows: 02 03 04 05 06 Press and press to scroll users list or enter user ID.

  • Page 19: Variable Time Delay - Verify Or Delete Values

    User instructions TechMaster hh:mm Enter values for starting time and ending time in which Variable Time Delay must be active and then enter the values of Variable Time Delay. Press to confirm. LCD shows the next day of the week, proposing the same time values.

  • Page 20: Override Manager Menu

    User instructions TechMaster Override Manager menu Power up the keypad. OVR MANAGER MENU X X X X X X Press , then press until LCD shows: Enter OVR Manager code (default code 6-5-4-3-2-1). Override Users management WARNING: to install new override users, lock must be open.

  • Page 21: Change Code For Override Manager

    User instructions TechMaster Change code for Manager CHANGE MANAGER Power up the keypad. Access Change Code menu and press CODE Then, press until LCD shows: OLD CODE Press to confirm. LCD shows: X X X X X X Enter the old code e insert the Dallas key (if set up).

  • Page 22: Opening Extension

    User instructions TechMaster Opening extension WARNING: before using this function, at least one time lock must be programmed. MANAGER CODE Power up the keypad. Access Time Menu and press . LCD shows: X X – X X X X X X Enter Manager code.

  • Page 23: Remove Locks

    User instructions TechMaster If the lock selected is already installed, LCD shows: LOCK ALREADY INSTALLED If the lock selected is not connected with the keypad, LCD shows: LOCK X DOES NOT ANSWER If the lock selected is instead connected with the keypad (but not...

  • Page 24: Configure I/O Interface

    User instructions TechMaster Press to confirm. With MANUAL, lock can be closed by pressing and holding for 2 seconds. With AUTOMATIC instead, lock automatically re-closes after the time set with Setup software. Configure I/O Interface Power up the keypad. Access Configuration Menu. LCD shows:...

  • Page 25: Membrane Test

    User instructions TechMaster Press until the LCD shows: LANGUAGE LANGUAGE Press . LCD shows the current language set up: ENGLISH Press to change the language and press to confirm. Membrane test Power up the keypad. Access Configuration Menu. LCD shows:...
  • Page 26 User instructions TechMaster 26 of 27 IU_ TechMaster_04_eng...

  • Page 27: Contacts

    Contacts GLOBAL HEADQUARTERS USA HEADQUARTERS SPAIN HEADQUARTERS Tecnosicurezza SpA Tecnosicurezza Inc. Tecnosicurezza Sa Via Cesare Battisti, 276 50, Thomas Lane C/Menor, 4 - Nave 10 37057 San Giovanni Lupatoto Pol.
