Enerwave WF500D Wi-Fi Installation Instructions

INSTALLATION INSTRUCTIONS
Model: WF500D Wi-Fi
Smart Dimmer Switch

FEATURES

• Control your lights with your smart devices without the need of any
hub
• Easy to configure, easy to use free smart App by Enerwave
• Save energy by automating the ON/OFF times or using the schedule
•
Works with Amazon Alexa, Google Assistant through the Tuya App
• Single Pole or 3-Way compatible
• Compatible with dimmable LED, self-ballasted bulbs,
incandescent and halogen bulbs. Do NOT use CFL bulbs

SPECIFICATIONS

Voltage...........................................................................................120VAC, 60Hz
Incandescent................................................................................................600W
LED/ Self Ballasted .............................................................................2A (150W)
Protocol.......................................................................................IEEE 802.1b/g/n
Wireless Type............................................................................................2.4GHz
System Requirements................................Android 4.1 or higher/ iOS 8 or higher
Operating Temperature..........................................................32°-104°F (0°-40°C)

REQUIREMENTS

• Secure 2.4GHz Wi-Fi network connection
• Smart Device such as a Smart Phone or Tablet with an operating
system of Android version 4.1 or higher or iOS 8 or higher
• Installation of the ENERWAVE Smart App on the Smart Device
• Neutral wire required
1

WARNING

Turn the POWER OFF at the circuit breaker before installing the
Smart Dimmer
Read and understand these instructions before installing. This device
is intended for installation in accordance with the National Electric
Code and local regulations. It is recommended that a
qualified electrician performs this installation.
Use copper wire only
Only Use Wires with Minimum Temperature Rating 75°C (167°F)

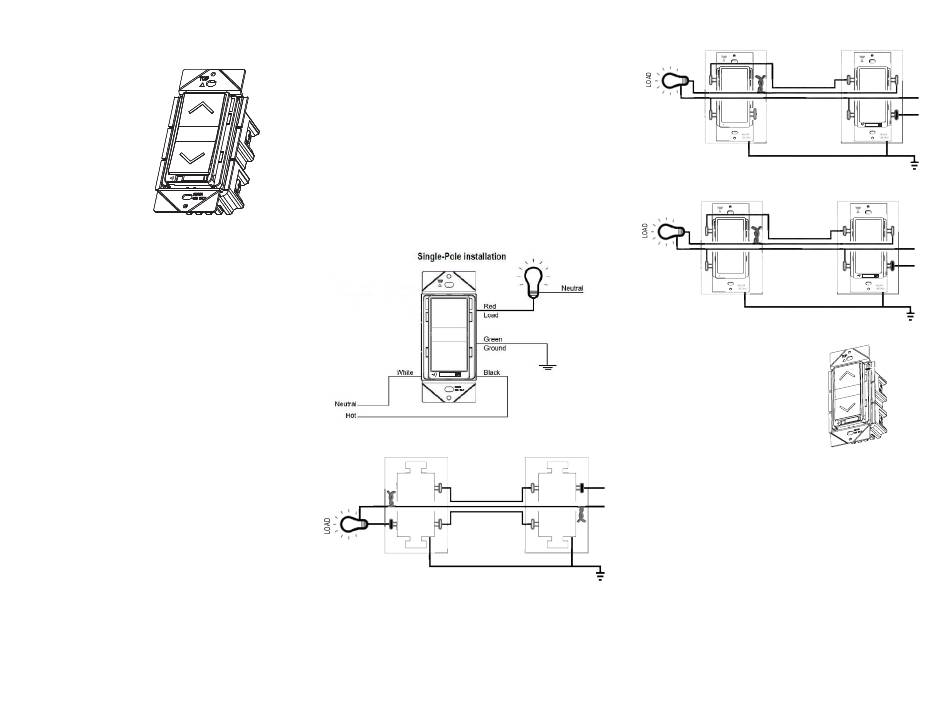

WIRING DIRECTIONS

First, find out if you will be controlling the lights from one location or multiple locations.
Next, identify all the wires. Once you've identified the wires, follow the diagram below
for wiring.
COMMON 3-WAY WIRING
SWITCH
ONE
TRAVELER A
NEUTRAL
TRAVELER B
LOAD
DIAGRAM 1
Step 1. Identify all your wires (DIAGRAM 1). Label the wires or draw a diagram of existing wires.
Step 2. Convert the TRAVELER B wire to the LOAD wire. To do so, take the LOAD wire and
TRAVELER B wires off SWITCH 1 and connect them together with a wire cap (DIAGRAM 2).
Step 3. Connect the other end of the TRAVELER B wire to the LOAD terminal on the WF500D
Step 4. Connect the NEUTRAL wire to both switches.
Step 5. Connect the TRAVELER A wire from the WF500D to one of the terminals on the 3-way switch.
Step 6. Connect the HOT wire to the HOT terminal on the WF500D.
Step 7. Connect the GROUND wires to the GROUND terminals on both switches.
2
SWITCH
NEUTRAL
RETROFIT WIRING with WF3K
WF3K
NEUTRAL

AIR-GAP SWITCH FUNCTION

The Air-Gap Switch on the bottom of
the smart dimmer is designed to
keep the circuit open so no electricity
reaches the load as a safety feature
when replacing dimmable bulbs. To
pair the smart dimmer with the
Enerwave App and to operate the
connected load normally, please
verify that the Air-Gap switch is all
the way to the right position.

FCC COMPLIANCE STATEMENT

FCC Grant of Equipment Authorizations of this device and transmitters installed in this device can be found
SWITCH
at FCC website by entering the FCC ID number on the device.
HOT
TWO
Caution: Changes or modifications not expressly approved by the part responsible for compliance could
void the user's right to operate the equipment. This device complies with Part 15 of the FCC Rules.
NEUTRAL
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation of the device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
GROUND
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
RETROFIT WIRING
LOAD
WF500D
TRAVELER
ONE
DIAGRAM 2
GROUND
LOAD
TRAVELER WF500D
DIAGRAM 3
GROUND
3
NEUTRAL
HOT
NEUTRAL
HOT
