EXTERNAL SPEAKER/RINGER AMPLIFIER (BESCB1A)
DKT/IPT
Refer to Figure 1-13 for
Wiring connections.
Note:
Some BESCB1A units were shipped with silk screen marks showing the DKT/IPT
connections on terminals 3, 5, and 7, instead of 3, 4, and 5 as shown above. If you have
one of these units connect to the HESC1A-65 cable as shown on the unit; 3 (+), 5 (L2),
and 7 (-).

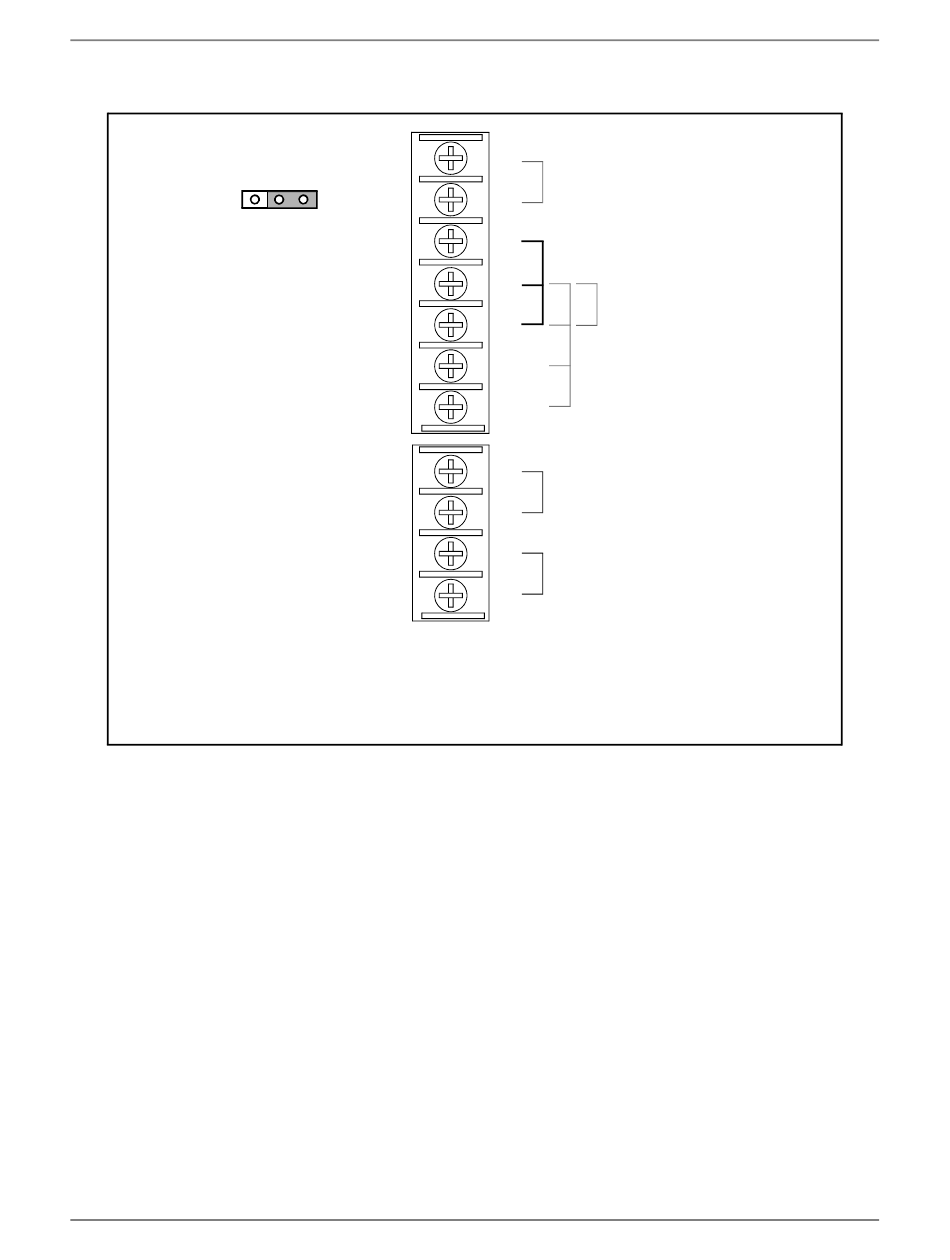

Figure 1-11 BESCB1A Circuit Card Terminals
IPT Installation Manual Feb,, 2015
1
IOU
2
3
4
5
6
7
8
9
10
11
Telephone to External Speaker Connection
To IOU (In Talkback)
(See Note)
To DKT/IPT
To IOU (No Talkback)
To MDFB
8 - 16 ohm
To External Speaker
2K - 10K ohm
