WALL MOUNTING

WALL MOUNTING
Wall mounting requires two pan head screws spaced vertically 100 mm (3
ADD-ON MODULE
INSTALLATION
ADM Installation
procedure:
IPT Installation Manual Feb,, 2015

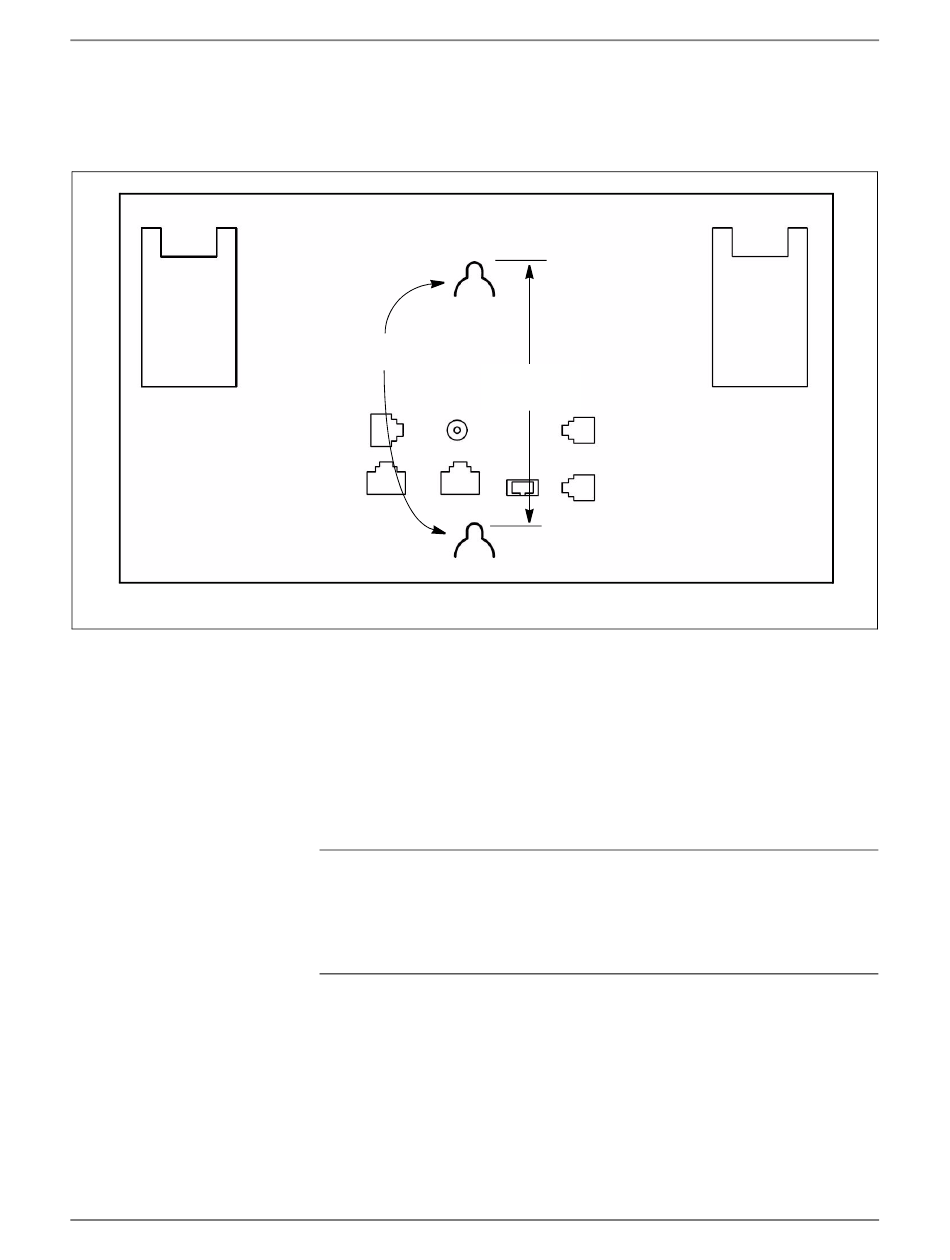

All of the IP5000-series telephones wall mount in the same manner.
Attach two screws to the wall, slide the telephone down over the screw
heads to secure.
Wall Mount
Holes
(100 mm)
Each add-on module is packaged with the metal brackets and screws
used to attach the ADM to an IP5000-series telephone, or another ADM.
The ADM package also includes the short line cord to connect the
telephone to the ADM or the ADM to a second ADM.
The ADM and telephone bases are connected together with metal
brackets to form a single unit. The ADM and telephones tilt independently.
CAUTION! Unplug the LAN cable (and power cable if equipped)
from the IP5000-series telephone before attaching the
ADM. Plugging the ADM cable in while the IP5000-series
telephone is powered will damage the telephone, ADM or
both.
1. Unplug the LAN cable from the telephone. If equipped with a local
power adapter unplug the power cord from the IP telephone.
2. Use the brackets and screws included in the box to attach the ADM
base to the telephone base. Refer to
3. Use the cable included with the ADM to connect from the telephone
ADM connector to the ADM 'IN" connector. If a second ADM is

ADM Installation procedure:

3.94 in.
Figure
15
/ inches) apart.
16
1-4.
