Game Winner PL200GW Instruction Manual

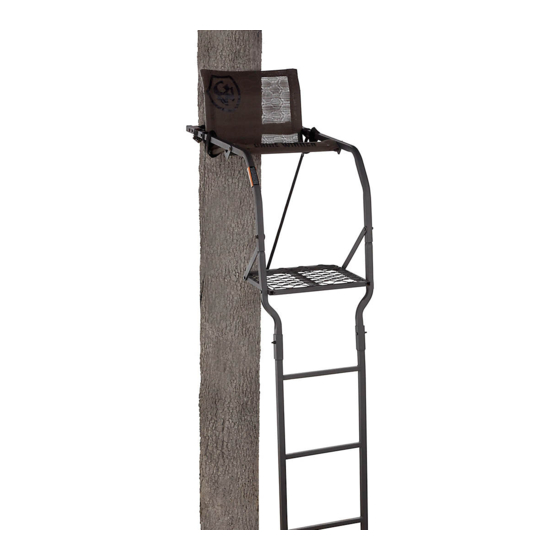

15’ ladder stand
Hide thumbs
Table of Contents

Advertisement

Quick Links

PRODUCT MEETS
INDUSTRY STANDARDS
RECOGNIZED BY
PARTICIPATING MEMBER
!
ATTENTION
WATCH THIS SAFETY VIDEO BEFORE USING!
WARNING!
FALL HAZARD!
FALLS FROM
HEIGHTS MAY
RESULT IN SERIOUS
INJURY OR DEATH!
Instruction Manual
15' LADDER STAND
MODEL #: PL200GW
STYLE #: 159020
YOU MUST READ ALL WRITTEN INSTRUCTIONS
AND WATCH THIS SAFETY VIDEO BEFORE USING!
Scan
www.standsafety.com/r3
Visit
or
For parts call our Customer Service Center at 800-345-6007
Business Hours: 8:00 am to 5:00 pm CST
© 2020 RETI All Rights Reserved | 34517 REV1 | 01/31/2020 | C/N: 34480
Maximum Height
Maximum Field Rating
Tree Diameter Range
Wear Your Harness!
Scan the QR code with your smart
phone, tablet or similar device.
OR
Type the website address into your web
browser to view an important safety
video before using this product.
LADDER STAND SAFETY
50
15' 4" to seat
300 lbs
12" to 20"
GAS
RA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL200GW and is the answer not in the manual?

Questions and answers

Related Manuals for Game Winner PL200GW

Summary of Contents for Game Winner PL200GW

  • Page 1 PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY PARTICIPATING MEMBER Instruction Manual 15’ LADDER STAND MODEL #: PL200GW STYLE #: 159020 Maximum Height 15’ 4” to seat Maximum Field Rating 300 lbs Tree Diameter Range 12" to 20" Wear Your Harness! YOU MUST READ ALL WRITTEN INSTRUCTIONS...

  • Page 2: Table Of Contents

    Instruction Manual : 15’ LADDER STAND TABLE OF CONTENTS PAGE Warranty Information ..........................................2 Warnings ..............................................3-4 Parts List ..............................................5-7 Tools Required ............................................8 Hardware ..............................................8 Product Diagram............................................9 Finished Ladder ............................................10 Assembly Instructions ........................................11-14 Installation and Use Instructions ....................................16-18 Inspections and Maintenance/Notes Page ..................................19 Note: Before beginning assembly of product, make sure all parts are present.

  • Page 3: Warnings

    Instruction Manual : 15’ LADDER STAND READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL PL200GW WARNING MAXIMUM USE HEIGHT - 15’ 4” TO SEAT HEIGHT Never jump or bounce on a treestand to seat it to the tree.
  • Page 4 Instruction Manual : 15’ LADDER STAND WARNING Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and stepping onto the platform. Never exceed the stated maximum use height. Do Not use this product until you have watched the safety video, understand it, and practiced the techniques for safe hunting discussed in this video.

  • Page 5: Parts List

    Instruction Manual : 15’ LADDER STAND PARTS LIST Item Part No. Image Description BOTTOM LADDER # 34482 SECTION MIDDLE LADDER # 34484 SECTION FLARED # 34485 PLATFORM RAIL # 32085 PLATFORM TOP LADDER # 34486 SECTION # 32768 SEAT RAIL...
  • Page 6 Instruction Manual : 15’ LADDER STAND Item Part No. Image Description STABILIZER BAR # 33142 EXTENSION # 33143 SUPPORT BAR # 33144 STABILIZER BAR # 33145 SEAT SIDE RAIL # 33146 TREE BLADE # 33147 SPREADER BAR...
  • Page 7 Instruction Manual : 15’ LADDER STAND Item Part No. Image Description # 32193 SEWN SEAT # MK011- 6’ RATCHET STRAP 1601 # 15031 SAFETY HARNESS # MK034- 16’ CRISS-CROSS 4511 STRAP # MK021- 6’ CAM BUCKLE 1401 STRAP...

  • Page 8: Tools Required

    Instruction Manual : 15’ LADDER STAND TOOLS REQUIRED (INCLUDED) # 32563 7/16” WRENCHES HARDWARE LIST (TO SCALE) 18 MM SQUARE # 29714 PLUG # 48042B WING NUT 1/4-20 BOLT 1/4-20 X # 48240B 1-1/2 IN BOLT 1/4-20 X # 48250B 1-3/4 IN # 48261B WASHER 1/4 IN...

  • Page 9: Product Diagram

    Instruction Manual : 15’ LADDER STAND PRODUCT DIAGRAM...

  • Page 10: Finished Ladder

    Instruction Manual : 15’ LADDER STAND FINISHED LADDER ASSEMBLED PLATFORM RATCHET STRAP SECTION TOP LADDER SECTION CRISS-CROSS STRAPS STABILIZER BAR CAM STRAP MIDDLE LADDER SECTION WITH STABILIZER SLOT STABILIZER BAR BOTTOM LADDER SECTION All assembly must be done in the order on the following page at ground level before uprighting.

  • Page 11: Assembly Instructions

    Instruction Manual : 15’ LADDER STAND ASSEMBLY INSTRUCTIONS Do not tighten any nut and bolt combinations completely until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the locknut on the bolt while helping alignment of all parts! After all parts are assembled together, all nut and bolt combinations must be completely tightened.
  • Page 12 Instruction Manual : 15’ LADDER STAND STEP 3 Assemble the seat rail/seat assembly and seat spreader bar (12) to the seat side rails (10) using four 1/4-20 X 2-1/2 IN bolts (23) and four 1/4-20 nuts (24). SEE FIGURE 3. NOTE: Be sure the parts and hardware orientation is correct.
  • Page 13 Instruction Manual : 15’ LADDER STAND STEP 5 Take foot platform (4) and align holes in the outer edges with holes in free end of support bar (8), and flared platform rails (3) as shown in FIGURE 5. Secure support bars (8) to rear of the foot platform (4) with two 1/4 -20 X 1-1/2 IN bolts (20), washers (22) and 1/4-20 nuts (24).
  • Page 14 Instruction Manual : 15’ LADDER STAND STEP 7 Attach the stabilizer bar extension tube (7) to the middle ladder section (2) through the mounting bracket with one 1/4-20 X 1-1/2 IN bolts (20) and one 1/4-20 nut (24). SEE FIGURE 7. Slide the stabilizer bar (9) into the extension tube (7) and attach the two pieces together using one 1/4-20 X 1-1/2 IN bolt (20) and one wing nut (19).
  • Page 15 Instruction Manual : 15’ LADDER STAND READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Always maintain three (3) points of contact when Double check assembly steps to be certain you have correctly assembled this product. climbing a ladder treestand.

  • Page 16: Installation And Use Instructions

    Instruction Manual : 15’ LADDER STAND INSTALLATION AND USE INSTRUCTIONS WARNING During installation and removal of ladder treestands, you must always and properly use the included Full Body Harness (Fall Arrest System). Refer to the Full Body Harness instructions Never use a treestand on a dead, leaning, diseased or included with this product for proper use.
  • Page 17 Instruction Manual : 15’ LADDER STAND STEP 3 4. a. Loop the D-loop end of the two 16’ criss cross straps (16) through the loop end to form a cinch knot around the ladder rail tube. Secure beneath a step rung, at the stabilizer bar height location.
  • Page 18 Instruction Manual : 15’ LADDER STAND STEP 4 7. Standing on ladder step, lean toward tree with previously installed 6’ ratchet strap (14) now in hand. a. Wrap the previously installed end of the long strap around the tree and feed through the slot in the ratchet mechanism.

  • Page 19: Inspections And Maintenance/Notes Page

    Instruction Manual : 15’ LADDER STAND INSPECTION AND MAINTENANCE NOTES BEFORE EACH USE PERFORM THE FOLLOWING: • Inspect all webbing, rope, cord, and strap assemblies for wear or damage. • Inspect cables and/or cable ends for damage or kinking. • Inspect all hardware and chain components for damage or wear.
  • Page 20 *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product images may have been removed for photography purposes only. Props shown in photos not included. Some assembly may be required.
