Exibel NBG6503 Manual

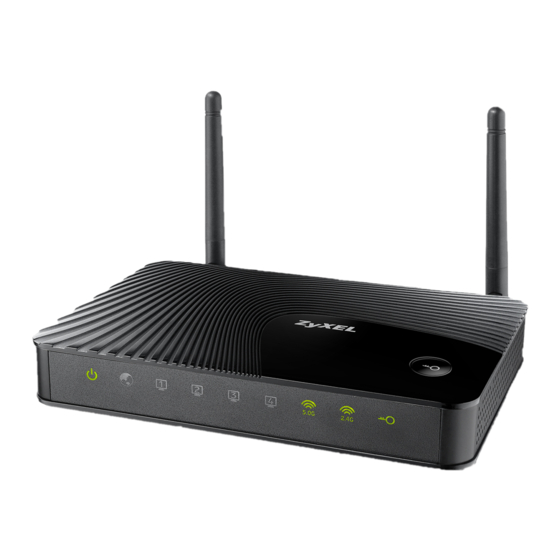

Wireless AC Router
Art.no. 38-6815 Model NBG6503
Max
GREAT BRITAIN - CUSTOMER SERVICE contact number: 020 8247 9300 e-mail: customerservice@clasohlson.co.uk
SVERIGE - KUNDTJÄNST tel: 0247/445 00 fax: 0247/445 09
NORGE - KUNDESENTER tel: 23 21 40 00 fax: 23 21 40 80 e-post: kundesenter@clasohlson.no internett: www.clasohlson.no
SUOMI - ASIAKASPALVELU puh: 020 111 2222 sähköposti: asiakaspalvelu@clasohlson.fi
DEUTSCHLAND - KUNDENSERVICE Unsere Homepage www.clasohlson.de besuchen und auf Kundenservice klicken.

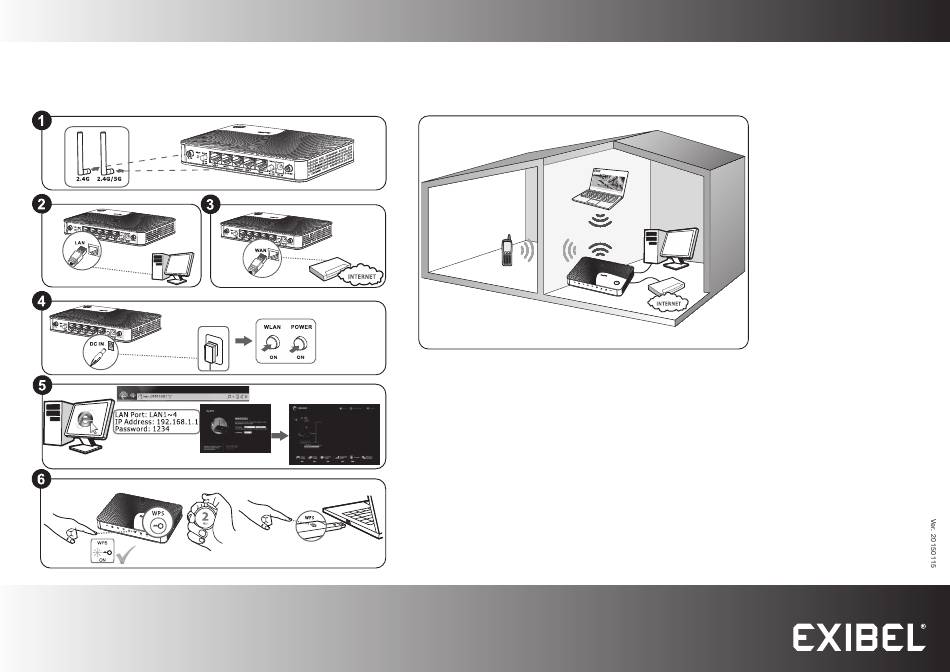

1. Attach the antennas exactly as shown (2.4G antenna to the 2.4G connector, 2.4G/5G antenna to the 2.4G/5G connector).
2. Connect a computer to a LAN port of the AC router.
3. Connect a broadband modem or router to the WAN port of the AC router.
4. Use the included power adaptor to connect the power socket to a power outlet. Make sure the WLAN and POWER buttons are
pushed in.
5. From the connected computer, open a web browser, type http://192.168.1.1 and enter 1234 as the password and finally click
Login. Follow the wizard prompts to set up your Internet connection. If you change the default wireless settings on the AC router,
write down the SSID and Wi-Fi key in case you need them in the next step.
6. Connect wirelessly to the AC router. If your wireless client supports WPS, press the WPS button for 2 seconds on it (the time
value may vary depending on your wireless client). Within 2 minutes, hold down the WPS button for 2 seconds on the AC router.
The AC router WPS LED starts to blink and then turns steady green. If your wireless client doesn't support WPS, manually enter
the SSID and Wi-Fi key on your wireless client.
Refer to the User Guide on the included CD for details about configuring all the features.
e-post: kundservice@clasohlson.se internet: www.clasohlson.se
kotisivu: www.clasohlson.fi
7
2.4G
5G
