S S
LIDING WITCH

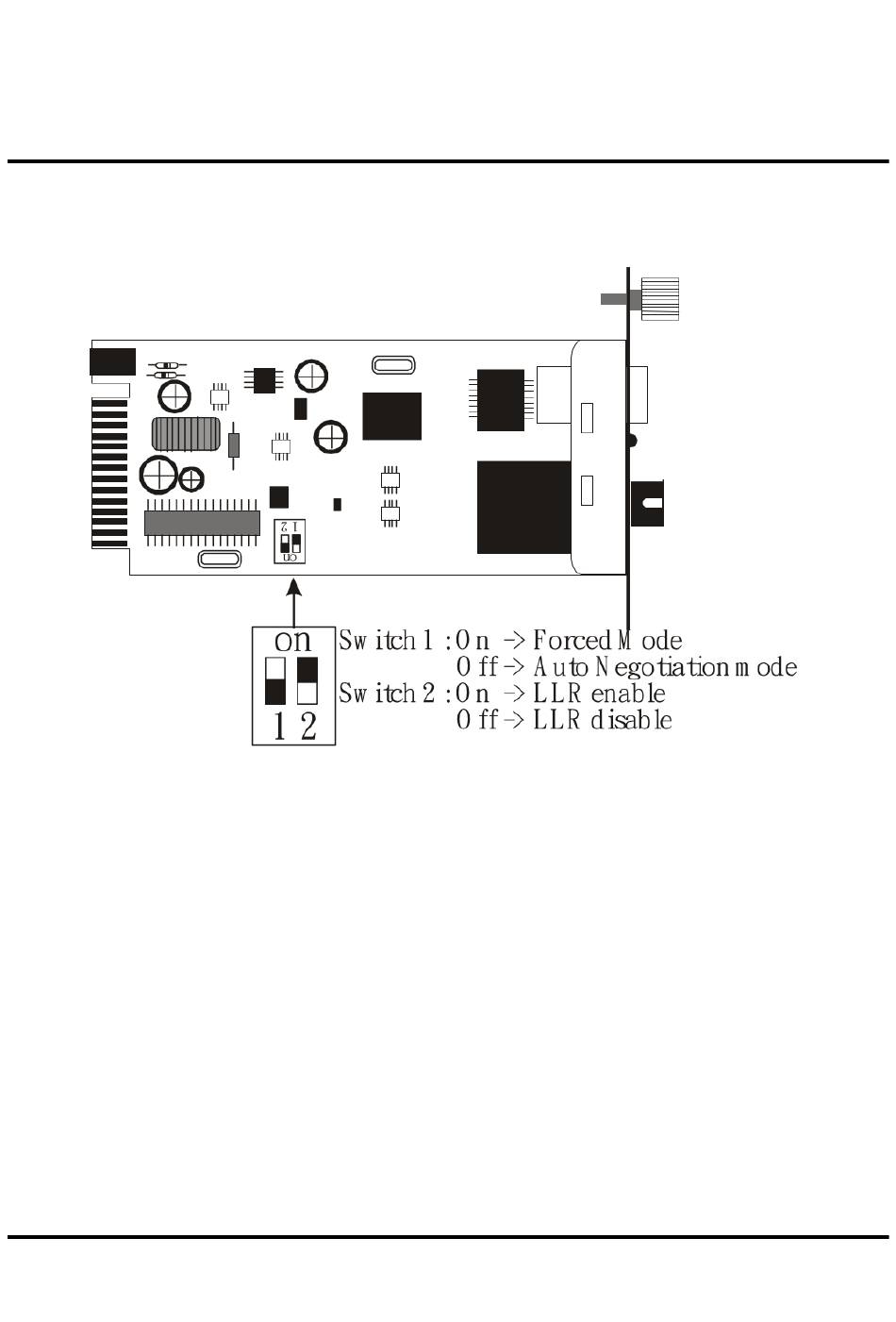

There is a two pin DIP switch on the module which define as switch 1
and switch 2:
Switch 1: Fiber mode switch
When the switch was turned to "On", it means that the fiber was
turned to
forced mode, and "Off" for auto-negotiation mode.
Note: Be sure the opposite end is using the same setting (forced or
Auto-negotiation). And when using two converters at the same time,
the two converters MUST set to forced mode.
Switch 2: LLR
When the switch was turned to "On", it means that the LLR was
enabled and
"Off" for disabled.
Note: When using two converters, don't enable the both devices' LLR
function at the same time.
