The H.E. Anderson Company is dedicated to assisting our customers with installation
and use of our products. Our technical staff are available each weekday from 8:30am to
4:30pm central time. You may call us toll free at 1-800-331-9620 from anywhere in the
U.S.A. and Canada. If no one is available, we will promptly return your call.
Before you call, we suggest that you review this manual. You may find the answer to
your question here. But even if you do not, reviewing the manual will help us to help
you.
There is some information you should have available when you call. You should know
the model and serial number of your control unit. Also, you should note the number of
pumpers of each type, and their model numbers (found on the front brass flange below the
stroke control shaft). We may not need all this information, but having it available at the start
can sometimes save a lot of time and trouble.
For additional owners manual for any H.E. Anderson Company product, please visit our
website at
http://heanderson.com/manuals.php.
Before returning items for repair or credit, please fill out, print and enclose the Return
Information Form, on our website at http://heanderson.com/return.php, with your return.
Please ship items to:
H.E. Anderson Company
2100 Anderson Drive
Installation Guidelines
and Operation of
Ratio:Feeder® Series J Plus Injectors
GETTING TECHNICAL ASSISTANCE
UNPACKING
Please
open
and
package upon receipt. Your package
was packed with great care and all
the necessary packing materials to
arrive to you undamaged. If you do
find an item that is broken or
damaged, you must contact the
delivering carrier to report the claim.
inspect
your
1
Advertisement
Table of Contents
Related Manuals for H.E. Anderson Ratio:Feeder J Plus Series
Summary of Contents for H.E. Anderson Ratio:Feeder J Plus Series
- Page 1 We may not need all this information, but having it available at the start can sometimes save a lot of time and trouble. For additional owners manual for any H.E. Anderson Company product, please visit our website at http://heanderson.com/manuals.php.
-

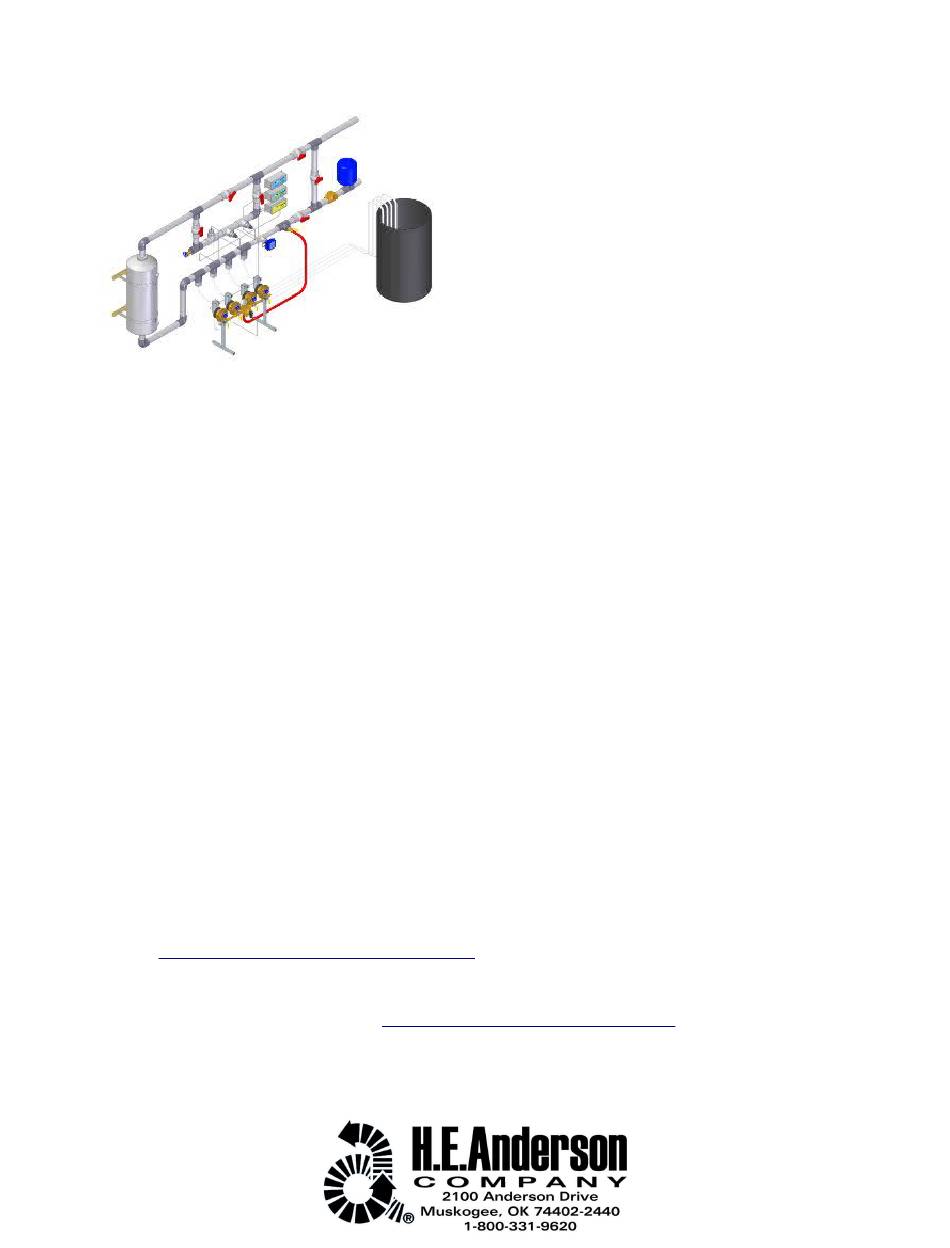

Page 2: Installation Example
Muskogee, OK 74403 Installation Example JP161-4 J Plus Injector with E-1S EC Monitor and P-2S pH Monitor J Controller EC Monitor pH Monitor Bypass Valve Captive Air Tank Bypass for pH and EC sensors. Backflow Preventer Boiler Drain Bypass Isolation Valves Blend Tank Unions... -
Page 3: Warnings And Cautions
Warnings and Cautions WARNING! Always appropriate Set up your controller before protective equipment (goggles, starting up your system. Refer protective clothing, respirator to the J Plus Controller etc.) when working with manual. Controllers are often chemicals and observe all relevant shipped with proper settings already guidelines and laws. -
Page 4: Installation Considerations
Installation Order of Components: Install the components in the following order. They are ordered starting with the upstream direction. Only J System Components are included in this section. 1. Manifold water supply 'Tee' or saddle 2. Water Meter 3. Injection Point Fittings 4. -
Page 5: Water Hammer
• A drain should be available close to the manifold. The unit discharges approximately twice as much water as chemical pumped. The drain line should be kept short, or expanded to a larger size for runs longer than fifteen feet. •... -
Page 6: Electrical Connections
16. Install water meter. Make sure to read specific manual for your water meter. Different meters have different installation requirements. All manuals can be found on the H.E. Anderson website. 17. NOTE: Strain on the water meter can interfere with operation and lead to water meter failure. Adjust the piping to make sure no additional forces are acting on the water meter. -
Page 7: Initial Check-Out
Initial Check-Out 1. With the water off, apply power to the electronic controller. After a few seconds the display should indicate OFF. 2. Turn the water on slowly and let all lines and blend tank fill with water. Intermittent discharges of water from the waste line should be observed. -
Page 8: Requirements For Proper Operation
number listed in the front of this manual. Checking the Meter Sensor You have probably already observed the red LED indicators mounted on the sensor circuit board which is housed in the clear housing atop the water meter. Checking these can quickly pinpoint some problems. •... - Page 9 This warranty gives you specific legal rights and you may also have other legal rights which may vary from state to state. H.E. Anderson Company does not authorize any person to create for it any other obligation or liability in connection with these products. ANY IMPLIED WARRANTY APPLICABLE TO THESE PRODUCTS IS LIMITED TO THE DURATION OF THIS WARRANTY.
Need help?
Do you have a question about the Ratio:Feeder J Plus Series and is the answer not in the manual?
Questions and answers
