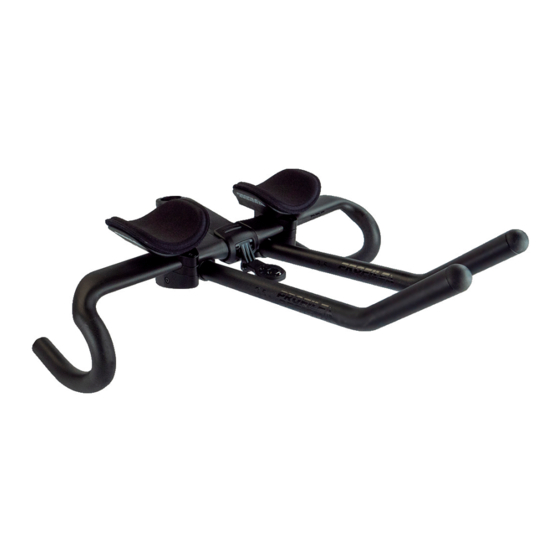

- Page 1 ICS AERO Clip-On Extensions Quick guide...
-
Page 2: Part List
CLIP-ON EXTENSIONS PART LIST Item Number: 30000749 NUMBER PART LEFT Upper Clamp Marked As “L” On The Inner Face LEFT Lower Clamp Marked As “L” On The Inner Face LEFT Extension Body Extension Clamps M5 X 25 (incl 5x8.5mm Washer) M4x12 (incl. -
Page 3: Mounting Options
MOUNTING OPTIONS It is possible to mount the ICS Aero extensions in two different positions, reversing the position of the components: 1. LOW POSITION The extensions are positioned below the handlebar ICS AERO CLIP-ON EXTENSIONS Quick Guide... - Page 4 MOUNTING OPTIONS 1. HIGH POSITION The extensions are positioned above the handlebar ICS AERO CLIP-ON EXTENSIONS Quick Guide...
-
Page 5: Exploded Views
EXPLODED VIEWS EXPLODED VIEWS HIGH POSITION LOW POSITION HIGH POSITION LOW POSITION IMPORTANT NOTE IMPORTANT NOTE Install the assembly guide to ensure the correct position of the tri extensions on the handlebar. Install the assembly guide to ensure the correct position of the tri extensions on the handlebar. The guide should be removed once the clip-on extensions are installed. - Page 6 INSTALLATION ON ICS AERO COCKPIT: Use the notches on the assembly guide to ensure the correct positioning of the handlebar clamps. The center-to-center distance between the extensions is set at 100mm. 100 mm Please note that there is a gap in the clamp when correctly tightened (5 Nm). ICS AERO CLIP-ON EXTENSIONS Quick Guide...
- Page 7 INSTALLATION ON ICS AERO COCKPIT: Refer to the torque values displayed below when tightening the assembly: 5 Nm 3 Nm ICS AERO CLIP-ON EXTENSIONS Quick Guide...
- Page 8 INSTALLATION ON ICS AERO COCKPIT: Apply grip paste on the extension clamp cylinders The arm rest position can be adjusted using different mounting holes ICS AERO CLIP-ON EXTENSIONS Quick Guide...
- Page 9 ICS AERO CLIP-ON EXTENSIONS Quick Guide...
