Lutron Electronics Nova T NT-2WS-AU Installation Instructions

Installation Instructions
Please Leave for Occupant

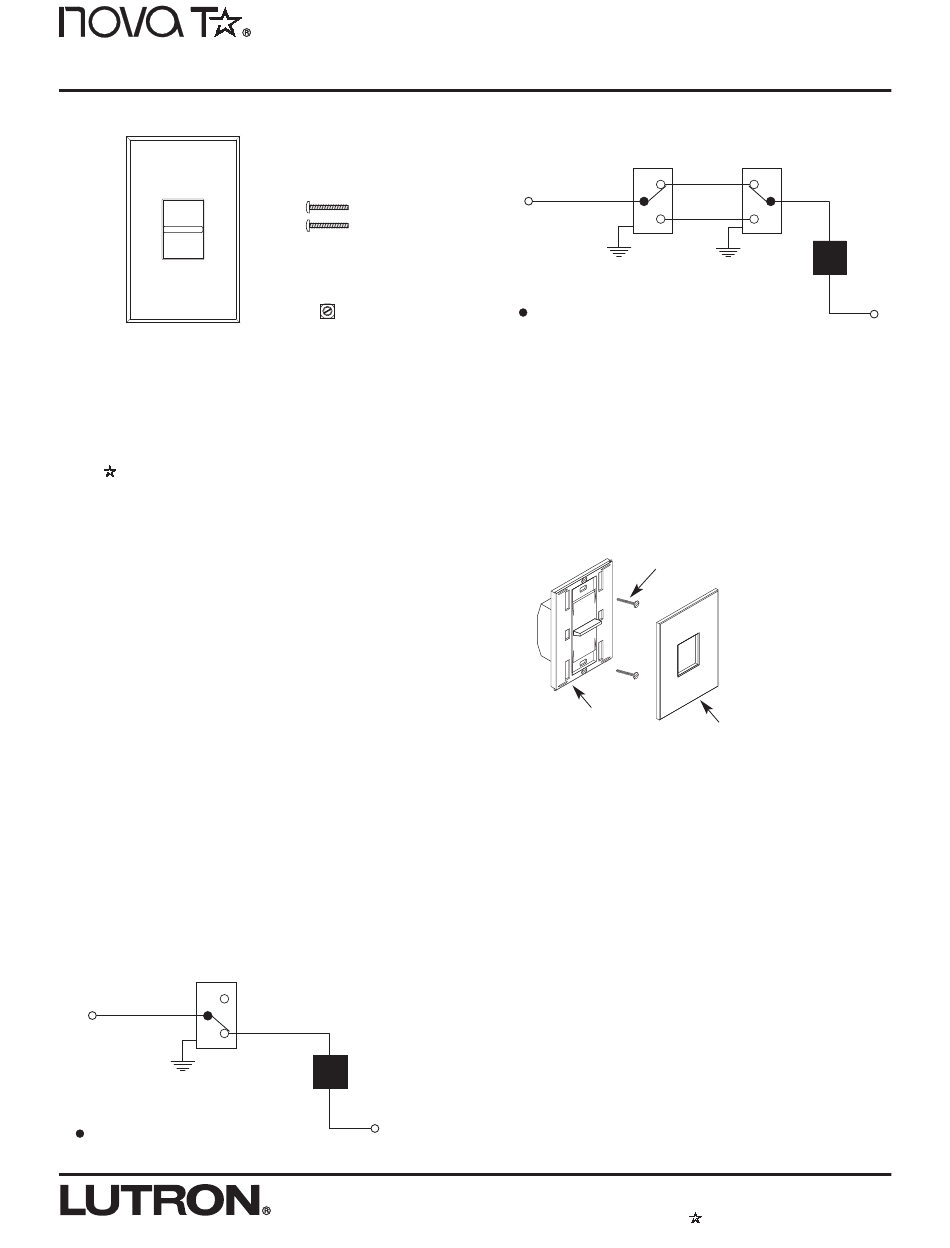

Package Contents
LUTRON
Switch
Important Notes - Please Read Before
Installation
Install in accordance with all national and local electrical codes.
Multigang Installations: In multigang installations several
Nova T controls are grouped horizontally in one ganging wall-
box or in a series of connected wallboxes. Multigang wallplates are
available from Lutron to simplify and beautify these installations. If
you are planning a multigang installation, read ganging information
before beginning installation.
Cleaning Instructions
To clean, wipe with a clean damp cloth. DO NOT use any chemi-
cal cleaning solutions.
Installation
1.
Turn power OFF at circuit breaker or fusebox. Wiring with
power on may cause injury or damage switch. Warranty void
if switch is miswired.
2.
Remove wallplate from switch to prevent damage and to
access mounting holes. Pull from top of wallplate to remove.
Set aside.
3.
Connect wallbox leads to switch. See Figure A or B for wiring
diagram. If an earth ground wire is not in the wallbox, contact
a licensed electrician.
Figure A. Wiring Diagram - Single-Pole
NT-2WS-AU
Live
220–240 V~
50/60 Hz
Earth
= Indicates different
colored screw
Mounting Screws
Earthing Lug
No connection
Load
Neutral
2-Way Switch
NT-2WS-AU
16 A Max. 220–240 V~ 50/60 Hz
Figure B. Wiring Diagram - 2-Way
NT-2WS-AU
Live
220–240 V~
50/60 Hz
Earth
= Indicates different
colored screw
4.
Push wires into wallbox, allowing room for switch to be insert-
ed. Do not pinch wires between wallbox and switch.
5.
Mount switch to wallbox using screws provided. Switch must
be mounted vertically. See Figure C.
Figure C. Mounting Diagram
Switch
Mounting
Screws
Switch
6.
Replace wallplate by snapping it back on to the dimmer.
7.
Turn on power.
This product may be covered by one or more of the following U.S. patents: 4,835,353;
4,924,349. The design of this product may be covered by one or more of the follow-
ing U.S. trademark registrations: 1,617,349; 1,626,714; 1,624,489; 1,624,490; and
1,638,913. Lutron, Nova, and the Nova T
Lutron Electronics Co., Inc. © 2004 Lutron Electronics Co., Inc.
NT-2WS-AU
Load
Earth
Neutral
Wallplate
logo are registered U.S. trademarks of
