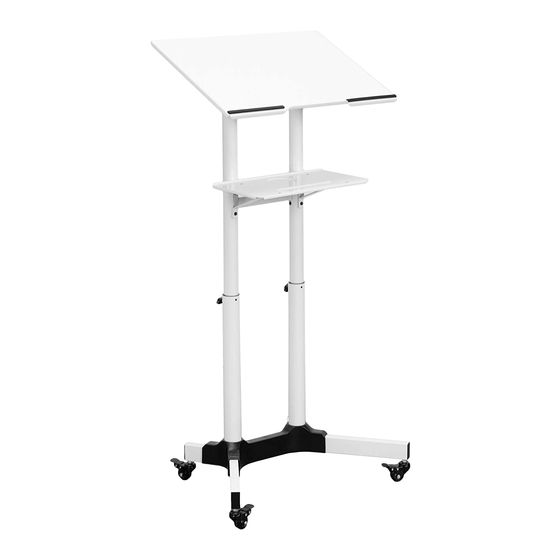

White 24" Multi-Purpose Mobile Podium
Instruction Manual
SKU: CART-V03W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/cart-v03w
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo CART-V03W
Summary of Contents for Vivo CART-V03W
- Page 1 White 24” Multi-Purpose Mobile Podium Instruction Manual SKU: CART-V03W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-v03w GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
DO NOT EXCEED WEIGHT CAPACITY. 44 lbs 22 lbs Failure to do so may result in serious injury. (20 kg) (10kg) TOP SHELF BOTTOM SHELF ASSEMBLY STEPS STEP 1 Attach wheels and washers (3) to the long and short square tubes (1, 2) using the provided wrench (24). - Page 4 STEP 4 Mount the connecting tube (9) to the pole set with four M6x10 bolts (20) using the tool kit. STEP 5 Attach the assembled pole set to the tube conneector cover (5) then to the tube connector (4) using M6x10 bolts (20) in the back and M5x6 grub screws (22) in the sides.
- Page 5 STEP 7 Attach the shelf supports (11) to the pole set using four M6x10 Allen head bolts (20). STEP 8 Attach the shelf (12) to the supports using M4x6 countersink bolts (21). STEP 9 Mount the right and left connecting plates (14, 15) to the top plate (13) using M6 nuts (16) and tighten with the wrench.
- Page 6 STEP 10 Place the assembled top plate onto the pole set, and secure with two M6x10 bolts (20). STEP 11 Insert levers (17) with M6 washers (23) through the slots in the connecting plates and screw into pole set. STEP 12 Attach soft pads (18) to the top front edge of the top plate.
- Page 7 STEP 13 Loosen the levers to adjust the tilt angle, then tighten in the desired position. Adjust the height by loosening the plastic knobs, then tighten at the desired height. tilt 40˚ STEP 14...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S AVG. RESOLUTION TIME 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
