- Page 1 Installation, Operation, and Maintenance Manual GTPH Series Multistage Horizontal External Mount Pumps 60 Hz MODELS GTPH 2T GTPH 4T GTPH 8T GTPH 12T GTPH 25T GTPH 50T RAE Pumps 1212 Streng Street Cincinnati, OH 45223 513.779.3034 www.RAEPumps.com...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ..........................03 SPECIFICATIONS–SECTION A ....................03 MODEL CODE EXPLANATION ..................03 OPERATING PARAMETERS ..................... 04 MOTOR DATA ........................04 INSTALLATION–SECTION B ......................04 INSTALLATION SITE ......................04 PIPING ..........................04 ELECTRICAL CONNECTION–SECTION C .................. 05 SPECIFICATIONS ......................05 CONNECTION ........................ -
Page 3: Introduction

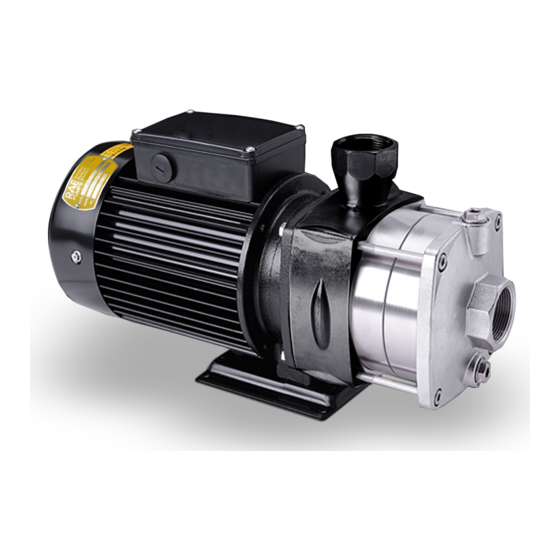

INTRODUCTION This Installation, Operation, and Maintenance Manual is designed to help you get the best performance and longest life from your RAE pump. This pump is a GTPH Series multistage horizontal centrifugal pump. This pump should be mounted externally during operation and primed before use. GTPH Series pumps are intended for industrial use to carry fluids such as water, coolant, light oil and other clean, non-aggressive liquids. -
Page 4: Operating Parameters
OPERATING PARAMETERS GTPH 25T GTPH 50T Ambient temperature: Max 104°F Flow (gpm): 65 to 200 130 to 380 Liquid temperature range: 32°F to 194°F Head (feet): 20 to 220 40 to 190 Operating pressure: Max 142 psi Inlet pressure: Max 85 psi MOTOR DATA Nominal speed: 3500 rpm at 60 Hz GTPH 2T... -
Page 5: Electrical Connection-Section C
ELECTRICAL CONNECTION– SECTION C To change the position of the connection box, ! WARNING ! remove the bolts on the motor frame (4 bolts Electrical installation should be carried which are bolted into the chamber) and turn the out in accordance with the local stator housing to the required position (Figure electrical code. -
Page 6: Priming
The pump should not be used to transfer START UP toxic or contaminated liquid. Warranty Start the pump and slowly open the will be void if the pump application is not discharge valve until it is fully open. in compliance with the installation and operation procedures. -
Page 7: Troubleshooting-Section E
TROUBLE SHOOTING–SECTION E ! WARNING ! Verify electrical supply has been switched off before trouble shooting. Fault Possible Causes Motor does not start 1. Check if electrical power source, fuse or circuit breaker failed 2. Check if pump is locked up by sand, rust, or foreign objects 3. -
Page 8: Dimensions-Section F
DIMENSIONS AND WEIGHT–SECTION F GTPH 2T Weight Model (inches) (inches) (inches) (inches) (pounds) GTPH2T2K 12.01 1.81 2.91 3.90 26.0 GTPH2T3K 12.72 3.19 3.62 4.61 26.2 GTPH2T4K 13.43 3.90 4.33 5.31 26.5 GTPH2T5K 15.71 4.61 5.04 6.05 29.8 GTPH2T6K 16.42 5.31 5.75 6.73 30.0... -
Page 9: Gtph 8T Dimensions, Weights And Outline Drawing
GTPH 8T Weight Model (inches) (inches) (inches) (inches) (pounds) GTPH8T2K 13.19 3.03 3.46 2.95 41.7 GTPH8T3K 16.02 4.29 4.72 4.21 43.0 GTPH8T4K 17.13 4.29 4.72 4.21 48.5 GTPH8T5K 18.46 5.63 6.06 5.55 57.5 GTPH 8T GTPH 12T Weight Model (inches) (inches) (inches) (inches) -
Page 10: Gtph 25T Dimensions, Weights And Outline Drawing
GTPH 25T Weight Model (inches) (inches) (inches) (inches) (pounds) GTPH25T2KF 21.16 6.24 7.81 4.72 112.3 GTPH25T3KF 23.52 8.60 10.18 7.09 125.1 GTPH25T4KF 23.52 8.60 10.18 7.09 125.6 GTPH25T5KF 27.85 10.96 12.54 9.45 151.5 GTPH25T6KF 27.85 10.96 12.54 9.45 152.0 GTPH 25T GTPH 50T Weight Model... -
Page 11: Warranty-Section G
WARRANTY–SECTION G RAE Pumps will replace, within one year of shipment from our plant, any pump that, in our judgment, has failed due to defects in materials or workmanship, provided the pump has been properly installed and maintained and has not been subject to abuse. Modifications, including removal of pump tags or misapplication, void this warranty.
