- Page 1 Installation, Operation, and Maintenance Manual GMVCP Series Multistage Vertical Immersion Pumps 60 Hz MODELS GMVCP 2 GMVCP 4 GMVCP 8 GMVCP 16 RAE Pumps 1212 Streng Street Cincinnati, OH 45223 513.779.3034 www.RAEPumps.com...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ..........................03 SPECIFICATIONS–SECTION A ....................03 MODEL CODE EXPLANATION ..................03 OPERATING PARAMETERS ..................... 04 MOTOR DATA ........................04 INSTALLATION–SECTION B ......................04 REQUIREMENTS ....................... 04 ELECTRICAL CONNECTION–SECTION C .................. 04 SPECIFICATIONS ......................04 CONNECTION ........................04 ROTATION DIRECTION ..................... -
Page 3: Introduction

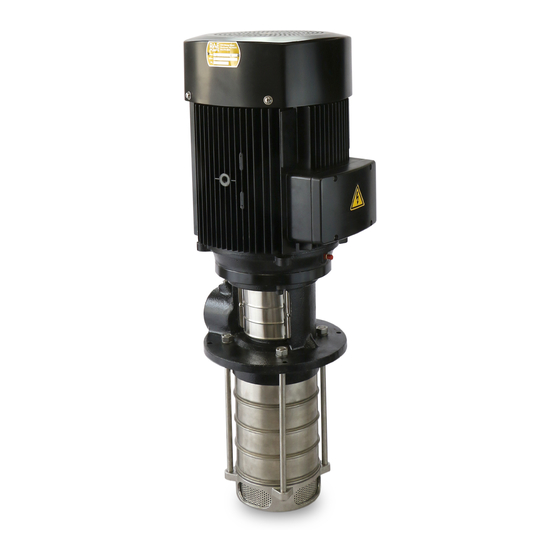

INTRODUCTION This Installation, Operation, and Maintenance Manual is designed to help you get the best performance and longest life from your RAE pump. This pump is a GMVCP Series vertical multistage centrifugal pump. This pump should be immersed during operation. GMVCP Series pumps are intended for industrial use to carry fluids such as water, coolant, light oil and other clean, non-aggressive liquids. -
Page 4: Installation-Section B
OPERATING PARAMETERS Ambient temperature: Max 104°F Liquid temperature range: 5°F to 221°F GMVCP 8 GMVCP 16 GMVCP 2 GMVCP 4 Flow (gpm): 31 to 62 44 to 114 Flow (gpm): 4 to 20 11 to 35 Head (feet): 85 to 722 131 to 650 Head (feet): 60 to 775... -
Page 5: Positioning Connection Box
POSITIONING CONNECTION BOX WIRING DIAGRAM The position of the motor connecting box is adjustable. Referring to Figure 3, the position can be changed by removing the motor fan cover, unscrewing the frame bolts, and turning the motor casing and connecting box subassembly together to proper position. -
Page 6: Motor Lubrication
SUCTION FILTER ! WARNING ! For maximum performance, the suction filter Avoid frequent pump shut down and should be always kept clean and free from start up. obstructions. Pumps with a motor power equal to or less than 5HP should not be restarted PERIODIC INSPECTION more than 100 times per hour. - Page 7 DIMENSIONS AND WEIGHT–SECTION F GMVCP 2 Weight Model (inches) (inches) (inches) (inches) (inches) (pounds) GMVCP2-20-2 17.83 4.84 12.99 5.83 4.60 GMVCP2-30-3 19.65 5.55 14.09 6.69 5.59 GMVCP2-40-4 20.35 6.26 14.09 6.69 5.59 GMVCP2-50-5 21.06 6.97 14.09 6.69 5.59 GMVCP2-60-6 21.77 7.68 14.09 6.69...
- Page 8 GMVCP 8 Weight Model (inches) (inches) (inches) (inches) (inches) (pounds) GMVCP8-20-2 22.40 5.91 16.50 7.48 6.10 GMVCP8-30-3 23.58 7.09 16.50 7.48 6.10 GMVCP8-40-4 27.32 8.27 19.06 7.76 6.50 GMVCP8-50-5 28.50 9.45 19.06 7.76 6.50 GMVCP8-60-6 30.01 10.63 19.45 9.06 7.28 GMVCP8-80-8 34.60 12.99...
-
Page 9: Warranty-Section G
WARRANTY–SECTION G RAE Pumps will replace, within one year of shipment from our plant, any pump that, in our judgment, has failed due to defects in materials or workmanship, provided the pump has been properly installed and maintained and has not been subject to abuse. Modifications, including removal of pump tags or misapplication, void this warranty.
