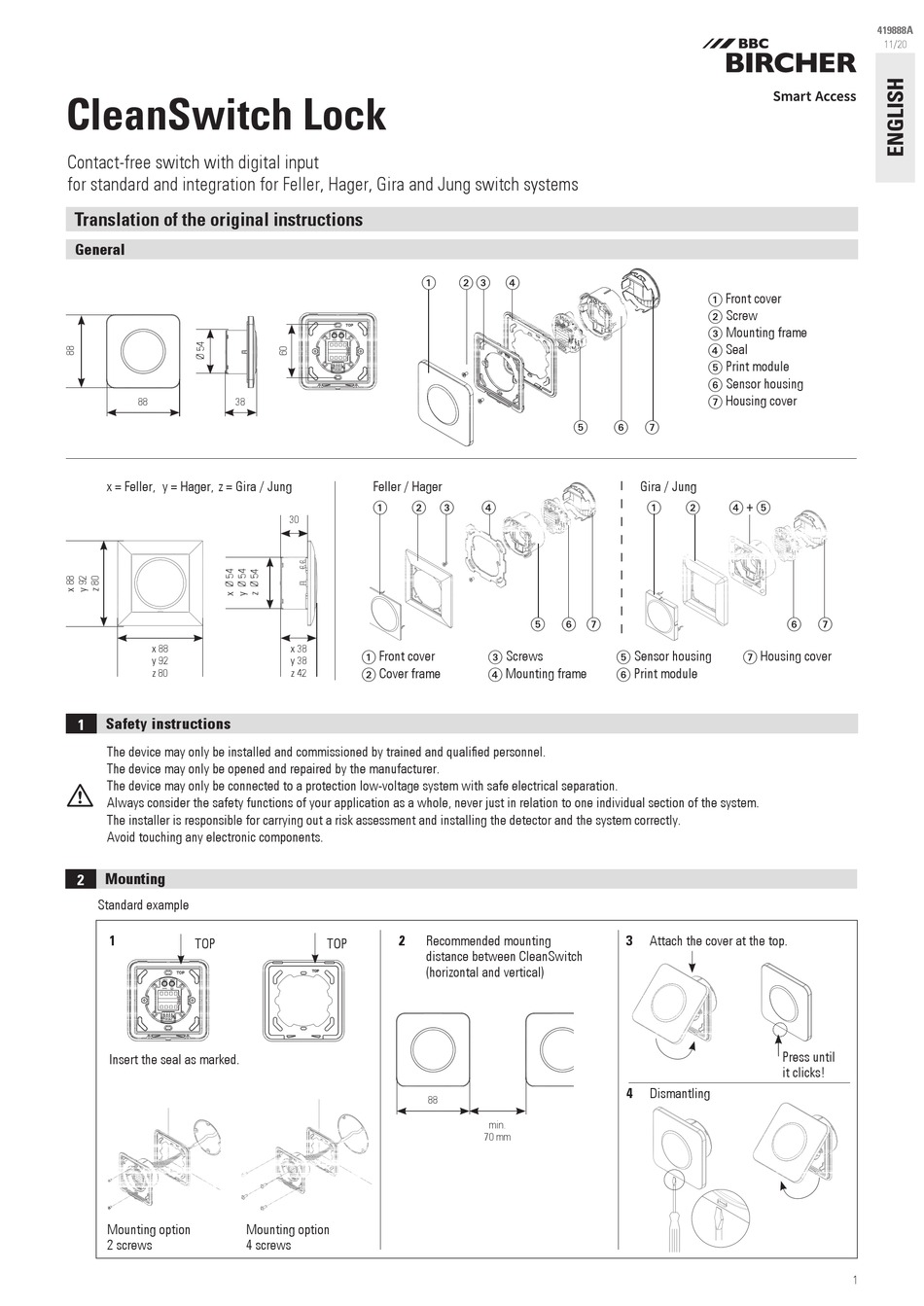

BBC Bircher CleanSwitch Lock Translation Of The Original Instructions

CleanSwitch Lock
Contact-free switch with digital input
for standard and integration for Feller, Hager, Gira and Jung switch systems
Translation of the original instructions

General

88 38
x = Feller, y = Hager, z = Gira / Jung
x 88
y 92
z 80

Safety instructions

1
The device may only be installed and commissioned by trained and qualified personnel.
The device may only be opened and repaired by the manufacturer.
The device may only be connected to a protection low-voltage system with safe electrical separation.
Always consider the safety functions of your application as a whole, never just in relation to one individual section of the system.
The installer is responsible for carrying out a risk assessment and installing the detector and the system correctly.
Avoid touching any electronic components.

Mounting

2
Standard example
1
TOP
Insert the seal as marked.
Mounting option
2 screws
Feller / Hager
  
30
x 38
 Front cover
y 38
 Cover frame
z 42
2
TOP
Mounting option
4 screws
   


  
 Screws
 Mounting frame
Recommended mounting
distance between CleanSwitch
(horizontal and vertical)
88
min.
70 mm
 Front cover
 Screw
 Mounting frame
 Seal
 Print module
 Sensor housing
 Housing cover
 
Gira / Jung
   + 
 
 Sensor housing  Housing cover
 Print module
3 Attach the cover at the top.
Press until
it clicks!
4 Dismantling
419888A
11/20
