Dimensions
72mm
deep
Flange
15mm deep
100mm
Technical Data
MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3.0m
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.4m
6.0m
OFF DELAY: 20 minutes (fixed)
OPERATING VOLTAGE: 230V 50Hz (UK & Europe)
PRODUCT RATING & RECOMMENDED CIRCUIT PROTECTION: 10 Amps
MAXIMUM RECOMMENDED LOAD: 6 Amps resistive or fluorescent
2
TERMINAL CAPACITY: 2 x 2.5mm
COLOUR: White
MATERIAL: Flame retardant ABS
WEIGHT: 200g approx
IP RATING: 530
MK Electric
The Arnold Centre, Paycocke Road, Basildon,
Essex, SS14 3EA. UK
Technical Help
Tel: +44 (0)1268 563720
Fax: +44 (0)1268 563064
email: mktechnical@honeywell.com
Customer Service
Tel: +44 (0)1268 563000
Fax: 01268 563404
Fax: +44 (0)1268 563365 (International)
email: mkorderenquiries@honeywell.com
web site: www.mkelectric.co.uk
______________________________________________________
Novar ED&S Ltd (A Honeywell Company),
Arlington Business Park, Bracknell, Berkshire, RG12 1EB
All marks in this document identified with a R or TM symbol
adjacent to the mark are Trade Marks of Novar ED&S Ltd.
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
50843PL Ed. 1
SENSORS

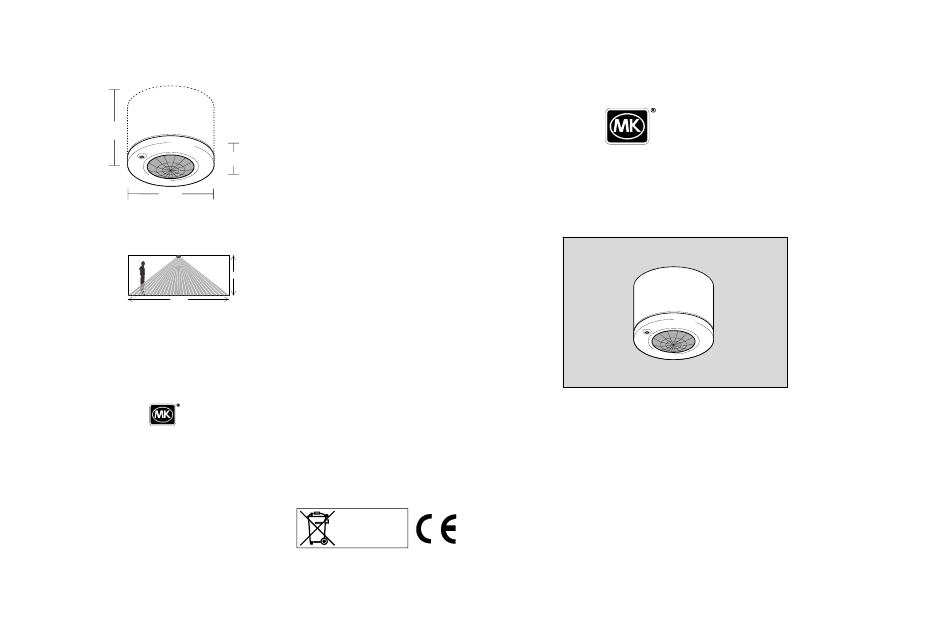

Standard PIR with Photocell
Surface
Installation and Commissioning
Instructions
K4050 or K4053 required for Commissioning
K4011
Advertisement
Table of Contents
Related Manuals for MK Sensors K4050
Summary of Contents for MK Sensors K4050
- Page 1 MATERIAL: Flame retardant ABS WEIGHT: 200g approx IP RATING: 530 Installation and Commissioning Instructions MK Electric K4050 or K4053 required for Commissioning The Arnold Centre, Paycocke Road, Basildon, Essex, SS14 3EA. UK Technical Help Tel: +44 (0)1268 563720 Fax: +44 (0)1268 563064 email: mktechnical@honeywell.com...
- Page 2 NEUTRAL supply With an K4050, point the programmer at the detector and briefly press the ‘Store’ button to set the current light EARTH level as the photocell switching point. This ensures that whenever the controlled area is brighter than this level, the lights will switch on when entering the area.
