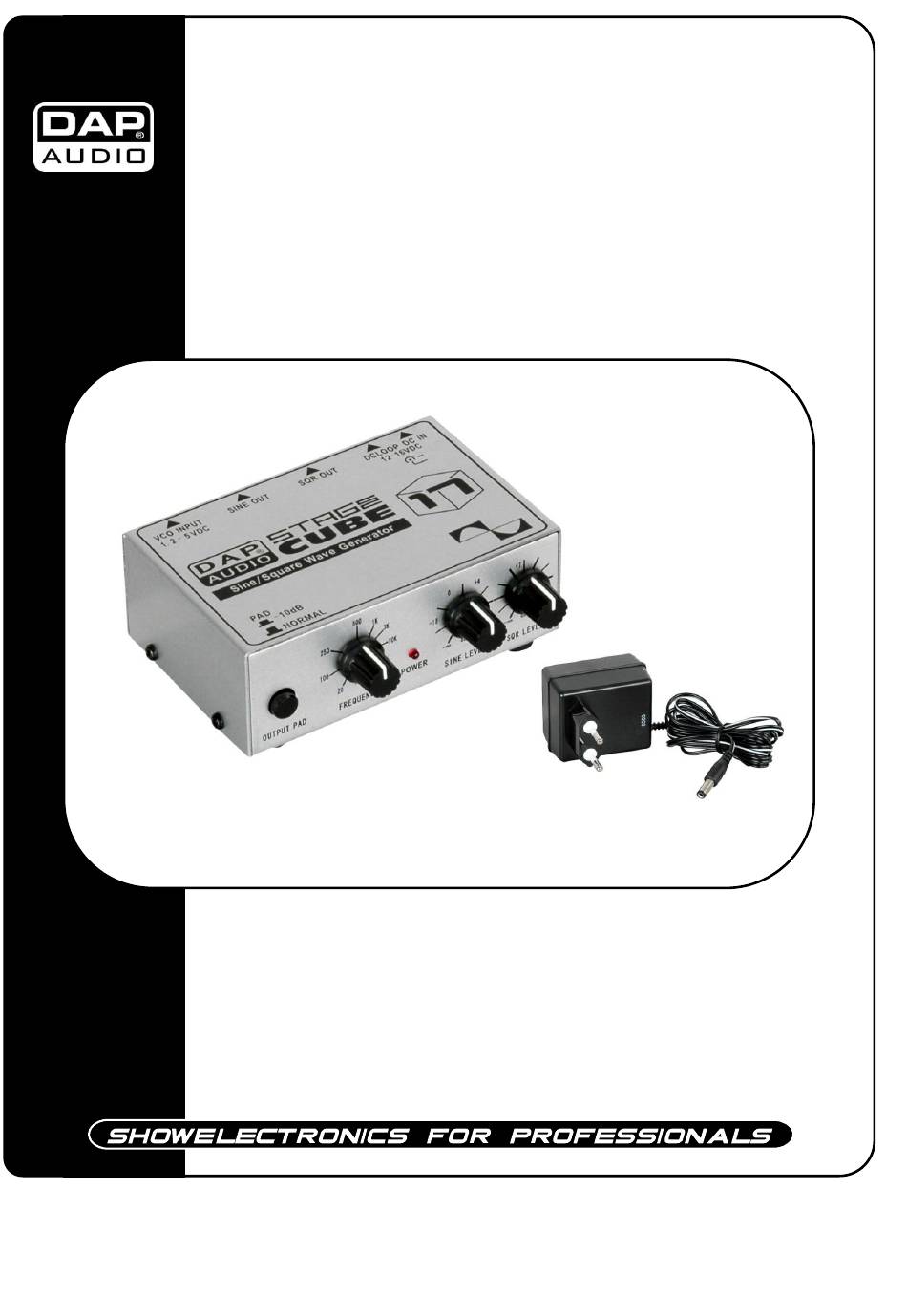

- Page 1 SC-17 ORDERCODE D1517...

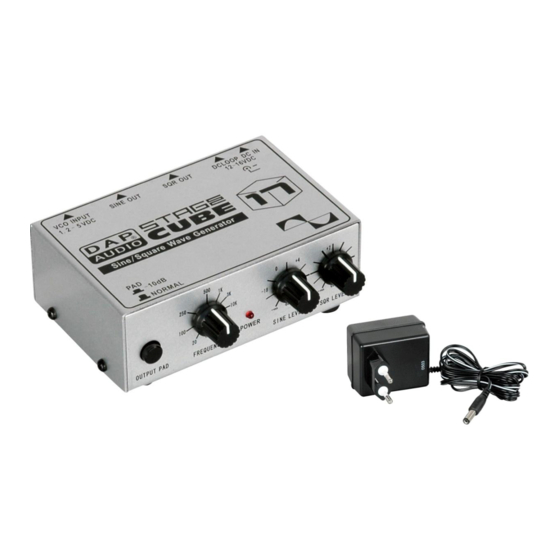

- Page 2 SC-17 Sine / Square Wave Generator The SC-17 is designed as a Sine / Square Wave Generator. 1) DC IN 6) DC Connector 2) DC Loop 12-16VDC 7) Output Pad 3) SQR Out 8) Frequency 4) Sine Out 9) Sine Level...
- Page 3 When the Output button (7) is pressed down you can use the Sine/SQR Level (9/10) to vary from - to -2 dB. When the Output button (7) is not pressed down you can use the Sine/SQR Level (9/10) to vary from - to +8 By turning the Frequency control (8), you can vary from 20Hz - 20 KHz f = Frequency You can change the frequency of a...
- Page 4 You can change the Amplitude ( )of the Sine/Square Wave by turning the Frequency control (8) The VCO Input (5) allows you to control the frequency remotely by means of a DC voltage. Input voltage of 1,2V = 20 Hz Input voltage of 5V = 20 KHZ Note: DO NOT apply an Input voltage >...
- Page 5 2009 Dap Audio.
