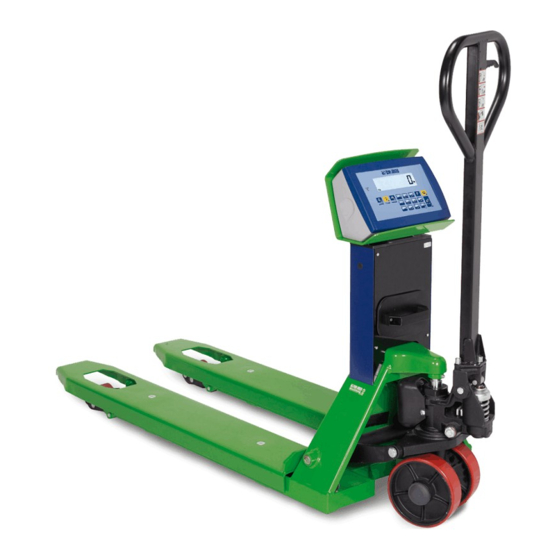

Pallet truck with integrated scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

TPW
Pallet truck with integrated scale
ENGLISH
USER MANUAL
www.diniargeo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPW and is the answer not in the manual?

Questions and answers

Related Manuals for Dini Argeo TPW

Summary of Contents for Dini Argeo TPW

  • Page 1 Pallet truck with integrated scale ENGLISH USER MANUAL www.diniargeo.com...
  • Page 3 Index INDEX Introduction Safety information - Warnings Technical features Power supply Power supply via battery Power supply via rechargeable battery Battery charge level Tiller/column assembly Truck controls Transport Lifting Lowering Printer Integrated thermal printer Customisable printouts Accessories Swivel column (standard with some models) Usb (depending on model) Antenna (depending on model) Brake...
  • Page 4 Index Basic scale functions The display Zero Regulation of the display brightness Automatic tare Tare deletion Presettable tare (PT) Print (and reprint of the last ticket) Metrics Additional functions for models with number keypad 30-tare memory Automatic tare deletion Number IDs Date and time Advanced scale functions How to acces the function menu...

  • Page 5: Safety Information - Warnings

    Introduction Dear Customer, Thank you for choosing a Dini Argeo product. The manual weighing pallet truck that you have purchased is ideal for handling and weighing pallets or standardised containers directly where they are located, saving you time and money.
  • Page 6 Technical features Based on the model: • Painted steel or stainless steel loading forks. • Standard length 1150 mm or 1280 mm, special sizes on request. • Width 550 mm or 680 mm, special widths on request. • Maximum lifting height of the forks: 180 mm or 200 mm from the ground. •...

  • Page 7: Battery Charge Level

    Power supply Power supply via battery If your pallet truck features AA BATTERY power supply, use 4 AA batteries, either “disposable” or rechargeable. CHANGING THE BATTERIES: Pull out the front tray and put the batteries in. ATTENTION: set the batteries up according to the polarity marked inside the tray.
  • Page 8 Tiller/column assembly USER_MANUAL_ENG_TPW_4_R1...
  • Page 9 Truck controls The raised load is moved forwards or backwards by the tiller, which controls the steering wheels. Transport POS. 1 > central The tiller is completely free for transport manoeuvres. Lifting POS. 2 > low Pull the tiller downwards to start up the lifting pump. A return spring places the tiller back in its upright position. Lowering POS.

  • Page 10: Integrated Thermal Printer

    Printer Integrated thermal printer The printer is usually in STAND-BY and is only powered by the weight indicator when it is time to print in order to ensure the battery holds it charge longer. When printing is finished, the printer automatically goes back to STAND-BY. How to replace the roll Open the door by pressing Put the roll in with...
  • Page 11 Accessories Swivel column (standard with some models) To ensure maximum display reading comfort. 160° 160° Usb (depending on model) USB port to store all completed weighing operations on memory stick. The tiller has an upright return system: be careful during manoeuvring operations.
  • Page 12 Instructions for use The tiller has an upright return system: be careful during manoeuvring operations. USER_MANUAL_ENG_TPW_4_R1...
  • Page 13 Instructions for use RAISE THE FORKS ONLY WHEN THE PALLET TRUCK IS STATIONARY* *The pallet truck is equipped with a dual-function tiller: traction or manoeuvre and hydraulic lift. NOTE: raise or lower the pallet truck ONLY when stationary. USER_MANUAL_ENG_TPW_4_R1...
  • Page 14 Correct weighing procedure Turn on the indicator Unload the pallet truck scale before turning on. Put the pallet truck in position With approved scale, you can perform weighing on EUR EPAL pallet 800x1200mm (ref. Standards UIC 435-2 and UIC 435-4). Lift the load and read the weight 1000.0 USER_MANUAL_ENG_TPW_4_R1...

  • Page 15: Maintenance Warnings

    Maintenance Maintenance warnings Before proceeding with the maintenance operation ensure that the truck is in safety mode. • • During maintenance operations do not release work residues into the environment. • Only perform the maintenance operations described herein, any unspecified procedures can pose a serious risk to untrained operators and in any case alter the machine’s degree of safety.
  • Page 16 Maintenance Regulation of the forks lowering a. Place the forks at the b. Place the tiller control c. Make sure the tiller is in maximum height. lever in POS. 1 (centre). the upright position. d. Unscrew the locknut, e. Slowly turn the As soon as the forks to unlock the adjustment screw...

  • Page 17: Oil Level

    Maintenance Oil level Check the oil level EVERY 6 MONTHS. OIL VISCOSITY 30 CST A 40°C Only use hydraulic oil, not motor or brake oil. TOTAL VOLUME 0,3 LT a. Lower the forks b. Remove the protective c. If necessary, add up all the way.
  • Page 18 Basic scale functions The display Number Symbol Description The scale is unloaded and at zero (gross). The weight is unstable. The time is being shown on the display. The weight displayed is net. There is a saved tare. (5,6) The weight displayed is gross. Battery level.
  • Page 19 Basic scale functions -off- 2 sec. Zero 0. 1 ZERO Regulation of the display brightness brGt 0 ZERO brGt 5 2 sec. Set the brightness How to set the value USER_MANUAL_ENG_TPW_4_R1...

  • Page 20: Automatic Tare

    Basic scale functions Automatic tare ? kg ? kg 15 .0 0 . 0 TARE 0. 0 120. 0 Tare deletion -15.0 0 . 0 TARE USER_MANUAL_ENG_TPW_4_R1...
  • Page 21 Basic scale functions Presettable tare (PT) 15,0 kg ? kg TARE 0. 0 -PT- 2 sec. 00015.0 -15 . 0 PRINT Setting the tare value How to set the value 120.0 120,0 kg 15,0 kg If the pallet truck has a number keypad, it is possible to enter the tare quickly: a.
  • Page 22 Basic scale functions Print (and reprint of the last ticket) 120 .0 print PRINT To reprint the last ticket (for models with number keypad) print PRINT Metrics INFo 4 sec. 2000 USER_MANUAL_ENG_TPW_4_R1...
  • Page 23 Additional functions for models with number keypad 30-tare memory This memorises the most commonly used tares (up to 30), to simplify retrieval with quick selection. Example 10,0 kg 12,0 kg 15,0 kg How to store a tare T.01 Select the memory. How to set the value t0015.0 PRINT...
  • Page 24 Additional functions for models with number keypad How to retrieve a stored tare 15,0 Fun 1 T.01 Select the memory. How to set the value 0 .0 PRINT Automatic tare deletion Fun 2 Ta-L Automatic deletion disabled Ta-u Automatic deletion enabled: the tare will be deleted automatically when the pallet truck is comple- tely unloaded.
  • Page 25 Additional functions for models with number keypad Number IDs The instrument is fitted with 2 memories for the temporary registration of numerical codes that can be used to identify the pro- duct, the operator, the lot etc… These codes, if entered, will be present in the ticket when printing. Come inserire l’ID Fun 3 iidn...

  • Page 26: Date And Time

    Additional functions for models with number keypad Date and time Fun 8 month year hour Minute Only if the option date and hour is present. USER_MANUAL_ENG_TPW_4_R1...
  • Page 27 Advanced scale functions How to acces the function menu MODE 0 .000 funCt 5 sec. The indicator is in the function menu: the currently active function appears. d. Select function Horizontal accumulation total Sum of the weight of several objects to obtain the total weight.
  • Page 28 Advanced scale functions Horizontal totalization How to sum the weighs 50.0 PRINT 180.0 PRINT 90.0 PRINT USER_MANUAL_ENG_TPW_4_R1...
  • Page 29 Advanced scale functions How to momentarily read the total 320 . 0 MODE Number of weighs Total weight With number keyboard, the combination of F keys + 7 displays the current total without printing it/resetting it. How to end accumulation and reset the total 320 .
  • Page 30 Advanced scale functions Mixing several components How to sum the weighs 30.0 TARE 250 .0 PRINT 100.0 PRINT USER_MANUAL_ENG_TPW_4_R1...
  • Page 31 Advanced scale functions How to momentarily read the total 320 . 0 MODE Number of weighs Total weight With number keyboard, the combination of F keys + 7 displays the current total without printing it/resetting it. How to end accumulation and reset the total 320 .

  • Page 32: Pieces Counting

    Advanced scale functions Pieces counting How to sample and count 15.0 TARE MODE 2 sec. Choose the loaded reference amount (5, 10, 20, ... 200 pieces) How to set the value *If the pallet truck scale is alrea- dy in counting mode (active Load the desired reference sampling), in order to sample quantity (e.g.
  • Page 33 Advanced scale functions How to switch from piece to weight display and vice versa MODE 3000 300.0 You can go from counting to wei- ghing at any time How to enter the average unit weight (PMU) 10.3427 PRINT Enter the average unit weight = 10,3427g e.g.
  • Page 34 Advanced scale functions Pieces counting Total load count b. Manually set the tare value (pal- 1000.0 985.0 let + container) TARE 2 sec. How to set the value f. Pick up the sampling pieces MODE (5, 10, 20, 30, 40, 50, 60, 75, 100, 200 pieces).
  • Page 35 Advanced scale functions Weight check How to start the check with known reference weight tarGet MODE 2 sec. t00000 L00000 PRINT Enter the lower tolerance How to set the value How to set the value h00000 PRINT PRINT Enter the higher tolerance How to set the value Example 1 To check a weight of 1000 g with +/- 5 g tolerance (that is, between 995 g and 1005 g), set:...
  • Page 36 Advanced scale functions Weight check How to start the check with automatic target acquisition 500 .0 L00000 MODE Enter the lower tolerance How to set the value 2 sec. h00000 PRINT PRINT Enter the higher tolerance How to set the value How to check the weight _under - ok -...
  • Page 37 Advanced scale functions Weight check How to update the nominal weight with known reference weight 0. 0 MODE tarGet t00000 How to update the nominal weight with automatic target acquisition 500.0 MODE How to edit the check thresholds MODE t.min l00000 2 sec.
  • Page 38 Advanced scale functions Exchange between net weight and gross weight 15.0 TARE 0 . 0 100. 0 MODE 100.0 115.0 You can go from net weight to gross weight at any time. USER_MANUAL_ENG_TPW_4_R1...
  • Page 39 Advanced scale functions Percentage weighing Percentage check I. How to acquire the 100% reference 50.0 S- 100.0 MODE How to set the value 2 sec. sample 100.0 5 sec. PRINT Sampling in progress, please wait... * With the numerical keyboard, the combination of the F + 7 keys allows to modify the sam- pling time.
  • Page 40 Advanced scale functions Percentage weighing Percentage metering Example of formula Product: RP28K 1. 2127A3 - 50% 2. 23AB4 - 30% 3. Water - 20% Dose 500 kg 10.0 0 . 0 ZERO 00500.0 MODE PRINT Enter the total quantity to achieve 2 sec.
  • Page 41 Advanced scale functions Percentage weighing 0 . 0 30.0 TARE 0 . 0 20.0 MODE 100.0 500.0 You can go from weight in % to weight in kg. at any time. USER_MANUAL_ENG_TPW_4_R1...
  • Page 42 Advanced scale functions Unit of measurement conversion How to covert the unit of measurement into pounds (standard mode) MODE 50.0 110,23 You can convert the unit of measure- ment into pounds at any time. Converting the unit of measurement with free conversion factor 50 .0 faCtor MODE...
  • Page 43 Metrological information of the scale Identification of the metrological software 1. Turn off the scale 2. Follow the procedure: Turn on the scale and press the key during display of the power messages. 888888 888888 2 sec 2 sec Prefix: instrument model xx.
  • Page 44 FAQ - Frequently Asked Questions Print The scale does not print • Another printout is already in progress (busy) • Make sure there is a roll in the printer • The printer does not switch on • The weight is unstable (unStAb) •...
  • Page 45 FAQ - Frequently Asked Questions Weighing The scale does not switch on • Make sure the power cable is connected properly • Connect the battery charger and try again. If the instrument continues to malfunction, contact the dealer. The scale switches off suddenly •...
  • Page 46 Error messages MESSAGE DESCRIPTION SOLUTION Another printout is already in Wait for the printout in progress to be finished and BUSY progress try again. Check the weighing filter. If the support surface is subjected to vibrations from UNSTAB The weight is unstable machinery or moving vehicles, move the scale onto another surface and try again.
  • Page 48 HEAD OFFICE Via Della Fisica, 20 41042 Spezzano di Fiorano, Modena - Italy Tel. +39.0536 843418 - Fax. +39.0536 843521 info@diniargeo.com SERVICE ASSISTANCE Via Dell’Elettronica, 15 41042 Spezzano di Fiorano, Modena - Italy Tel. +39.0536 921784 - Fax. +39.0536 926654 service@diniargeo.com...
