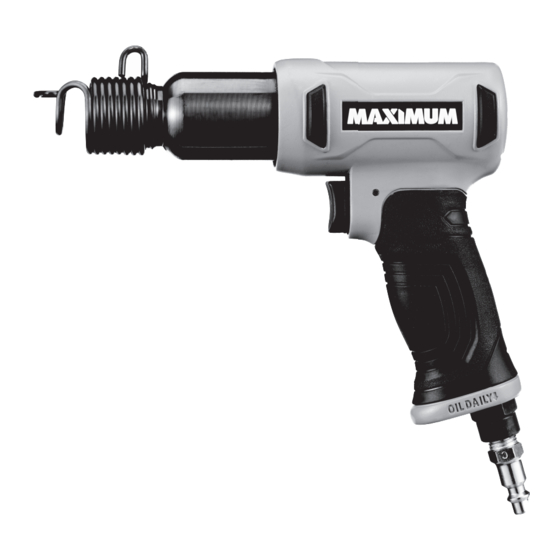

- Page 1 Air-Powered Hammer/Chisel Model no. 058-9365-2 IMPORTANT: INSTRUCTION Please read this manual carefully before MANUAL using this product, and save it for reference.
- Page 2 TABLE OF CONTENTS TECHNICAL SPECIFICATIONS SAFETY GUIDELINES KEY PARTS DIAGRAM TECHNICAL INFORMATION OPERATING INSTRUCTIONS MAINTENANCE TROUBLESHOOTING EXPLODED VIEW PARTS LIST WARRANTY NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-888-670-6682.
- Page 3 058-9365-2 | contact us 1-888-670-6682 TECHNICAL SPECIFICATIONS This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important CHISEL SHANK 2/5" (10.2 mm) to read this manual carefully and understand it thoroughly before using the product.
- Page 4 058-9365-2 | contact us 1-888-670-6682 • Do not use oxygen or any other combustible or bottled gas to Risk of personal injury. Do not direct compressed air from the air hose toward the user or other people. power air-powered tools. Failure to observe this warning can cause an explosion and serious personal injury or Breathing risk.
- Page 5 058-9365-2 | contact us 1-888-670-6682 • Always ensure that the tool has stopped before connecting it to the Disconnect the tool from the air supply and turn off air supply. the compressor before performing any maintenance • Do not wear watches, rings, bracelets or loose clothing when using or changing accessories, when the tool is not in use, any air-powered tool.
- Page 6 058-9365-2 | contact us 1-888-670-6682 General usage description Description Description The MAXIMUM Air-powered Hammer/Chisel features heat-treated impact ® Chuck Air exhaust parts for durability; an alloy steel barrel and heat-treated piston and coil spring retainer to ensure the durability of internal parts, and an ergonomic...
- Page 7 058-9365-2 | contact us 1-888-670-6682 • It is recommended that an automatic in-line filter-regulator-lubricator be Air system used and be located as close to the tool as possible. • Always use clean, dry, regulated, compressed air at a pressure of •...
- Page 8 058-9365-2 | contact us 1-888-670-6682 OPERATION 3. Plug in compressor, turn it on, set the pressure Fig. A Fig. C regulator to 90 PSI (6.3 bar), then attach one Insert the required chisel (1) into the end of the air hose to the compressor and the chuck (2) (Fig.
- Page 9 058-9365-2 | contact us 1-888-670-6682 Storage • Lubrication: If the Air-powered Hammer/ If it is necessary to store the tool for an extended period of time, apply a Chisel and the compressor are not equipped generous amount of lubrication before storing. The tool should be allowed...
- Page 10 058-9365-2 | contact us 1-888-670-6682 Troubleshooting PROBLEM POSSIBLE CAUSES SOLUTIONS The following chart lists common issues and solutions. Please read it Tool runs at Motor parts are 1. Check if there is blockage in air inlet carefully and follow all instructions closely.
- Page 11 058-9365-2 | contact us 1-888-670-6682 Description Description Chisel Quick-change retainer O-ring 4 x 1.1 Cylinder O-ring 4 x 2 Piston Valve stem seat Valve cap O-ring 14 x 2 Cap slice Rubber Cap seat Pin 3 x 20...
- Page 12 058-9372-4 | contact us 1-888-670-6682 model no. 058-9365-2 | contact us 1-888-670-6682 This MAXIMUM product is guaranteed for a period of 5 years This warranty will not apply to any parts other than original parts, from the date of original retail purchase against defects in...
- Page 13 Maximum Canada will maintain this product and replace critical parts Neither the retailer, Maximum Canada, nor the manufacturer shall be liable for which have worn beyond reasonable use through normal use of such any other expense, loss or damage, including, without limitation, any indirect, product, any time during the first year after purchase.
