Victron energy EV Charging Station Manual

Hide thumbs Also See for EV Charging Station:

2020-09-24 13:52

EV Charging Station

NOTE: DRAFT MANUAL. PRODUCT NOT AVAILABLE AND ALSO THERE IS NO

ETA

Description:

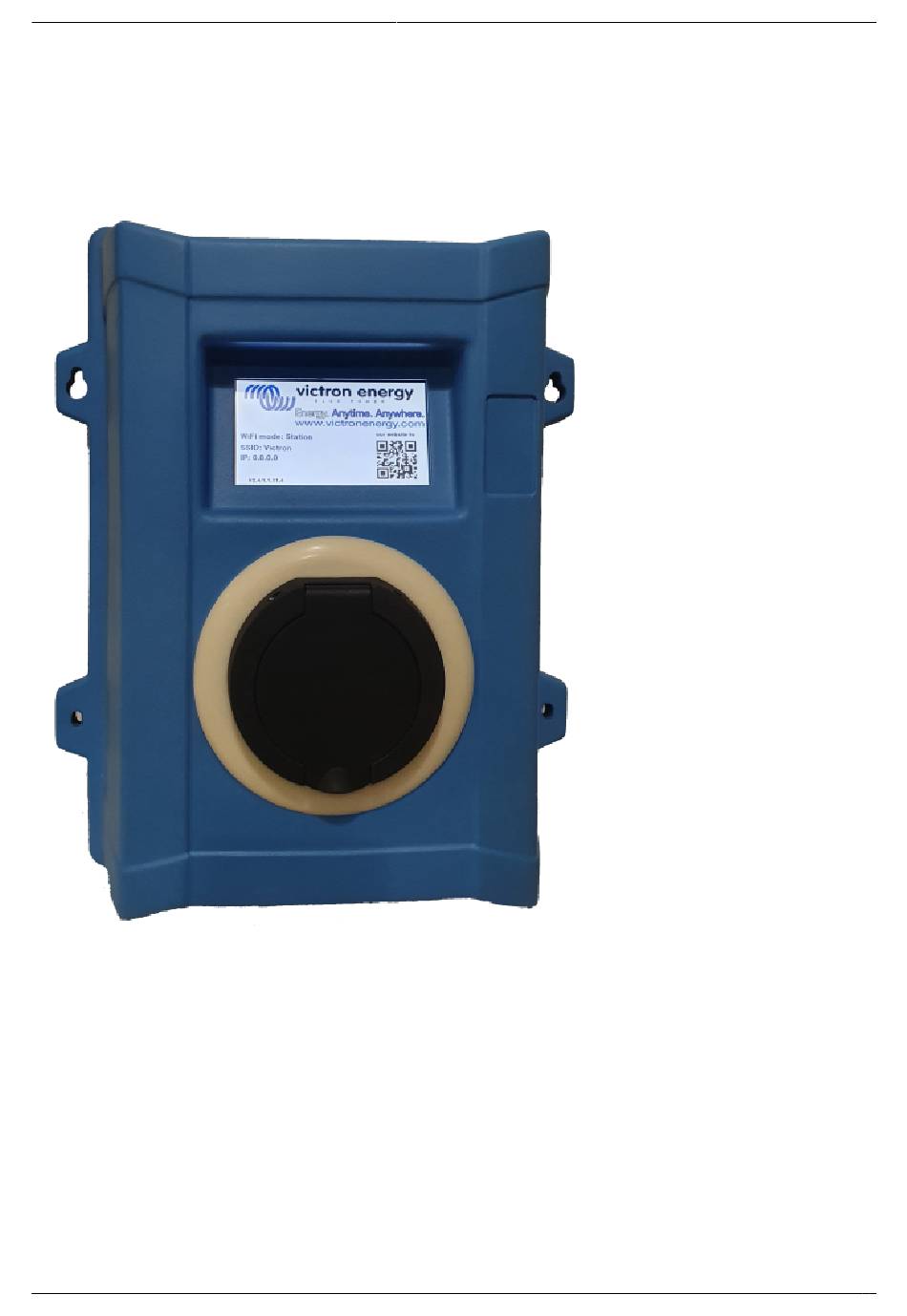

High Power AC Charger -22 kW The maximum power the EV Charging Station can deliver is 22 kW in

3phase mode or 7.3 kW per phase. It also can be used in single phase installations.

Wi-Fi: 802.11 b/g/n for conﬁguration and monitoring For the initial setup but also for monitoring, the

internal Wi-Fi module can be conﬁgured in Access Point mode or Station mode.

Touch Screen 4.3-inch touch screen for monitoring and control.

Light Ring Fully programmable Light Ring around charging port, to fast determine the state of the

device. It can be programmed on the web interface to display diﬀerent light eﬀects base on the

Victron Energy - https://www.victronenergy.com/live/

1/4

EV Charging Station

Table of Contents

Do you have a question about the EV Charging Station and is the answer not in the manual?

Page 1 NOTE: DRAFT MANUAL. PRODUCT NOT AVAILABLE AND ALSO THERE IS NO Description: High Power AC Charger -22 kW The maximum power the EV Charging Station can deliver is 22 kW in 3phase mode or 7.3 kW per phase. It also can be used in single phase installations.
Page 2 Reversing the Neutral or the Ground wire with a Line wire, will damage the device. When the Ev Charging Station is powered up, it will start in access point mode. On the screen, the SSID name and password are visible, also the IP address of the device. You can either use that information to connect to it, or by scanning the QR Code displayed on the screen, it should ask if you want to automatically connect.
Page 3 2020-09-24 13:52 EV Charging Station There are 2 working modes - Manual and Automatic. Manual Mode In this mode, we can control the charging power by using the slider on the LCD screen or the web page. We can start or stop the charging process by pressing the “Start” or “Stop” button when a vehicle is connected to the charger.
Page 4 Last update: 2020-09-22 13:21 evchargingstation https://www.victronenergy.com/live/evchargingstation From: https://www.victronenergy.com/live/ - Victron Energy Permanent link: https://www.victronenergy.com/live/evchargingstation Last update: 2020-09-22 13:21 https://www.victronenergy.com/live/ Printed on 2020-09-24 13:52...
