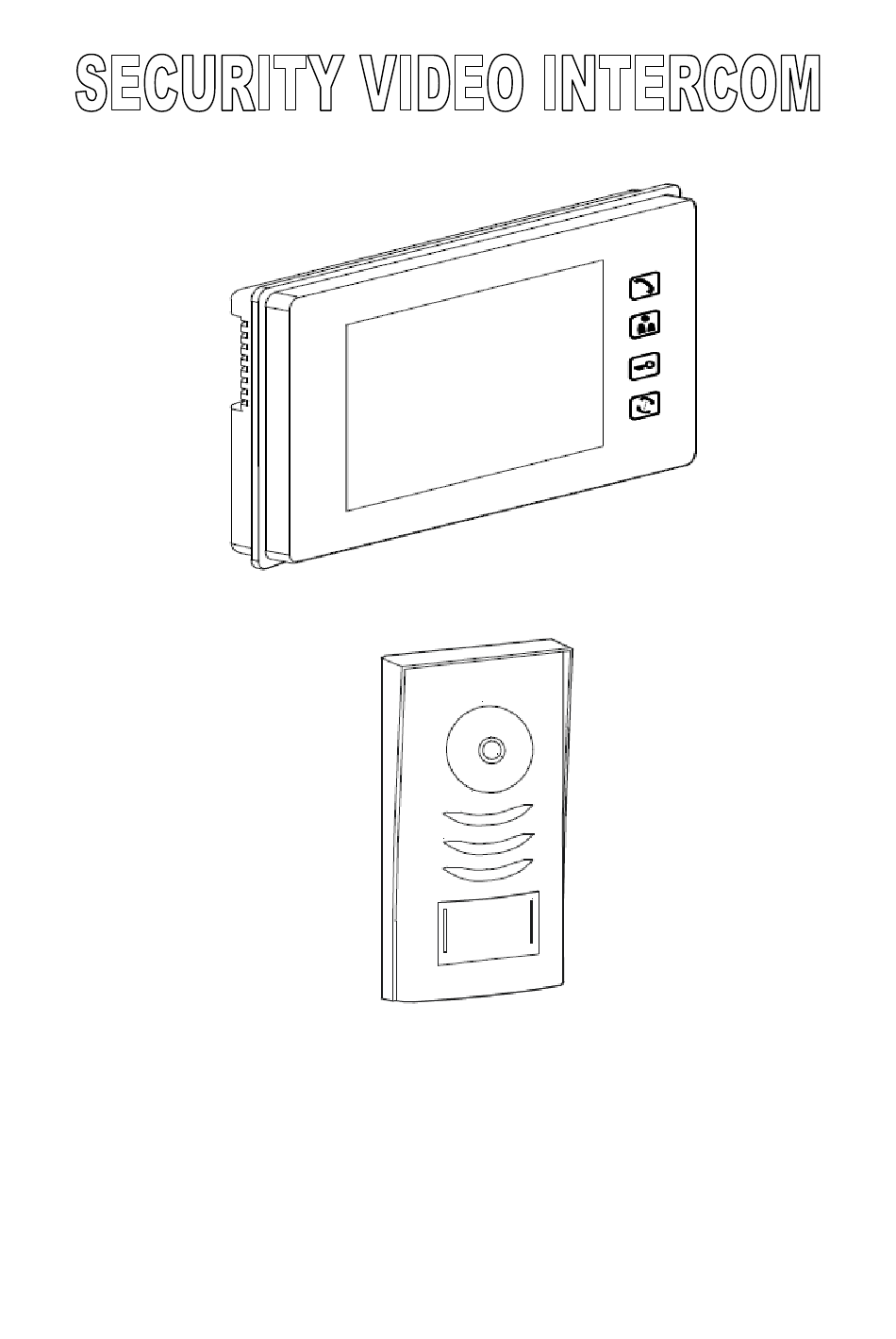

- Page 1 Wide Screen 7” Monitor N T I 700 Manual covers Single and Duo systems...
- Page 2 Video Monitor Installation guide Door Station Installation guide Surface mount with Rain cover mounting bracket Remove front cover Fig.1 Fig.2 Install the door stations about 1.55M~1.60M from the ground Install the door stations about 1.55M~1.60M from the ground Page 1...
- Page 3 Door Station Installation Guide -Surface mount Install the door stations about 1.55M~1.60M from the ground. Keep the units away from snow, rain and direct sunlight Dimensions Overall size of front panel : 99mm(W)x181mm(H)x31mm(D) Fig.3 Door Station Installation and a Name Tag Holder assemble guide Write desired name on a white plastic label provided.
- Page 4 Video Monitor features 1. Screen 2. TALK/OFF button When it rings it is activate a communication line and also to turn the screen off. 3. MONITOR/SWITCH button Press to turn on the monitor manually. Fig.4 When it is on, you can switch the screen from one door station to the other.
-
Page 5: Switching Power Supply
Door Station features Fig.8 Power Supply Switching power supply Primary: AC240V 50Hz Secondary: DC14V 1.5A Fig.10 Page 4... - Page 6 IMPORTANT!! Please read page 13 & 14 for cable requirements BEFORE running cables System Connection with one camera and one monitor Fig.11 Page 5...
- Page 7 IMPORTANT!! Please read page 13 & 14 for cable requirements BEFORE running cables System connection with one camera and one monitor and one audio handse Fig.12 Page 6...
- Page 8 IMPORTANT!! Please read page 14 & 15 for cable requirements BEFORE running cables System connection with one camera and two monitors Fig.13 Page 7...
- Page 9 IMPORTANT!! Please read page 14 & 15 for cable requirements BEFORE running cables System Connection with two cameras and two monitors Fig.14 Page 8...
- Page 10 IMPORTANT!! Please read page 14 & 15 for cable requirements BEFORE running cables System Connection with two cameras and one monitors and one audio handset Fig.15 Page 9...
- Page 11 IMPORTANT!! Please read page 14 & 15 for cable requirements BEFORE running cables System Connection with two cameras and two monitors and one audio handset Fig.16 Page 10...
- Page 12 IMPORTANT!! Please read page 14 & 15 for cable requirements BEFORE running cables System Connection with two cameras and one monitor and three audio handsets Fig.17 Page 11...
- Page 13 Fig.18 Page 12...
- Page 14 Fig.19 Basic operation When a caller presses the call button on the door station, a Ding-Dong sounds on the monitor and the video screen light up for 30 seconds. If you are satisfied with the identity of the caller press TALK button to speak (The screen will automatically turn off after 60 seconds).
- Page 15 Page 14...
- Page 16 Page 15...
-
Page 17: Warranty Card
WARRANTY CARD NB Please keep this document safe, as it is proof of your Warranty Your Video door system comes with a one year Manufacturers Warranty. When used normally, the following services are offered: 1. Replacement for malfunctioning parts in first three months 2.
