- Page 1 Limited ACR330 Bus Validator II User Manual V1.00 Subject to change without prior notice info@acs.com.hk www.acs.com.hk...
-
Page 2: Table Of Contents
Table 1 : ACR330 Parts Description ....................... 4 Table 2 : ACR330 Connection Ports Description ................... 5 Table 3 : ACR330 Input Power Pins Description ..................6 Table 4 : ACR330 LTE Board Description ....................8 Page 2 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 3: Introduction
Visa PayWave and MasterCard. The purpose of this document is to provide a detailed guide on how to use the ACR330. Page 3 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00... -

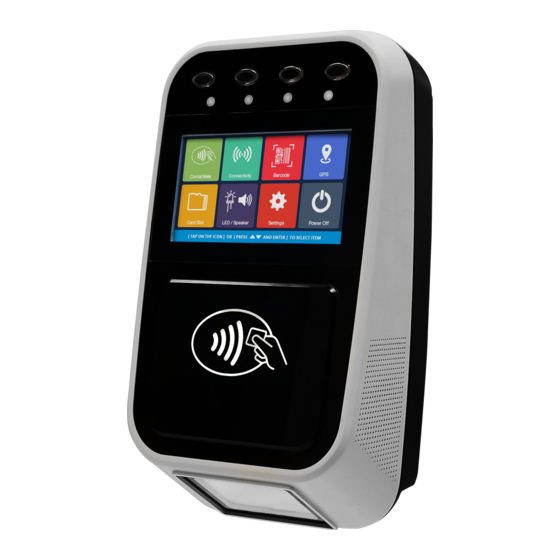

Page 4: Acr330 Overview
1D/2D Barcode Scanning Area Speaker Green LED Indicator (For Driver) Red LED Indicator (For Driver) Buzzer Power Button SIM and SD Card Cover Back Cover Table 1: ACR330 Parts Description Page 4 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 5: Connection Ports
RJ11 Serial Port (RS232, RS485) USB Host Ethernet USB Client (for internal debugging) Socket for External GPS Antenna SAM Cover with 4 ISO7816 SAM Socket inside Table 2: ACR330 Connection Ports Description Page 5 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 6: Input Power, Rs232, Rs485 Pin Assignment
Table 3: ACR330 Input Power Pins Description Note: Below is the application direct access device paths list: • RS232 - /dev/ttyO0 • RS485 - /dev/ttyO1 • USB disk - /media/udiskp1 Page 6 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 7: Sam Slot Arrangement
Limited 2.4. SAM Slot Arrangement The SAM Slot Arrangement is shown in the image below. Figure 4: SAM Slot Arrangement Page 7 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 8: Lte Board Description
Note: Jumper is not included in standard product. Table 4: ACR330 LTE Board Description Note: Below is the application direct access device paths list: • MicroSD - /media/sdcardp1 Page 8 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 9: Replace Real Time Clock Battery
1. Unscrew two pieces screws and take them out. The exact locations are shown in the image below. Note: Be careful in handling the screws so they will not drop inside the bus validator. 2. Using a screw driver, take out the LTE board. Page 9 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00... - Page 10 3. The coin cell may now be accessed. Replace the old coin cell with a new one. 4. Return the LTE board. Ensure that the two screws and IPEX connectors are located correctly. The exact locations are shown in the image below. Page 10 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
-
Page 11: Acr330 Device Setup
Notes: 1. Only use firmware files officially provided by Advanced Card Systems Ltd. 2. Do NOT load the ACR330 firmware file into other ACS readers. Failure to follow the above reminders may cause damage to the smart card reader. Components needed: •... - Page 12 Note: The Win32 Disk Imager application may be downloaded online for free. 3. Select the image file and device. 4. Click Write and wait for the progress bar to be complete. Page 12 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
- Page 13 8. After around 8 minutes, the LED will turn off. The upgrade is completed. 9. Remove the SD card. 10. Reboot the device for the changes to take effect. Page 13 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
-
Page 14: Access Acr330 Through Pc Using Lan
• RS232 debug console cable • Bitvise SSH Client (Tunnelier) SFTP Application Note: The Bitvise SSH Client (Tunnelier) SFTP Software may be downloaded from • https://www.bitvise.com/ssh-client-download. • LAN cable Page 14 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00... - Page 15 RJ11 serial port at the back of the ACR330 is shown in the image below. Note: Connect the other end of the cable to the PC serial port or USB-RS232 converter. Page 15 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
- Page 16 8. Login with the IP address in step 5. a. Login name: machinekit b. Password: machinekit 9. The ACR330 may now be accessed on the PC. Note: For more details, please refer to ACR330 API.chm. Page 16 of 16 ACR330 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
- Page 17 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection ...
