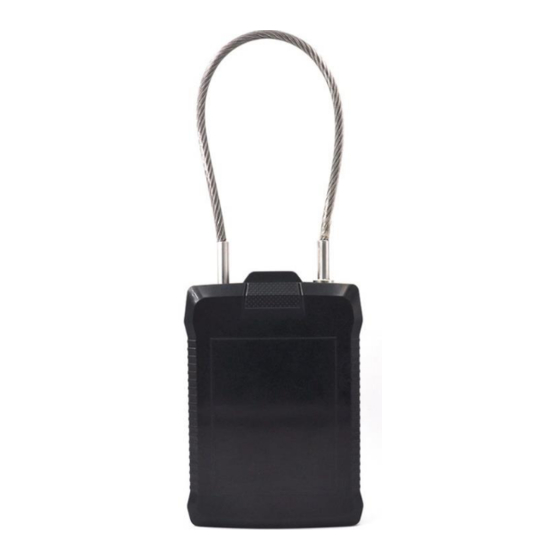

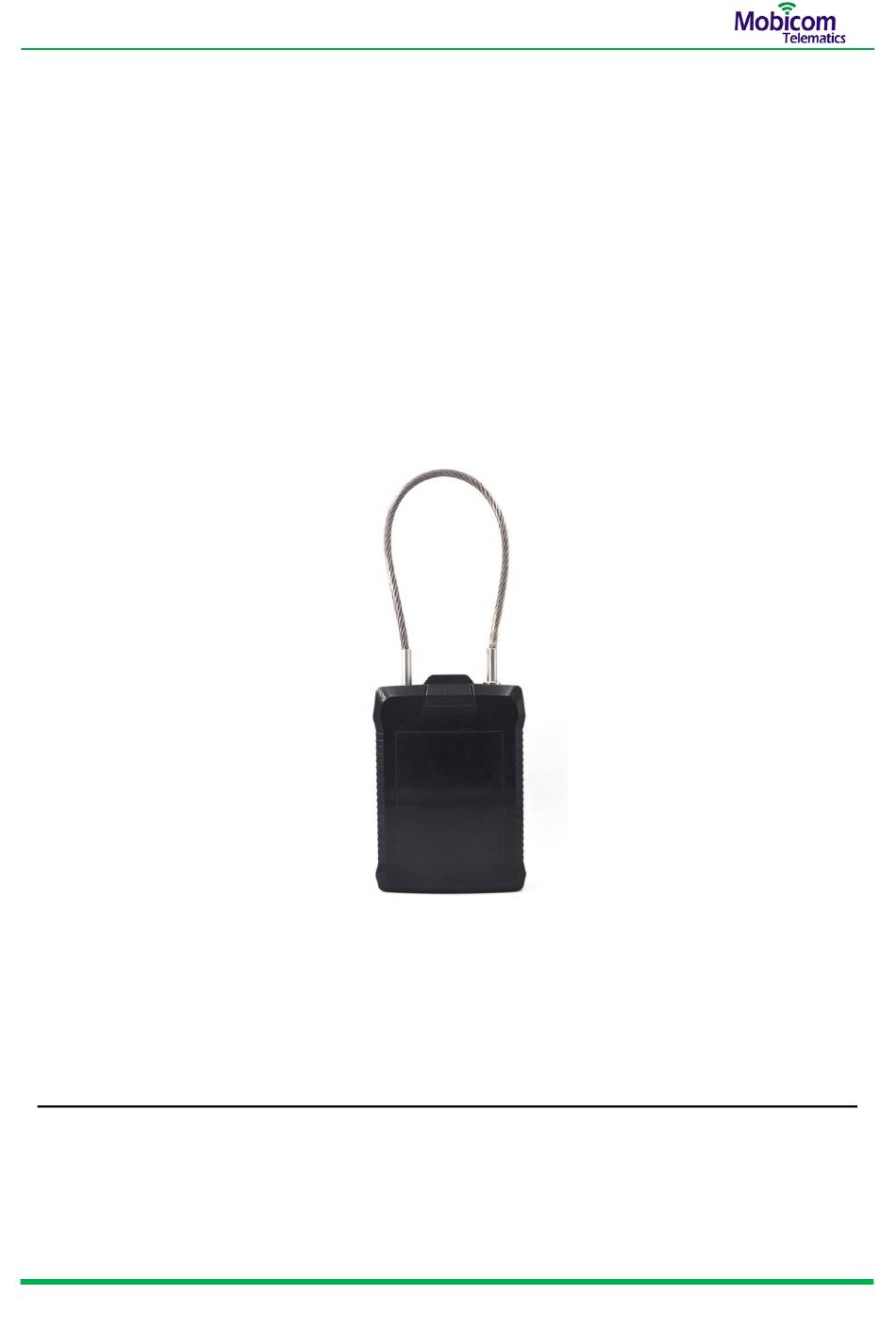

Mobicom Telematics –GL600 GPS Smart Lock User Guide
GL600 GPS Smart Lock
User Guide
V2.1
Shenzhen Mobicom Telematics Co.,Ltd
Tel: + 86 755 8450 8126
RM602,Xichuangcheng,No.144,Zhiwuyuan Road,
Email: sales@mobicomtracking.com
Longgang District, Shenzhen,China
Website:
http://www.mobicomtracking.com
Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved.
1 / 20
Advertisement
Table of Contents
Summary of Contents for MobiCom GL600
- Page 1 Mobicom Telematics –GL600 GPS Smart Lock User Guide GL600 GPS Smart Lock User Guide V2.1 Shenzhen Mobicom Telematics Co.,Ltd Tel: + 86 755 8450 8126 RM602,Xichuangcheng,No.144,Zhiwuyuan Road, Email: sales@mobicomtracking.com Longgang District, Shenzhen,China Website: http://www.mobicomtracking.com Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 1 / 20...
-
Page 2: Table Of Contents
7.6.2.1 Unlock the device by SMS command ..................16 7.6.2.2 Unlock the device by authorization RFID tags ............... 16 8 Tracking the device in Mobicom GPS Platform ....................... 17 8.1 Principle of communication ......................... 17 8.2 Get the login ID ............................17 8.3 Login Software Platform .......................... -
Page 3: Copyright And Disclaimer
Mobicom Telematics is not liable for any loss or injury caused by using or referencing to any products. 2 Product Overview GL600 is 2g/3g Intelligent Remote GPS Lock,bulit-in10400maH battery, G-sensor and RFID reader, andmonitor the container or asset's location and door status. - Page 4 /unlocking RFID tag ID, report time, locking /unlocking successful or failed, Wake up by 5 conditions vibration, back cover opened, swiping RFID tags, Lock/unlock, RTC(every 30 minutes) FOTA Firmware upgrading via OTA Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 4 / 20...
-
Page 5: Specifications
-40°C -- +80°C Humidity 5%—99% Standard battery Rechargeable battery 10400mAh Average working current <90 mA Average current standby <100uA Waterproof standard IP67 Transmission mode Support TCP(GPRS) or SMS(message) Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 5 / 20... -
Page 6: Standard Package And Optional Accessories
Figure Standard Optional GL600 Main device ● Lock rope ● RFID tags or Card(2 pcs) ● Micro USB configure cable ● Charger Adapter ● (DC5V- 2A output) Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 6 / 20... -
Page 7: Description Of Product Appearance
Mobicom Telematics –GL600 GPS Smart Lock User Guide 6 Description of Product Appearance 6.1 Front View Lock rope: standard size 35 cm 2Swipe card area：Swipe RFID card Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 7 / 20... -
Page 8: Bottom View
Mobicom Telematics –GL600 GPS Smart Lock User Guide 6.2 Bottom View Charger Interface 5V DC -2A Charger Buzzer: Different Device Status ,Buzzer reminder Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 8 / 20... -
Page 9: Side View
6.3 Side View LED indicator: GPS-Blue led : GPS fix Status GSM-Green led: Cellular network connection Status LVS-Yellow led: Low Battery Status CHG-Red led: Charging or Charging full Status Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 9 / 20... -
Page 10: Back View And Back Cover Opened
Back View Cushioned silicone pad: Prevent equipment damage when equipment crashes Nameplate: Device Brand Name,IMEI and so on. 3Strong magnet: Prevent equipment shake and collision monitoring assets Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 10 / 20... -
Page 11: Back Cover Opened
2 inside, Press downthen push the SIM card holder up vertically to lock the SIM card Light sensor：it’s used to detect whether Back Cover opened or not. Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 11 / 20... -
Page 12: First Use
Blinking every 3 sec ,It indicates low battery status, Please refer to section ‘6.2 Bottom View’ , charge the device by 5V DC adapter about 8 hours. Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 12 / 20... -
Page 13: Led Indicators And Buzzer Instruction
After unlock 10 sec ,Buzzer ring every 1 after unlocking sec, GPS led keep blinking, Stopped until lock rope inserted or 60 Insert lock rope but never locking sec later automatic successful Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 13 / 20... -
Page 14: Device Initialization By Sms Command
30 sec) 7570101998,09-28 device ID: 7570101998 12:11:02,Speed:0km/h, Query current Date time: 09-28 12:11:02 (P02) Battery:85%,GPS:3,Loc location of device Month/day HH:mm:ss Close, GPS Speed: Speed:0km/h Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 14 / 20... - Page 15 ‘0’ (P10,1,-180) (P13) (7570101998,P13) Restore Factory Except for IP address, VIP setting of device numbers, APN, APN account & password, all parameters will be factory defaults. Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 15 / 20...
-
Page 16: Description Of Product Working Process
7.6 Lock and Unlock Device 7.6.1 Lock the device 1.When inserted the two Probes of lock rope inside GPS lock, the GL600 device will lock itself automatically. Meanwhile User will hear the Motor running, Buzzer ring twice and GPS led blinking once. -
Page 17: Tracking The Device In Mobicom Gps Platform
Monitor the tracker’s current location and others. 8.3 Login Software Platform Please get the Web App link / PC based software / Android/IOS App and Manuals from Mobicom sales or other Platform Providers , and manage your vehicles and trackers in the software Platform. - Page 18 Mobicom Telematics –GL600 GPS Smart Lock User Guide http://13.228.118.160:8080/login/ Login Interface as below: Main Interface as below: Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 18 / 20...
-
Page 19: Device Installation
Mobicom Telematics –GL600 GPS Smart Lock User Guide 9 Device Installation GL600 device is easy to install ,Installation personnel insert the lock rope and across the lock hole, and its strong magnet will attach container body. Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. -
Page 20: Warranty Terms
The warranty is not applicable to cases other than defects in material, design and workmanship. Contact Us Shenzhen Mobicom Telematics Co.,Ltd RM602,Xichuangcheng,No.144,Zhiwuyuan Road, Longgang District, Shenzhen,China Telephone number: +86 755 8450 8126 Email address: support@mobicomtracking.com Website: http://www.mobicomtracking.com Copyright © 2019 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 20 / 20...
