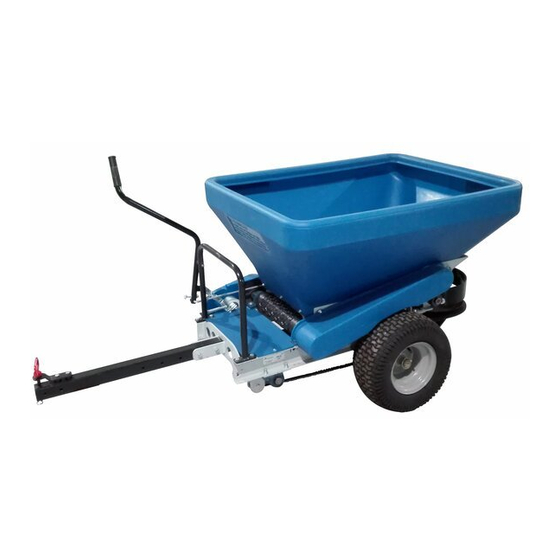

- Page 1 REGISTER YOUR ECOLAWN www.ecolawnapplicator.com SERIAL NUMBER: Operator's Manual www.ecolawnapplicator.com Model Eco 50 Tow-Behind Self-Propelled Broadcast Top Dresser...
- Page 2 THANK YOU for purchasing an Ecolawn Top Dresser. Your new machine has been carefully designed and manufactured to provide years of reliable and productive service. This manual will provide you with safety instructions and general maintenance tips that will help to keep your machine in top running order. Please read this manual and assembly part/list carefully before assembling, operating, or servicing your equipment.
-
Page 3: Table Of Contents
3. HOPPER 4. DECALS OPERATING INSTRUCTIONS 1. PROPER TOPDRESSING 2. OPTIMAL OPERATION 3. MAIN USES USING THE ECOLAWN FOR THE FIRST TIME OPERATING THE ECOLAWN APPLICATOR CHOOSING AN APPROPRIATE SUBSTANCE 1. QUALITY AND CHARACTERISTICS 2. FRIABILITY 3. MOISTURE CONTENT TROUBLESHOOTING AND ADJUSTMENTS GENERAL MAINTANCE 1. -
Page 4: Warranty
Ecolawn Applicator® One Year Limited Warranty Terms: Ecolawn Applicators are guaranteed to be free of defects in materials or workmanship for one year from the registered purchase date. To qualify, the applicator must be registered online at www.ecolawnapplicator.com (under the product tab). This one-year warranty is extended only to the original, registered purchaser of the Ecolawn Applicator. -
Page 5: Safety Instructions
• Never allow children to operate power equipment. • Do not use the Ecolawn Applicator on any slope that is greater than 10 to 15 degrees. • Do not modify the Ecolawn Applicator. Any alterations to the machine will void the warranty. -
Page 6: Operating Instructions
Sand 10 cubic feet: 800 lbs 3. Main Uses The Eco 50 Tow-Behind Broadcast Compost Spreader is designed to spread compost, peat moss, soil amends and seeds for lawn restoration and renovation. To learn more about compost topdressing, please visit our website at www.ecolawnapplicator.com. -
Page 7: Using The Ecolawn For The First Time
Tighten these when necessary. Step 5. After 8 hours of use, inspect the nuts and bolts again and tighten if necessary. If some pulleys do not run correctly after these trials, please refer to Ecolawn Application: Troubleshooting and Adjustments. -
Page 8: Operating The Ecolawn Applicator
Operating the Ecolawn Applicator Step 1. Filling the Hopper Before filling the hopper, first ensure that the Feed Flap (Figure 1) is properly closed by pushing the Feed Flap Lever all the way down (Figure 2). Fill the hopper with the substrate to be spread. Note: Never exceed the hopper's maximum load capacity (440 lbs/200 kg);... - Page 9 Step 2. Starting to spread Before pulling the Eco 50, make sure the conveyor system is not engaged. Be sure that the Conveyor Action Lever (Figure 3) is disengaged and the Feed Flap is properly closed. Figure 3 Step 3: Topdressing with a Substrate After loading the machine, transport to the desired location to start spreading.
- Page 10 Step 4. Stopping the Spreader When the hopper is empty, release the Conveyor activation Lever to disengage the conveyor belt and close the feed flap. If filling the hopper again, tow the unit to the substrate source and then refill the hopper. P a g e 10 | 16 Turf Pros #1 Top dresser...
-
Page 11: Choosing An Appropriate Substance
1. Quality and Characteristics It is very important to choose a high-quality topdressing substrate. For greatest cost efficiency, Ecolawn recommends using a bulk substrate which is friable, has a moisture content lower than 65%, and contains no inorganic matter (plastic, glass, or concrete, etc.) or raw organic matter (such as pieces of wood, raw manure). -
Page 12: Troubleshooting And Adjustments
Troubleshooting and Adjustments Important: Most adjustments are remedied in the field with just a few procedures The most frequent problems encountered involve the conveyor, but these can easily be resolved with a few simple solutions. Check the following issues for your particular problem, and make the corresponding adjustments as needed. - Page 13 Issue: The spreader's hopper is full. The conveyor has been activated by pulling the conveyor activation lever toward you, but the conveyor belt is not turning even though the tension rod has been adjusted properly and the conveyor drive roller is turning. Solution: Adjust the tension bolts of the conveyor belt system on each side, 1/2 turn at a time on both sides equally, to increase the tension on the conveyor belt.
- Page 14 Issue: The spreader moves forward and the conveyor works, but the spreading disk does not spin. Solution: To free the disk, turn the machine off, and then turn the spinner disk backward manually to remove any debris. Visually inspect the pulleys and clean them as needed. If the pulley groove used to turn the spinner disk has collected substrate, it may cause the belt to come off.
-
Page 15: General Maintance
General Maintenance 1. Shaft Bearings Grease the bearings after every 50 hours of operation. 2. V-belts The proper belt tension is tight enough that the belts will not slip during operation. Occasionally, belt tension must be readjusted. Do not over-adjust the tension, as this may damage other parts. ww w. -
Page 16: Sand Deflector
Assembly Steps P a g e 16 | 16 Turf Pros #1 Top dresser ww w. ec o l aw n a pp l ic at o r .c o m...
