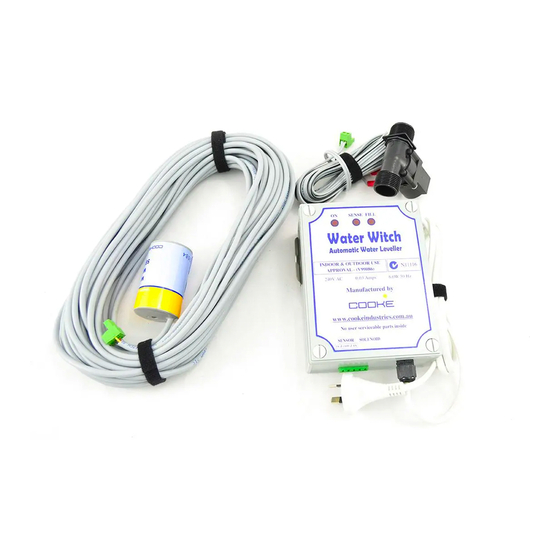

- Page 1 WATER WITCH INSTALLATION GUIDE A fully automatic Pool and Spa water levelling system. Follow these simple installation guidelines once and you will easily remember how to install the unit next time. Full Electrical Certification (V99086) Inside & Outside Use...
- Page 2 THREE MAIN COMPONENTS Control Box Co-ordinates the above items with visual ndicators of status shown in diagram below. Level Sensor Our patented levelling sensor designed to fit into 40mm class 9 pipe. Solenoid Solenoid with indicator arrow that controls the flow of water. When light is on status is as follows: - Unit Operating SENSE...
- Page 3 Standard Installation Solenoid Water Witch Water Supply Minimum 20mm Gap 80/40 Reducing Coupling Sensor Relative Water Level Pool SENSOR MOUNTING 40mm Eyeball Fittings Cut slot in 40mm 40mm PVC Pipe Pipe for cable Pipe Sensor Lead Balance Tank Installation Water Witch Solenoid Wet Deck Grate...
- Page 4 5 meters long with plugs attached for connection to the base of the control box as shown. (Water Witch 20 & 30 for Balance Tank installs come with 20 & 30 meter Sensor lead respectively).
-
Page 5: Initial Setting Up
INITIAL SETTING UP Step by Step Ensure the pool water level is set to the required level 1. Disconnect the power lead from the mains (power off) 2. Connect the sensor and solenoid plugs to control box 3. urn the water supply to the solenoid on 4. -
Page 6: Dip Switch Settings
330 Seconds PLEASE READ This completes the Water Witch installation guide. If the unit has been installed properly and the set up instructions on page followed the unit should now be automatically detect- ing the level of the pool and activation the solenoid accordingly.
