1MRS756102
2.2.
2.3.
Protection System Simulator SIM600
Installation Manual
Ordering information

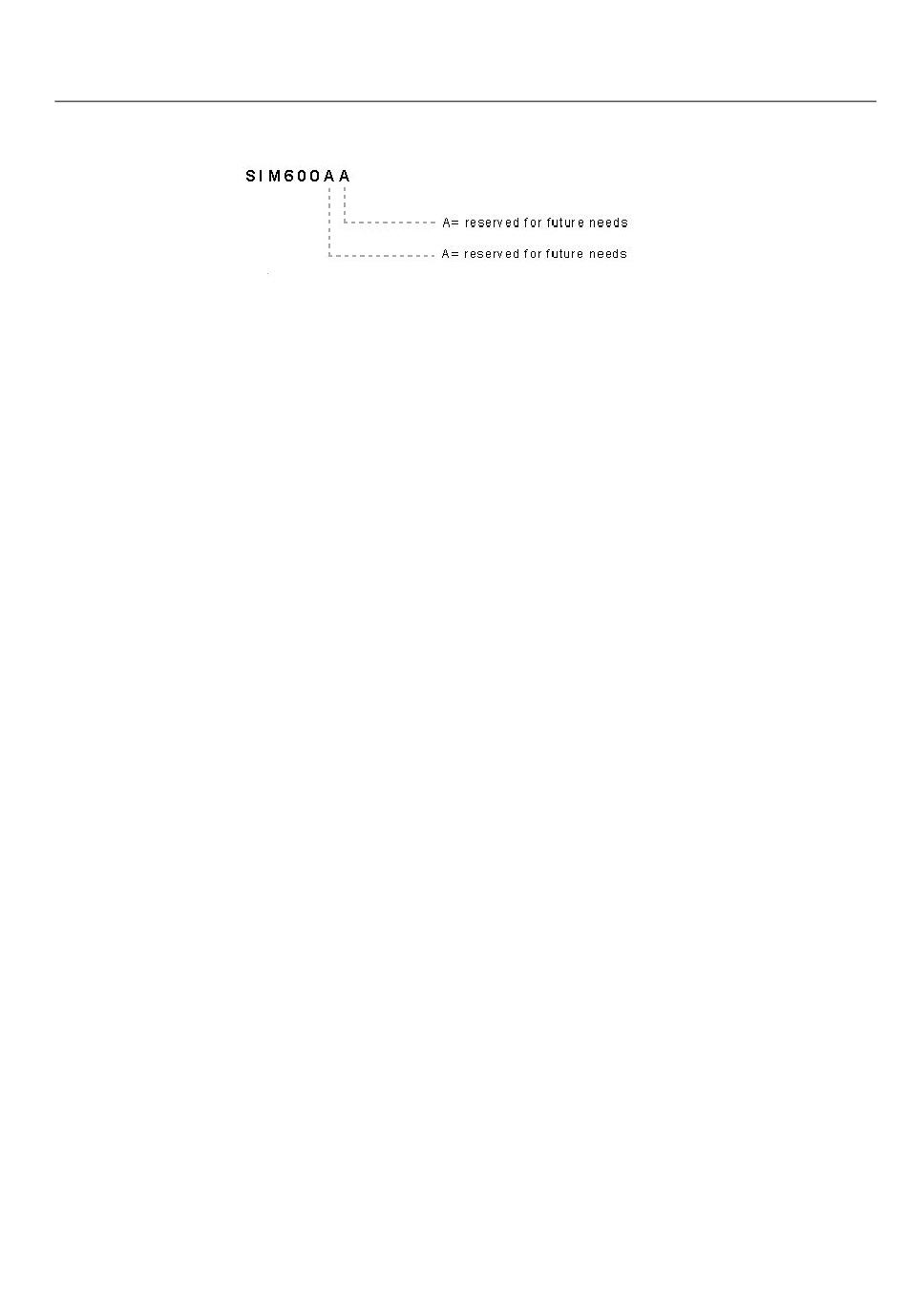

Figure 2.1-3 Ordering code for SIM600
Option available:
• Package of cables: 5 Analogue + 1 mA cables
• Ordering code: 1MRS090070
Mounting:
•
Ordering code: 1MRS050993
Commission order by ABB:
•
Current amplifiers (Tillquist)
•
CXV30 Rogowski-Voltage to AC Current amplifier
• Voltage amplifiers (Tillquist)
• Three-phase RHVD-voltage power-amplifier, type: PXV30-X-I/O V

Hardware

Protection System Simulator SIM600 is a microprocessor-based device that can be used
as a stand-alone device or connected to a PC. It can be configured in any way required.
Protection System Simulator SIM600 consists of a central unit, housed in a metallic case.
The central unit contains a USB-connection to a PC, eight pushbuttons, and 16 LED
indicators. For more information on connectors for SIM600, see 4.3, Configuring the
connectors.

SIM600 Editor

SIM600 Editor is used for configuring Protection System Simulator SIM600 for the
required task. SIM600 Editor is not mandatory for the operation of SIM600, if the required
configuration is already available.
SIM600 Editor has two views, the GUI Editor and the IO Editor view.
GUI Editor
GUI Editor is used for drawing the user interface that includes all the functional objects
required by the application. The objects available are shown in the GUI Tools window
11
