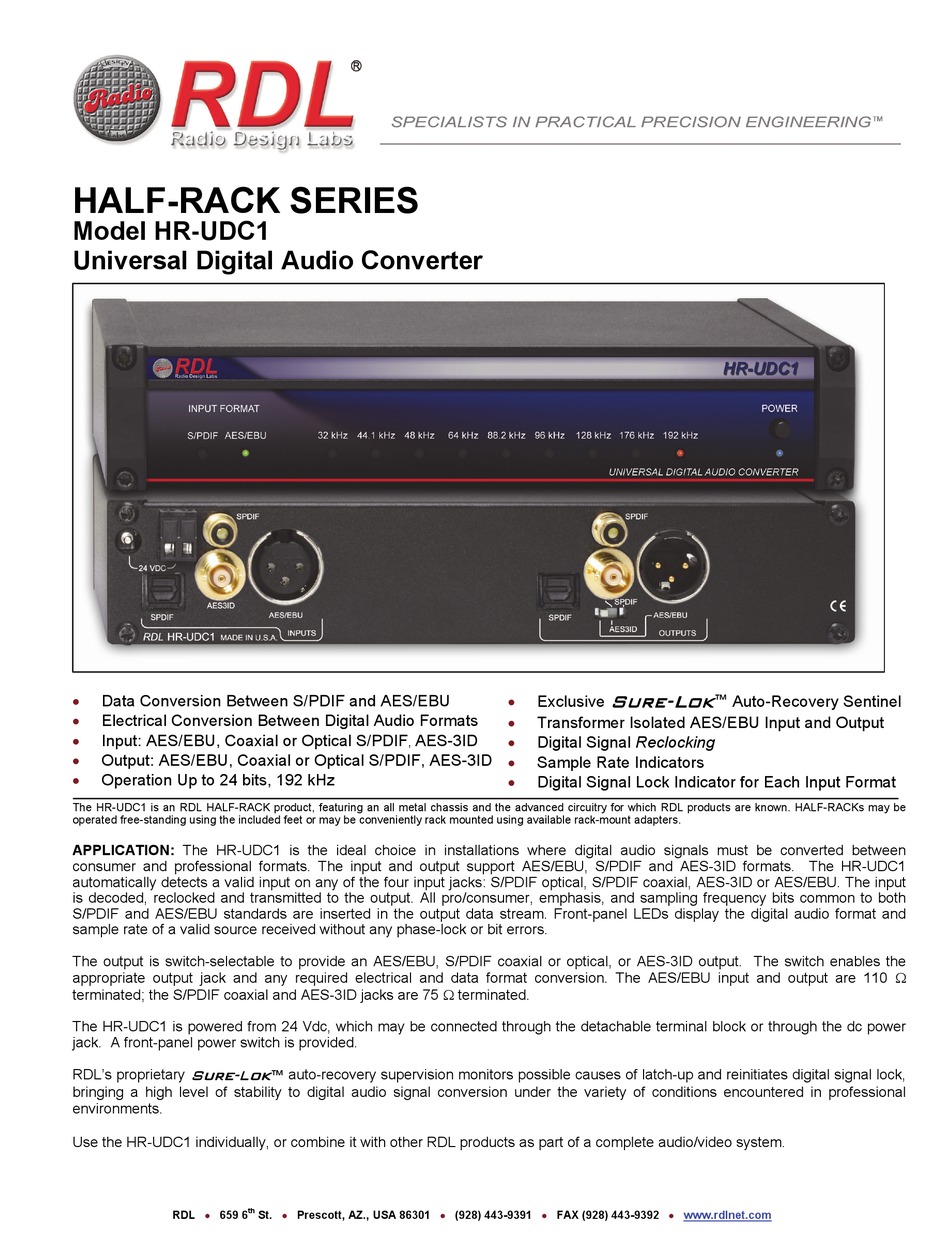

RDL Half-Rack Series Installation & Operation

HALF-RACK SERIES

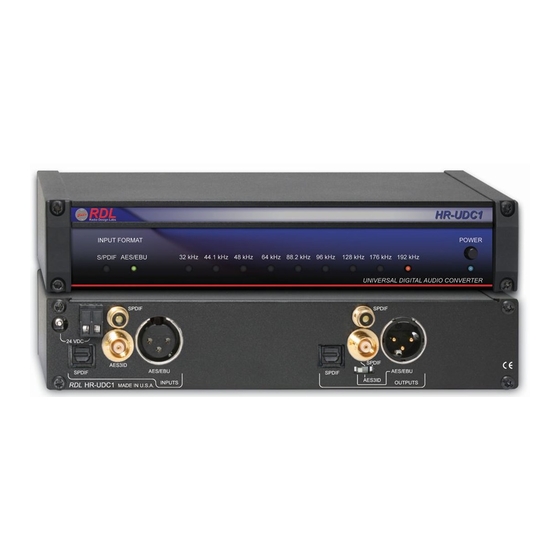

Model HR-UDC1
Universal Digital Audio Converter

Data Conversion Between S/PDIF and AES/EBU

Electrical Conversion Between Digital Audio Formats

Input: AES/EBU, Coaxial or Optical S/PDIF

Output: AES/EBU, Coaxial or Optical S/PDIF, AES-3ID

Operation Up to 24 bits, 192 kHz
The HR-UDC1 is an RDL HALF-RACK product, featuring an all metal chassis and the advanced circuitry for which RDL products are known. HALF-RACKs may be
operated free-standing using the included feet or may be conveniently rack mounted using available rack-mount adapters.
APPLICATION: The HR-UDC1 is the ideal choice in installations where digital audio signals must be converted between
consumer and professional formats. The input and output support AES/EBU, S/PDIF and AES-3ID formats. The HR-UDC1
automatically detects a valid input on any of the four input jacks: S/PDIF optical, S/PDIF coaxial, AES-3ID or AES/EBU. The input
is decoded, reclocked and transmitted to the output. All pro/consumer, emphasis, and sampling frequency bits common to both
S/PDIF and AES/EBU standards are inserted in the output data stream. Front-panel LEDs display the digital audio format and
sample rate of a valid source received without any phase-lock or bit errors.
The output is switch-selectable to provide an AES/EBU, S/PDIF coaxial or optical, or AES-3ID output. The switch enables the
appropriate output jack and any required electrical and data format conversion. The AES/EBU input and output are 110 
terminated; the S/PDIF coaxial and AES-3ID jacks are 75  terminated.
The HR-UDC1 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power
jack. A front-panel power switch is provided.
Sure-Lok
RDL's proprietary
bringing a high level of stability to digital audio signal conversion under the variety of conditions encountered in professional
environments.
Use the HR-UDC1 individually, or combine it with other RDL products as part of a complete audio/video system.
th

RDL 659 6
AES-3ID
,
auto-recovery supervision monitors possible causes of latch-up and reinitiates digital signal lock,
™

St. Prescott, AZ., USA 86301
Sure-Lok

Exclusive

Transformer Isolated AES/EBU Input and Output

Digital Signal Reclocking

Sample Rate Indicators

Digital Signal Lock Indicator for Each Input Format
 
(928) 443-9391 FAX (928) 443-9392
™ Auto-Recovery Sentinel

www.rdlnet.com
