CONNECTION OF THE COMbIVERT F5-AIC

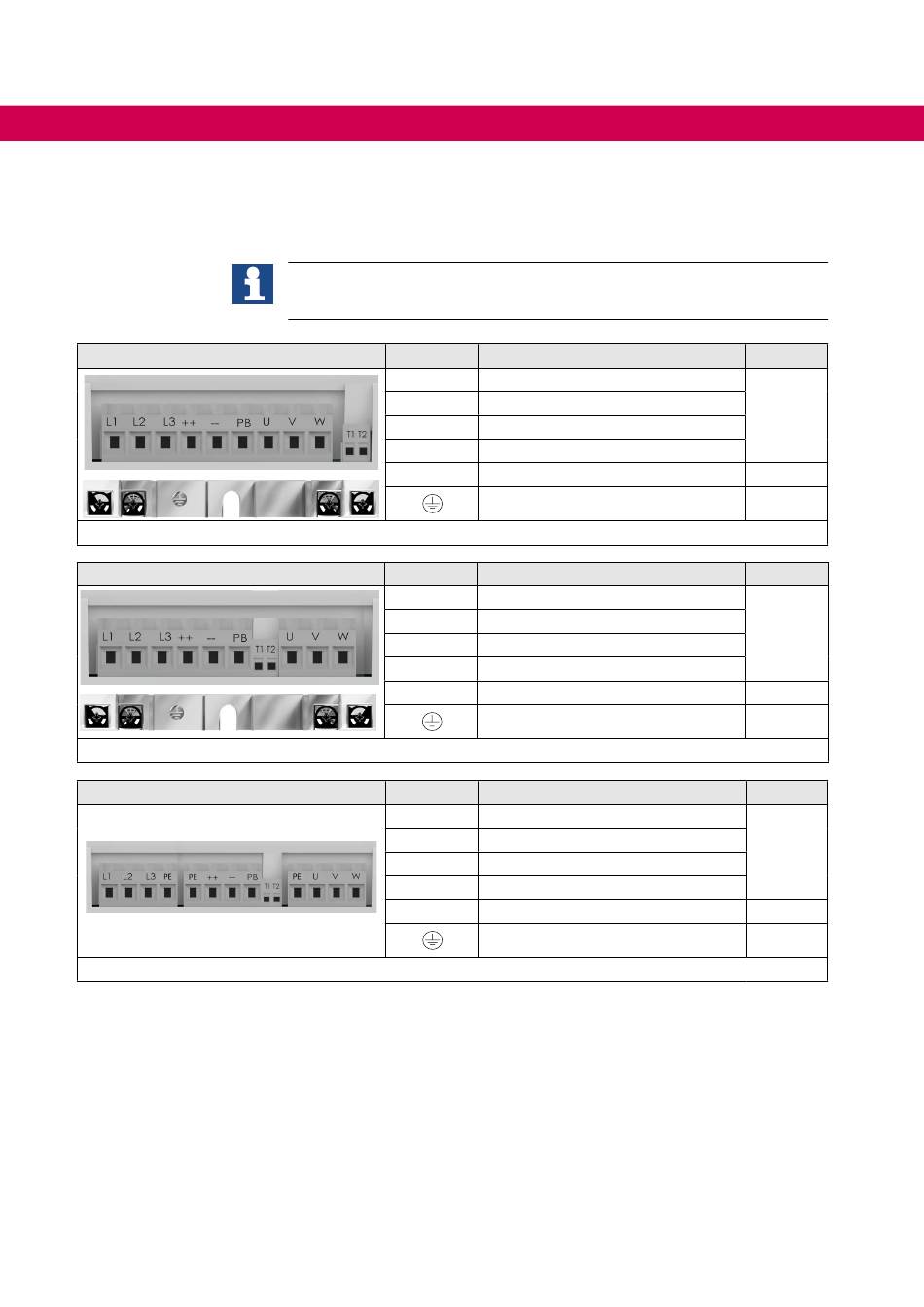

6.2 Terminal blocks of the devices

The assignment of the numbering under "Terminal" for cross sections and tightening
torques =>
Housing E
Figure 2:
Terminal blocks housing E
Housing G
Figure 3:
Terminal blocks housing G
Housing H
Figure 4:
Terminal blocks housing H
36
„Cross-sections and tightening torques of the
The + contact of the temperature evaluation must be connected to terminal T1
to terminal block X1A! For more information
=>
„Temperature detection T1,
Name
L1, L2, L3
U, V, W
++, PB
++, – –
T1, T2
PE,
Name
L1, L2, L3
U, V, W
++, PB
++, – –
T1, T2
PE,
Name
L1, L2, L3
U, V, W
++, PB
++, – –
T1, T2
PE,
terminals".
T2".
Function
3-phase mains connection
AIC mains connection
Connection for braking resistor
Connection for DC-bus connection
Connection for temperature sensor
Connection for protective earth
Function
3-phase mains connection
AIC mains connection
Connection for braking resistor
Connection for DC-bus connection
Connection for temperature sensor
Connection for protective earth
Function
3-phase mains connection
AIC mains connection
Connection for braking resistor
Connection for DC-bus connection
Connection for temperature sensor
Connection for protective earth
Terminal
1
2
3
Terminal
4
2
3
Terminal
5
6
5
