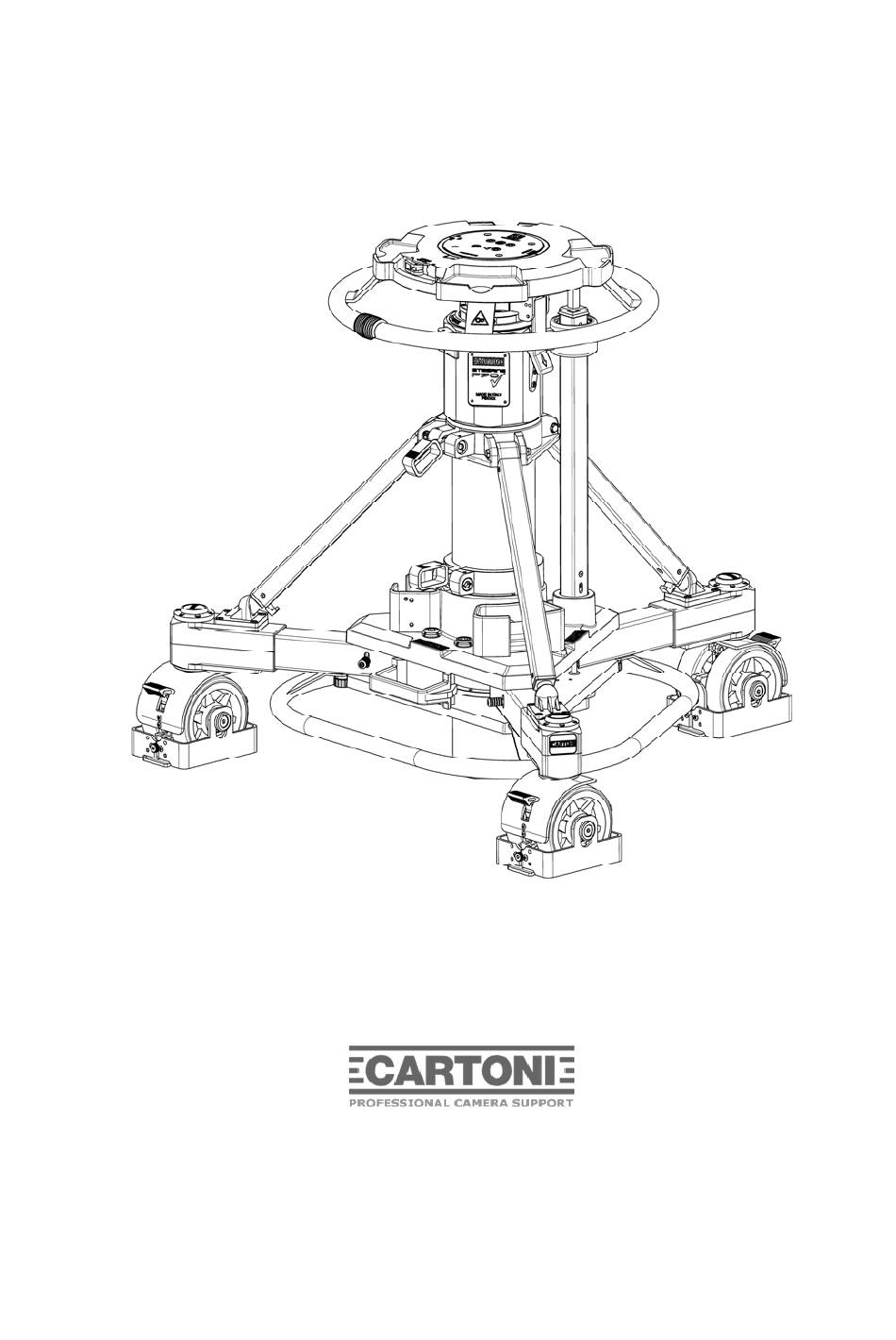

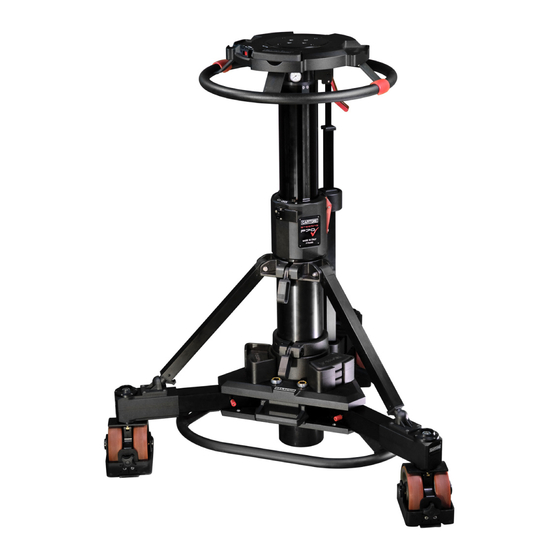

  • Page 1 ’ AINTENANCE AND USER S MANUAL STEERING P70...
  • Page 2 In order to properly and safely use the STEERING P70 Pedestal read this manual very carefully and follow the instructions. All back-up material, and this manual in particular, should be stored in a safe place for future reference.

  • Page 3: Table Of Contents

    ..........................26 AFETY PRECAUTIONS ISASSEMBLING AND STORAGE ERVICE 6.1. R ..........................30 OUTINE AINTENANCE 6.2. E ....................... 30 XTRA AINTENANCE AND SPARE PARTS 6.3. W ......................31 HEEL EXCHANGE RECOMENDATION 6.3. D ............................32 ECOMMISIONING Steering P70 User’s Manual Page 2...

  • Page 4: Introduction

    The correct and safe use of this Pedestal is only guaranteed if it is used in accordance with the following manual and other documentation that accompanies the STEERING P70 Pedestal. It is therefore essential to read all the documentation carefully and to keep it in a safe place.

  • Page 5: Warranty

    In the case of replacement of single parts, these can be supplied free of charge by CARTONI S.p.A., but the owner will bear the cost of transport/duty charges for the parts. The warranty is only valid if the Pedestal has been used properly as outlined in the manu- facturer’s instructions and has not been exposed to any mishandling.

  • Page 6: Authorized Personnel

    UTHORIZED PERSONNEL Extraordinary maintenance and repairs to the machine can only be carried out by compe- tent persons who are either employed, trained or authorized by CARTONI S.p.A. in writ- ing. Any information regarding repair/maintenance service stations can be obtained from CARTONI S.p.A.
  • Page 7 Steering P70 User’s Manual Page 6...

  • Page 8: Documentation

    In case of sale or transferring ownership of the Pedestal, the manual and warranty card must be handed over to the new operator or owner. The Pedestal designed and built by CARTONI S.p.A has passed the final test performed at the factory to verify functional features, dimensional characteristics and durability.

  • Page 9: Technical Specifications

    ECHNICAL SPECIFICATIONS Steering P70 User’s Manual Page 8...
  • Page 10 Drag control knob Steering tube Trim weight seat Safety hooking bar Safety latch Gauge G1/8 - 20 bar Intake valve Steering wheel support 4 bolt mounting plate Steering wheel lock lever Skid arm locking/unlocking lever Steering P70 User’s Manual Page 9...

  • Page 11: Data Table

    Skid leg radius 453 mm 17,8 in. Max working pressure 8,5 bar 123,3 psi Max safety valve pressure 9,0 bar 130,5 psi Operational temperature -20 °C / +60 °C -4 °F / +140 °F Steering P70 User’s Manual Page 10...

  • Page 12: Compatible Equipment

    2.2 C OMPATIBLE EQUIPMENT The equipment used with the STEERING P70 Pedestal should comply with the following characteristics:  Optimal weight (Camera + accessories + fluid Head): <55 kg;  Maximum weight (Camera + lens/accessories + fluid Head): 75 kg;...

  • Page 13: Usage

    If the storage area is dusty we advise to cover the pedestal with a protective cover. The Pedestal produces a very low level noise; anyway, the weighted equivalent acoustic pressure emitted by the Pedestal is below 70 dB (A). Steering P70 User’s Manual Page 12...

  • Page 14: Installation And Settings

    NSTALLATION AND SETTINGS Steering P70 User’s Manual Page 13...
  • Page 15 Prior to installation, please check the state of package for integrity on arrival, and also make sure that none of the components shows signs of impact. If any such damage oc- curs CARTONI S.p.A. should be informed immediately. If the product is to be forwarded elsewhere, it should be carefully packed and the greatest care should be taken not to damage any of the components.

  • Page 16: Setting The Pedestal

    Push down the red levers (32) to release the skid arms and rotate the two arms till the levers (32) click in place, locking the arms in completely opened position. Assemble the foot ring (16) screwing in the three knobs (A) under the skid (central part). Steering P70 User’s Manual Page 15...
  • Page 17 (15) should be disassembled, insert it in the fixed column (20), positioning the centering pin to match the hole in the column (see figure below), and lock the support assembly clamp (5). Steering P70 User’s Manual Page 16...
  • Page 18 Install the column in the skid as follows: Keep the column in vertical position and open towards external direction the three support struts (21). Lift the struts (21) to 45°. Steering P70 User’s Manual Page 17...
  • Page 19 (5) and (6) and verifying the correct position of the struts (21) and steering tube (23). Lock the clamps (6) (column-skid) and then (5) (struts-support) in sequence. Steering P70 User’s Manual Page 18...
  • Page 20 Assemble the steering wheel (2) to the column as follows: Place the steering wheel (2) on the steering wheel support (29), coupling the green mark on (2) with one of the four red marks on (29). Steering P70 User’s Manual Page 19...
  • Page 21 Insert the steering wheel lock lever (31) to avoid the steering wheel disconnection from the column; rotate the lever right with the red side towards the red mark on the steering wheel. While operating never unlock the steering wheel. Steering P70 User’s Manual Page 20...

  • Page 22: Mounting The Camera

    3.2 M OUNTING THE AMERA Lock the wheels by pushing the lock lever (9) on each wheel. Lower the column pushing it down and lock the safety latch (26) to the safety hooking bar (25). Steering P70 User’s Manual Page 21...

  • Page 23: Pressurizing The Pedestal And Balancing The Load

    Remove the air intake connection. Bleed the air excess, pushing the pin in the intake valve (28) until the Camera moves freely up and down through the entire range of the column stroke. The Camera is now balanced. Steering P70 User’s Manual Page 22...

  • Page 24: Trim Weights

    When not needed, the counterweights can be stored in dedicated spaces (14) on the skid. WARNING!! Before pressurizing the Pedestal it is necessary to unlock the column by releasing the safety latch (26) Steering P70 User’s Manual Page 23...

  • Page 25: Using The Pedestal

    In case one should need some resistance to the stroke, regulate the column damping by rotating the drag knob (22). The drag control knob (22) is not a lock. Whenever needed, lock the height of the column operating the stroke lock lever (4). Steering P70 User’s Manual Page 24...

  • Page 26: Cable Guards

    The steering rotation angle is the same for the steering wheel (2) and the three wheels (15): 90° rotation of the steering wheel will produce 90° rotation of the wheels. Use the steering wheel red mark (1) to memorize the wheel position. Steering P70 User’s Manual Page 25...

  • Page 27: Safety Precautions

    WARNING!! The Pedestal must be used according to the instructions indicated in this manual. Steering P70 User’s Manual Page 26...
  • Page 28 WARNING!! There is a potential risk of trapping your fingers between the internal transmissions of the gears under the steering wheel. When the movement is directly carried out by the operator. Steering P70 User’s Manual Page 27...

  • Page 29: Disassembling And Storage

    Depressurize the Pedestal till to 1.5/2.0 Bar (total bleeding is not compulsory). Open the safety latch (26) and push down the column to engage the safety latch (26) to the safety hooking bar (25). Remove the steering wheel (2) from the steering wheel support (29). Steering P70 User’s Manual Page 28...
  • Page 30 (32) click, locking the arms in completely closed position. Loosen the column from the skid unlocking the skid clamp (6). Vertically lift the column and extract it from the skid. Internally close the three support struts (21) along the column. Steering P70 User’s Manual Page 29...

  • Page 31: Service

    6.2 E XTRA MAINTENANCE AND SPARE PARTS Whatever extra maintenance requires to be carried out by CARTONI’s own technical ser- vicing staff or an authorized service station appointed by CARTONI S.p.A. Information on authorized service station staff can be obtained by contacting CARTONI S.p.A or www.cartoni.com.

  • Page 32: Wheel Exchange Recomendation

    All spare parts should be ordered from CARTONI S.p.A. which will either supply them di- rectly or indicate where they may be obtained. Remember that repairs should only be carried out by persons employed or authorized by CARTONI S.p.A. All warranty conditions are invalidated should any parts be different from those originally mounted on the Pedestal.

  • Page 33: Decommisioning

    WARNING!! The dismantling of the Pedestal at the end of its life must be carried out by competent and trained personnel. Steering P70 User’s Manual Page 32...
