AirCycler g2-k Installation Testing Manual

Ventilation Products
Testing the AirCycler® g2-k completed installation is an easy
two step process:
STEP 1
Test the FanConnect
STEP 2
Test thermostat, damper and furnace connection and
operation
a. With the thermostat off, turn on the FanConnect
switch.
b. Confirm the exhaust fan is running.
®
c. The AirCycler g2 display should show the
Exhaust fan is on and the OA damper is open.
d. Confirm the OA damper is open.
e. Turn off exhaust fan.
a. Make sure exhaust fan is off.
b. Turn thermostat FAN switch to ON.
®
c. Confirm AirCycler
damper open.
d. Confirm furnace fan is running.
e. Remover AirCycler
should shut off..
f. DONE! Replace AirCycler
NOTE: When using in SLAVE mode you will also see the EXH icon illuminated.
See reverse for troubleshooting tips and frequently asked questions
®
connection & operation
(tm)
STEP 1
STEP 2
g2 display show's FAN and OA
®
g2 from it's base. Furnace fan
®
g2 controller on it's base.

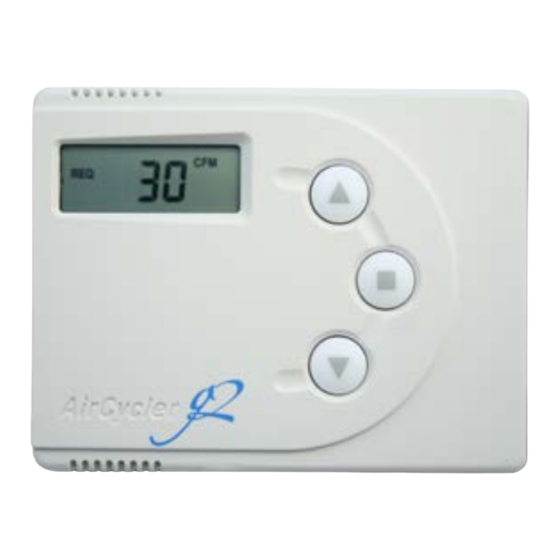

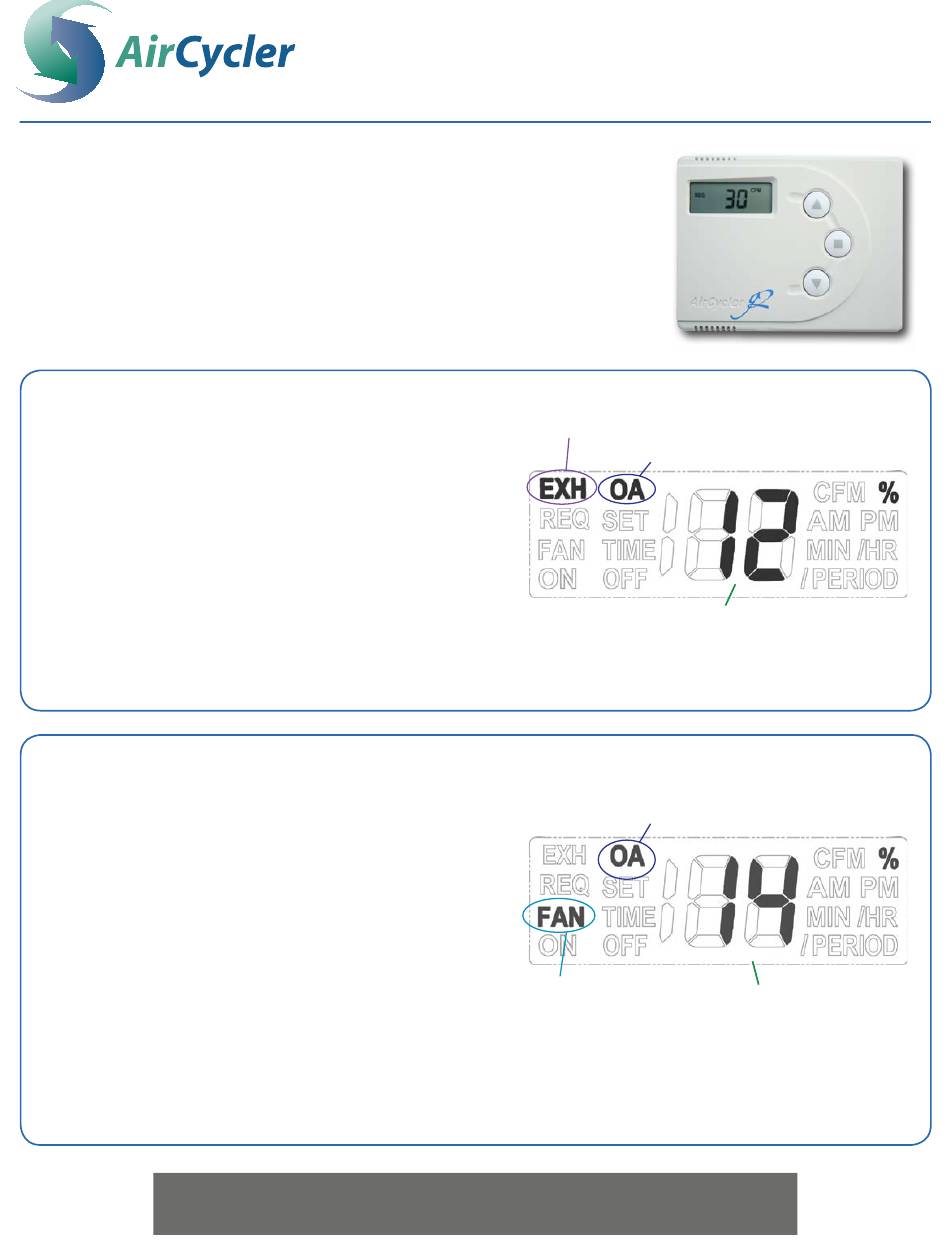

AirCycler® g2-k Installation Testing Guide
EXH - EXHAUST
FAN IS ON
VENTILATION COMPLETE
FAN ON FROM
THERMOSTAT
OA - FRESH AIR
DAMPER IS OPEN
PERCENTAGE OF
LCD DISPLAY
OA - FRESH AIR
DAMPER IS OPEN
PERCENTAGE OF
VENTILATION COMPLETE
LCD DISPLAY
