Quick Pairing Guide
12 S&C Instruction Sheet 461-521
STEP 3. Attach the S&C Magnet Tool (or other strong magnet) to the side of the TripSaver
II recloser with the green S&C logo. See Figure 9. This will turn on
communications inside the TripSaver II recloser allowing it to be paired with
the communications gateway.

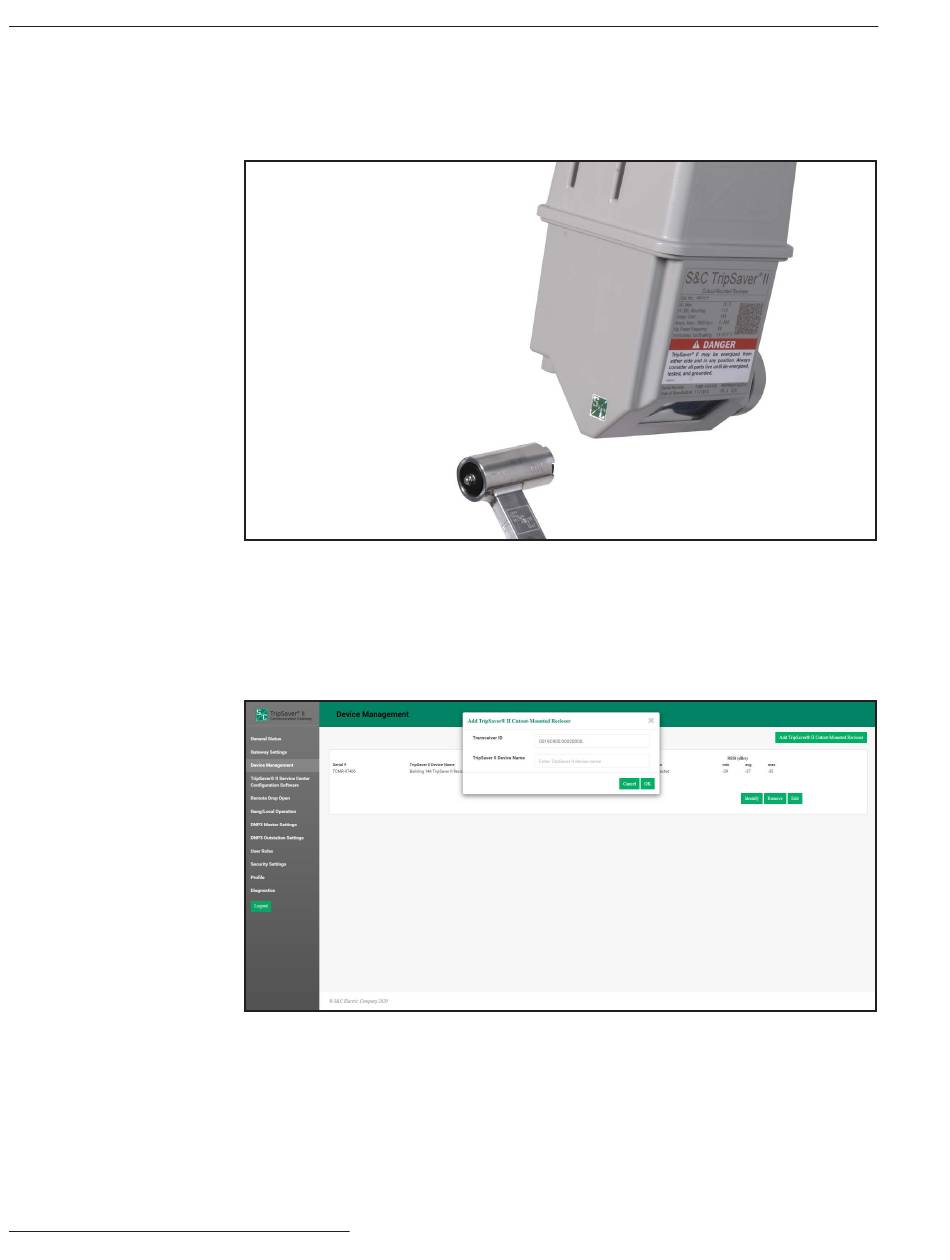

Figure 9. Attach the magnet tool to the green logo.
STEP 4. Navigate to the Device Management screen. See Figure 10.
STEP 5. Click on the Add TripSaver II Cutout-Mounted Recloser button. A pop-up
menu will appear.
Figure 10. The Device Management screen.
