DIRECTIVE 89/336/EEC, 98/37/EC, 2000/14/EC, 2002/88/EC, 2002/44/EC EN ISO 11806 : 1997 The products referred are : DESIGNATION : RECIPROCATORS MODELS : SGCZ2600DL, SGCZ2600DW SERIAL NUMBERS : SGCZ2600DL 100101 and up SGCZ2600DW 50100101 and up : Specification sheet : Inspection standard 1st April 2007...

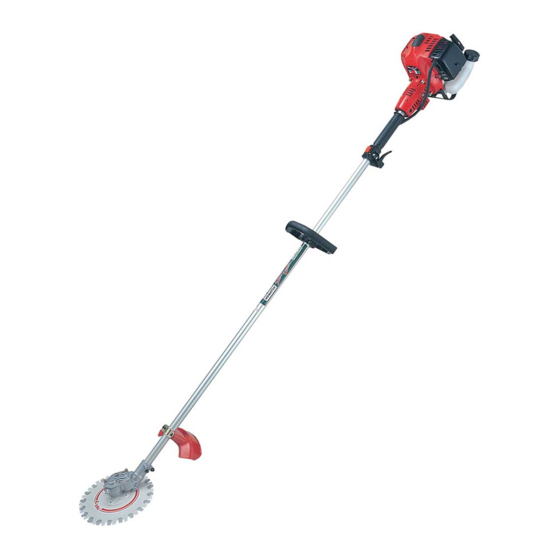

SGCZ2600DL 1950 x 430 x 290 Air-cooled 2-stroke gasoline 1.2Hp (0.9kW) at 7500min Mixture (Gasoline 50 : Oil 1) (when using ZENOAH genuine oil) Walbro Diaphragm type Centrifugal clutch, Rigid drive shaft Never modify your machine. We won’t warrant the machine, if you use the remodeled reciprocation or if you don’t ob-...
2. Never use the product, a. when the ground is slippery or when you can’t maintain a steady posture. SGCZ2600DL/SGCZ2600DW b. At night, at times of heavy fog, or at any other times when your field of vision might be...
Page 6
If it continues to rotate even after the throttle has been moved fully back, turn off the engine and take the unit to your authorized ZENOAH servic- ing dealer for repair. USING THE PRODUCT IMPORTANT Cut only materials recommended by the manufacturer.
Page 7
SGCZ2600DL/SGCZ2600DW HANDLING FUEL 1. The engine of the ZENOAH prod- uct is designed to run on a mixed fuel, which contains highly flam- mable gasoline. Never store cans of fuel or refill the tank of the unit...
2. Using attached four bolts, secure the connection firmly with equal force (Torque: 25in-lbs)(Torque: 2.8 N.m.). Bolt INSTALLING HANDLE <SGCZ2600DL> • Mount the handle to the shaft tube and clamp it at a location that is comfortable to you. About 48cm INSTALLING HANDLE <SGCZ2600DW>...
• The Zenoah engines are lubricated by oil specially formulated for air-cooled 2-cycle gasoline engine use. If Zenoah oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use (JASO FC GRADE OIL or ISO EGC GRADE).
3. Move the choke lever to the closed position. choke lever [SGCZ2600DL] (1) Stop switch 4. [SGCZ2600DL] Set the stop switch to the “-” posi- tion. Set the throttle trigger to the start position (1 → 2 → 3). Place the unit on a flat, firm place.
Page 11
If you felt such vibra- tion, use a higher speed range. c) Though the blades are made of steel harder than con- ventional metal blades, continuous cutting in soil will accelerate wear. (DL: Single strap) SGCZ2600DL/SGCZ2600DW (DW: Double strap) GB-11...
Page 12
SGCZ2600DL/SGCZ2600DW 8. Operation CUTTING WORK This machine does cutting not by a rotary cutter like con- ventional trimmers but by a pair of special blades that moves round within a limited angle at a speed of ap- proximately 1/30 of conventional trimmers. This unique mechanism has brought you many benefits as follow- ing;...
2. Loosen 4 screws and remove the lower blade (2) 3. Loosen 4 screws and remove the upper blade (3). To install blades: The upper and lower blades are interchangeable. When fastening the blade mounting screws, torque them uni- formly. SGCZ2600DL/SGCZ2600DW Note after after replace, if necessary replace carburetor if necessary GAP: .025 in (0.6 ~ 0.7 mm)
Page 14
SGCZ2600DL/SGCZ2600DW 9. Maintenance WARNING Make sure that the engine has stopped and is cool before performing any service to the machine. Con- tact with moving cutting head or hot muffler may re- sult in a personal injury. AIR FILTER • The air filter, if clogged, will reduce the engine perfor- mance.
Store the unit indoor taking necessary measures for rust prevention. 11. Disposal Cylinder When disposing your machine, fuel or oil for the machine, be sure to allow your local regulations. SGCZ2600DL/SGCZ2600DW GB-15...
(exhaust port) → carbon is built-up air cleaner cylinder fin, fan cover When your unit seems to need further service, please consult with our ZENOAH service shop in your area. Limited warranty Should any failure occur on the product under normal oper-...
