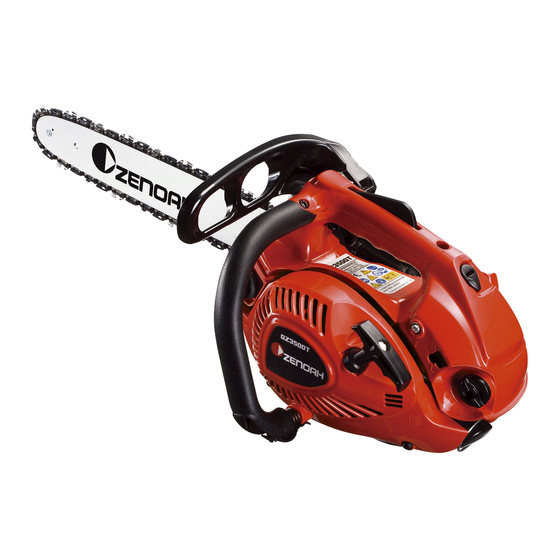

  • Page 1 GZ3500T 848CE093A0 (807) OWNER’S MANUAL CHAIN SAW GZ3500T GB-1...

  • Page 2: Warnings In The Manual

    GZ3500T SAFETY FIRST Instructions contained in warnings within this manual marked with a taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them without fail.

  • Page 3: Table Of Contents

    DECLARATION OF CONFORMITY TO MACHINES DIRECTIVE (Directive 98/37/EC, 89/336/EEC) and to the regulations governing transposition Internal control production MANUFACTURER : Husqvarna Zenoah Co., Ltd. No. 9, 1-Chome MINAMIDAI, KAWAGOE City SAITAMA, JAPAN DECLARES THAT THE DESIGN OF THE MACHINE DESCRIBED BELOW :...

  • Page 4: For Safe Operation

    GZ3500T 1. For safe operation WARNING This chainsaw has been especially designed for tree maintenance and should therefore only be used by trained operators when working on trees. 1. Never operate a chain saw when you are fatigued, ill, or upset, or under the...

  • Page 5: Kickback Safety Precautions For Chain Saw Users

    • giving up or cutting down on smoking because smoking reduces blood flow; and massaging and exercising your fingers DISPOSAL When disposing your machine, fuel or oil for the ma- chine, be sure to allow your local regulations. GZ3500T GB-5...

  • Page 6: Working With Tree Service Chain-Saws From A Rope And Harness

    GZ3500T WORKING WITH TREE SERVICE CHAIN-SAWS FROM A ROPE AND HARNESS This chapter sets out working practices to reduce the risk of injury from tree service chainsaws when working at height from a rope and harness. While it may form the basis of guidance and training literature, it should not be regarded as a substitute for formal training.
  • Page 7 Whether a handsaw or a chainsaw is used to free a stuck saw, the release cuts should always be outboard (to- ward the tips of the branch), in order to prevent the saw being taken with the section and further complicating the situation. GZ3500T GB-7...

  • Page 8: Symbols On The Machine

    GZ3500T 2. Symbols on the Machine For safe operation and maintenance, symbols are carved in relief on the machine. WARNING According to these indications, please be careful not to make any mistake. The port to refuel “MIX GASOLINE” Position: Recoil case (in front of the fuel cap)

  • Page 9: Installing Guide Bar And Saw Chain

    A new chain will expand its length in the beginning of use. Check and readjust the tension frequently as a loose chain can easily derail or cause rapid wear of itseif and the guide bar. GZ3500T Plug wrench Plug wrench Screwdriver for...

  • Page 10: Fuel And Chain Oil

    • The Zenoah engines are lubricated by oil specially formulated for air-cooled 2-cycle gasoline engine use. If Zenoah oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use (JASO FC GRADE OIL or ISO EGC GRADE).

  • Page 11: Operating The Engine

    Before adjusting the carburetor, make sure that the pro- vided air/fuel filters are clean and fresh and the fuel prop- erly mixed. When adjusting, take the following steps: NOTE Be sure to adjust the carburetor with the bar chain at- tached. GZ3500T GB-11...

  • Page 12: Chain Brake

    GZ3500T 1. H and L needles are restricted within the number of turn as shown below. H needle : -1/4 L needle : -1/4 2. Start the engine and allow it to warm up in low speed for a few minutes.
  • Page 13 Cut up from the bottom, finish down from the top. WARNING • Do not use an unstable foothold or ladder. • Do not overreach. • Do not cut above shoulder height. • Always use both your hands to hold the saw. GZ3500T GB-13...

  • Page 14: Maintenance

    GZ3500T 7. Maintenance WARNING Before cleaning, the inspecting or repairing the unit, make sure that engine has stopped and is cool. Disconnect the spark plug to prevent accidental starting. ■ MAINTENANCE AFTER EACH USE 1. Air filter Loosen the knob and remove the air cleaner cover. Take off the filter elements and tap off attached sawdust.

  • Page 15: Maintenance Of Saw Chain And Guide Bar

    Keep the file position as illustrated. After each cutter has been filed, check the depth gauge and file it to the proper level as illustrated. Appropriate gauge checker Make the shoulder round .025″ (0.64 mm) Depth gauge standard GZ3500T GB-15...

  • Page 16: Troubleshooting Guide

    Such a bar needs to be corrected or replaced. Ruler No gap Chain tilts WARNING: This saw is equipped with one of the following low kickback bar/chain combinations: Zenoah Part Number Bar Size Guide Bar Saw Chain 848-CB1-2G20 360652211(91VG45E) 848-CB2-4G30...

  • Page 17: Specifications

    11. Specifications Power unit: Displacement (cm ): ... 35.2 Fuel: ... Mixture (Gasoline 50 : Two-cycle oil 1) (when using ZENOAH genuine oil) Fuel tank capacity (cm ): ... 245 Chain oil: ... Motor oil SAE# 10W-30 Oil tank capacity (cm ): ...

  • Page 18: Limited Warranty

    30 days if used for rental purpose) from the date of initial purchase. THE PURCHASER SHALL BEAR COSTS OF TRANS- PORTING THE UNIT TO AND FROM THE ZENOAH DEALER. THE PURCHASER SHALL NOT BE CHARGED FOR DI- AGNOSTIC LABOR WHICH LEADS TO THE DETERMI-...
