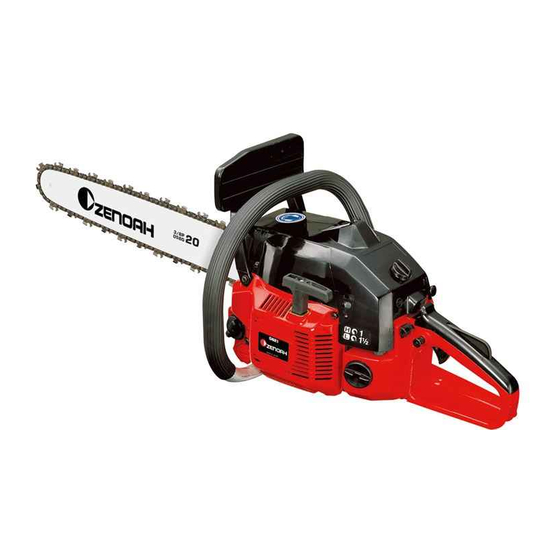

- Page 1 CHAIN SAW G6200 848C9F93A0 (807) OWNER’S MANUAL G6200 GB-1...
-
Page 2: Explanation Of Symbols And Safety Warnings
G6200 EXPLANATION OF SYMBOLS AND SAFETY WARNINGS Read operator's instruction book before operating this machine. Read, understand and follow all warnings. MODEL SOUND LEVEL EN 608 - ISO 7182 G6200 99.3 dB(A) APPROVAL NUMBER OF CE EXHAUST EMISSION REGULATION (2002/88/EC) -
Page 3: Table Of Contents
DECLARATION OF CONFORMITY TO MACHINES DIRECTIVE (Directive 98/37/EC, 89/336/EEC) and to the regulations governing transposition Internal control production MANUFACTURER : Husqvarna Zenoah Co., Ltd. No. 9, 1-Chome MINAMIDAI, KAWAGOE City SAITAMA, JAPAN DECLARES THAT THE DESIGN OF THE MACHINE DESCRIBED BELOW :... -
Page 4: For Safe Operation
G6200 1. For safe operation 1. Never operate a chain saw when you are fatigued, ill, or upset, or under the influence of medication that may make you drowsy, or if you are under the influence of alcohol or drugs. -
Page 5: Kickback Safety Precautions For Chain Saw Users
• giving up or cutting down on smoking because smoking reduces blood flow; and massaging and exercising your fingers DISPOSAL When disposing your machine, fuel or oil for the ma- chine, be sure to allow your local regulations. G6200 GB-5... -
Page 6: Explanation Of Symbols On The Machine
G6200 2. Explanation of Symbols on the Machine WARNING • For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications, please be careful not to make any mistake. The port to refuel “MIX GASOLINE”... -
Page 7: Installing Guide Bar And Saw Chain
A new chain will expand its length in the beginning of use. Check and readjust the tension frequently as a loose chain can easily derail or cause rapid wear of itself and the guide bar. G6200 (1) Loosen (2) Tighten GB-7... -
Page 8: Fuel And Chain Oil
• The Zenoah engines are lubricated by oil specially formulated for air-cooled 2-cycle gasoline engine use. If Zenoah oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use (JASO FC GRADE OIL or ISO EGC GRADE). -
Page 9: Operating The Engine
When adjusting, take the following steps: NOTE • Be sure to adjust the carburetor with the bar chain attached. Chain oil (1) Adjuster knob (1) L needle (2) H needle (3) Idle adjusting screw G6200 GB-9... -
Page 10: Chain Brake
G6200 1. H and L needles are restricted within the number of turn as shown below. H needle : L needle : 2. Start the engine and allow it to warm up in low speed for a few minutes. 3. Turn the idle adjusting screw (T) counterclockwise so that the saw chain does not turn. -
Page 11: Sawing
Before starting work, check the direction of bending force inside the log to be cut. Always finish cutting from the opposite side of the bending direction to prevent the guide bar from being caught in the cut. G6200 Felling cut GB-11... -
Page 12: Maintenance
G6200 A log lying on the ground Saw down halfway, then roll the log over and cut from the opposite side. A log hanging off the ground In area A, saw up from the bottom one-third and finish by sawing down from the top. In area B, saw down from the top one-third and finish by sawing up from the bot- tom. -
Page 13: Periodical Service Points
Replace if adhered part is peeled or crack is observed on the rubber part. Replace if the inside of the rear damper metal has been beaten by the stopper bolt and the clearance of the metal increased. (1) Weight (2) Filter (3) Strainer (4) Retainer G6200 BPMR7A GB-13... -
Page 14: Maintenance Of Saw Chain And Guide Bar
Such a bar needs to be corrected or replaced. Ruler No gap Chain tilts WARNING • This saw is equipped with one of the following low kickback bar/chain combinations: Bar Size Guide Bar 3670-52112 848CC3LG60 (73LGX) 3673-52113 848CC3LG66 (73LGX) 3674-52113 848CC3LG72 (73LGX) Zenoah Part Number Saw Chain... -
Page 15: Troubleshooting Guide
11. Specifications Power unit: Displacement (cm ): ... 62.0 Fuel: ... Mixture (Gasoline 50 : Two-cycle oil 1) (when using ZENOAH genuine oil) Fuel tank capacity (cm ): ... 670 Chain oil: ... Motor oil SAE# 10W-30 Oil tank capacity (cm ): ... -
Page 16: Limited Warranty
30 days if used for rental purpose) from the date of initial purchase. THE PURCHASER SHALL BEAR COSTS OF TRANS- PORTING THE UNIT TO AND FROM THE ZENOAH DEALER. THE PURCHASER SHALL NOT BE CHARGED FOR DI- AGNOSTIC LABOR WHICH LEADS TO THE DETERMI-...
