PARTS LIST
NOTE :
1. Use ZENOAH genuine parts specified in the parts list for repair and/or replacement.
2. ZENOAH does not warrant the machines, those which have been damaged by the use of any parts
other than those specified by the company.
3. When placing orders of parts for repair and/or replacement, check if the model name and the serial
number are suitable to those specified in the parts list, then use parts number described in the
parts list.
4. The contents described in the parts list may change due to improvement.
5. The parts for the machine shall be supplied within ten (10) years after the machine is discontinued.
[It is possible that some specific parts may be subject to change of their delivery term and list price
within the limit of ten (10) years after the machine is discontinued. And it is also possible that some
parts may be available even after the limit of ten (10) years.]
APPLICABLE SERIAL NUMBERS : 800001 and up

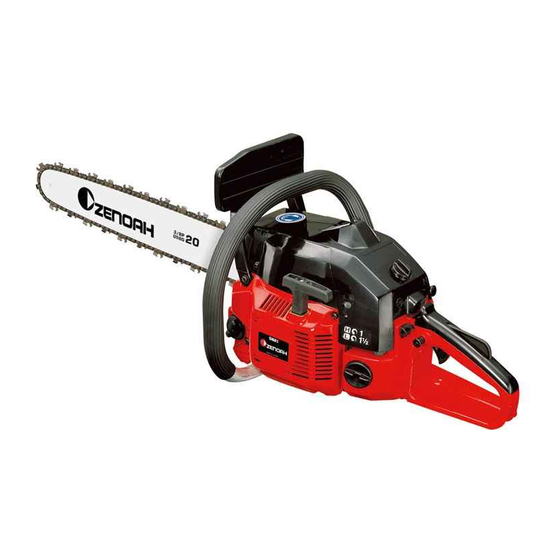

CHAIN SAW
G6200
848C9F93B0 (805)
May 2008
Advertisement
Related Manuals for Zenoah CHAIN SAW G6200
Summary of Contents for Zenoah CHAIN SAW G6200
-
Page 1: Parts List
NOTE : 1. Use ZENOAH genuine parts specified in the parts list for repair and/or replacement. 2. ZENOAH does not warrant the machines, those which have been damaged by the use of any parts other than those specified by the company. - Page 2 G6200 Fig.1 POWER UNIT...
- Page 3 Fig.1 POWER UNIT Key# PART NUMBER DESCRIPTION 1 848C9712A0 CYLINDER 3356-12141 GROMMET 3 848C9014B3 GASKET, insulator 2618-14120 INSULATOR 5 848C9014C2 GASKET, carburetor 2616-14211 GASKET, cylinder base 3310-12281 BOLT 2610-15111 MUFFLER 3356-15123 STAY 3356-15210 GASKET, muffler 3356-15220 BOLT 2850-15230 NUT 848C902104 CRANKCASE ASSY ✩...
- Page 4 G6200 Fig.2 POWER UNIT...
- Page 5 Fig.2 POWER UNIT Key# PART NUMBER DESCRIPTION 2618-41112 PISTON 2618-41210 RING, piston 3366-41310 PIN, piston 3350-41320 SNAP RING 1400-41410 NEEDLE BEARING 2616-41510 THRUST WASHER 2616-42007 CRANKSHAFT COMP. 1300-42410 SHIM 1000-43240 KEY 0290-21025 WASHER 1300-43231 NUT 3350-51110 DRUM, clutch 3360-51120 RIM, sprocket 2616-51202 CLUTCH ASSY 2616-51210 PLATE, clutch ✩...
- Page 6 G6200 Fig.3 CARBURETOR COMPONENTS Key# PART NUMBER DESCRIPTION 848C928102 CARBURETOR ASSY BODY ASSY 3306-81380 SCREEN, inlet 3350-81130 COVER, pump 3350-81140 COVER, diaphragm 3366-81151 SHAFT ASSY, throttle 3366-81340 VALVE, throttle 3356-81171 SHAFT ASSY, choke 2629-81180 VALVE, choke 1488-81190 STOP, throttle 3356-81310 VALVE, inlet 3350-81220 BALL, friction 3350-81230 GASKET, pump 3350-81240 GASKET, diaphragm...
- Page 7 Fig.4 ACCESSORIES Key# PART NUMBER DESCRIPTION 3356-97110 PROTECTOR, guide bar 3665-97110 PROTECTOR, guide bar 3670-52112 BAR 16", sprocket nose 3673-52113 BAR 18", sprocket nose 3674-52113 BAR 20", sprocket nose 848CC3LG60 CHAIN, for 16" bar 848CC3LG66 CHAIN, for 18" bar 848CC3LG72 CHAIN, for 20" bar 3320-91140 PLUG WRENCH 2670-91150 SCREWDRIVER 2616-96000 SPECIAL TOOL KIT...
